915162 (ZT XL 48) - Gravely 48" Zero-Turn Mower, Kawasaki FR (SN: 000101 - 009999) Transaxle, Dump Valves and Rear Wheels Parts Diagram

48" Zero-Turn Mower, Kawasaki FR

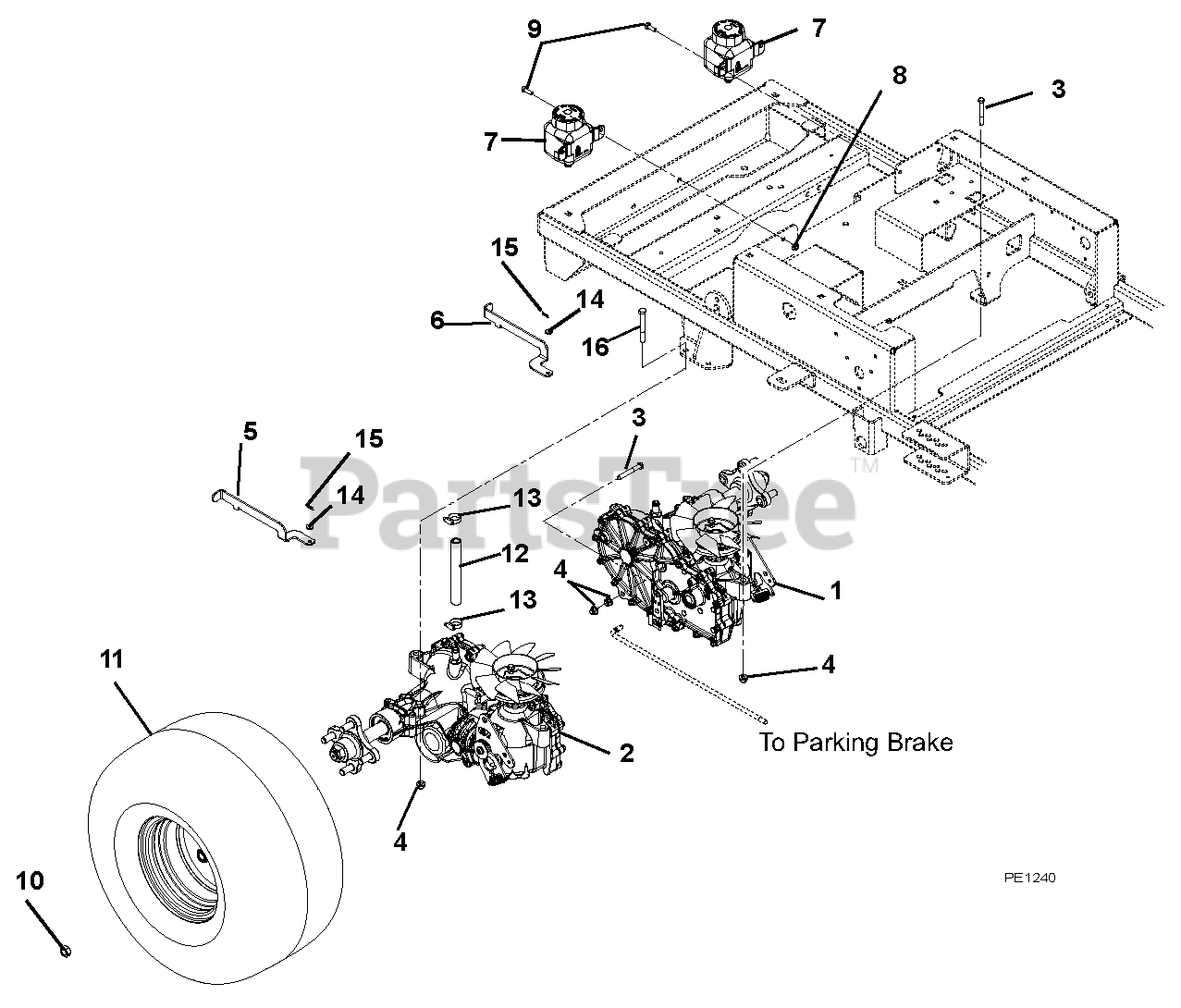

Transaxle, Dump Valves and Rear Wheels Parts Diagram

  • Title

1

Gravely 03265700

TRANSAXLE, ZT2800 LH
(Superseded to 04828600)

$1293.99

$

Usually ships in 4-12 days

0

2

Gravely 03265800

TRANSAXLE, ZT2800 RH
(Superseded to 04828500)

$1293.99

$

Usually ships in 4-12 days

0

3

Gravely 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 02996351

DUMP VALVE, RH

$19.99

$

Usually ships in 4-12 days

0

6

Gravely 02992151

DUMP VALVE, LH

$21.99

$

Usually ships in 4-12 days

0

7

Gravely 02970200

TANK, EXPANSION

$34.99

$

In Stock, only 2 left!

0

8

Gravely 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06517600

WHEEL NUT .500-20 YZ
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07100513

TIRE/WHEEL ASSY, 20X10.0-8 CTR

$182.99

$

Usually ships in 4-12 days

0

Gravely 07100737

TIRE/WHEEL ASM, 20X8.0-8 (SQ)

$136.99

$

Usually ships in 4-12 days

0

12

Gravely 07500039

HOSE, OIL RESERVOIR

$6.99

$

Usually ships in 4-12 days

0

13

Gravely 06923500

CLAMP,.88 DIA. HOSE

$1.99

$

In Stock, Qty 6

0

14

Gravely 06439500

WSHR-FL-STL .265X.50X.087YWZC
(Superseded to 06401120)

$1.49

$

Usually ships in 4-12 days

0

15

Gravely 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 15

0

16

Gravely 05960600

@BLT-HEX .31-18X2.75 GR5 YWZC
(Superseded to 05901807)

$2.49

$

In Stock, only 2 left!

0
