915162 (ZT XL 48) - Gravely 48" Zero-Turn Mower, Kawasaki FR (SN: 000101 - 009999) Steering Controls Parts Diagram

48" Zero-Turn Mower, Kawasaki FR

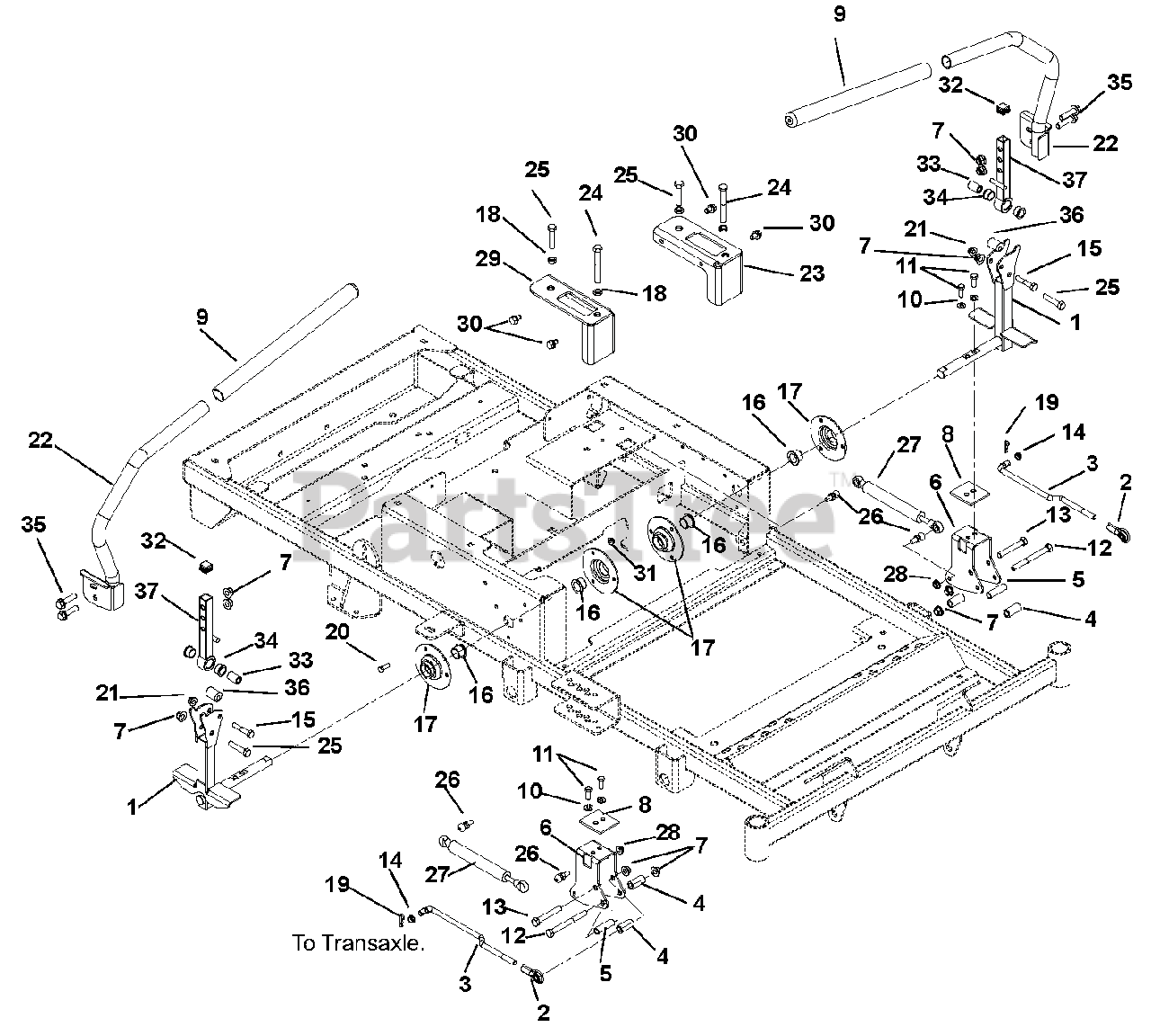

Steering Controls Parts Diagram

  • Title

1

Gravely 04220100

WMT, CONTROL ARM
(Superseded to 04220167)

$122.99

$

Usually ships in 4-12 days

0

2

Gravely 03563100

ROD END, .38 RH

$15.99

$

In Stock, only 2 left!

0

3

Gravely 02956000

LINK, TRANSMISSION

$148.99

$

Usually ships in 4-12 days

0

4

Gravely 00363800

BSHG, SPCR .390X.625X1.25 PM

$18.99

$

In Stock, only 1 left!

0

5

Gravely 03266400

SPACER, STEERING

$20.99

$

Usually ships in 4-12 days

0

6

Gravely 00952300

BRKT, STEERING

$51.99

$

Usually ships in 4-12 days

0

7

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 03262051

PLATE, STEERING REINFORCING

$

$

Not available

9

Gravely 04257400

GRIP, HANDLEBAR 15" FOAM

$15.99

$

In Stock, only 2 left!

0

10

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 05901311

BLT-HEX .31-18X1.00 GR8 YWZC
(Superseded to 05901802)

$1.49

$

In Stock, Qty 6

0

12

Gravely 05959500

@BLT-HEX .38-16X3.75 GR5 YWZC
(Superseded to 05902025)

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 05500020

BUSHING, POLYLINER-.38 SNAPIN

$2.99

$

In Stock, Qty 20+

0

15

Gravely 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

16

Gravely 05503900

BSHG-FLG .750X1.000X.625X1.250

$12.99

$

In Stock, Qty 6

0

17

Gravely 03207600

BEARING FLANGE

$

$

Not available

18

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 04219451

WMT, STEERING HANDLE RH

$83.99

$

Usually ships in 4-12 days

0

Gravely 04219551

WMT, STEERING HANDLE LH

$96.99

$

Usually ships in 4-12 days

0

23

Gravely 02981451

BRACKET, LH SPEED CONTROL

$90.99

$

Usually ships in 4-12 days

0

24

Gravely 05958300

BLT-HEX .38-16X3.00 GR5 FTH YZ
(Superseded to 05901815)

$3.49

$

In Stock, only 1 left!

0

25

Gravely 05974000

BLT-HEX .375-16X1.750 FTD YWZC
(Superseded to 05901612)

$2.99

$

In Stock, only 1 left!

0

26

Gravely 03652200

STUD- BALL

$3.49

$

In Stock, only 3 left!

0

27

Gravely 03914200

DAMPER, CONTROL

$56.99

$

In Stock, only 2 left!

0

28

Gravely 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 02981351

BRACKET, RH SPEED CONTROL

$77.99

$

Usually ships in 4-12 days

0

30

Gravely 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 07500131

CAP PLUG, SQ 3/4-14-20 RIBBED

$

$

Not available

33

Gravely 04193500

SPACER, .375X.625X.970 (PM)

Note: (PM)

$1.49

$

In Stock, only 2 left!

0

34

Gravely 05501017

BSHG-FLG, .625X.75X.450X.875

$7.99

$

In Stock, only 3 left!

0

35

Gravely 07001633

BOLT, SERRATED HEAD .38-16X1.5

$

$

Not available

36

Gravely 05500932

BSHG, ECCENTRIC .328X.750X.970

$1.49

$

In Stock, Qty 20+

0

37

Gravely 04192900

WMT, UPPER CONTROL ARM

$

$

Not available
