915162 (ZT XL 48) - Gravely 48" Zero-Turn Mower, Kawasaki FR (SN: 000101 - 009999) Mower Deck Lift Parts Diagram

48" Zero-Turn Mower, Kawasaki FR

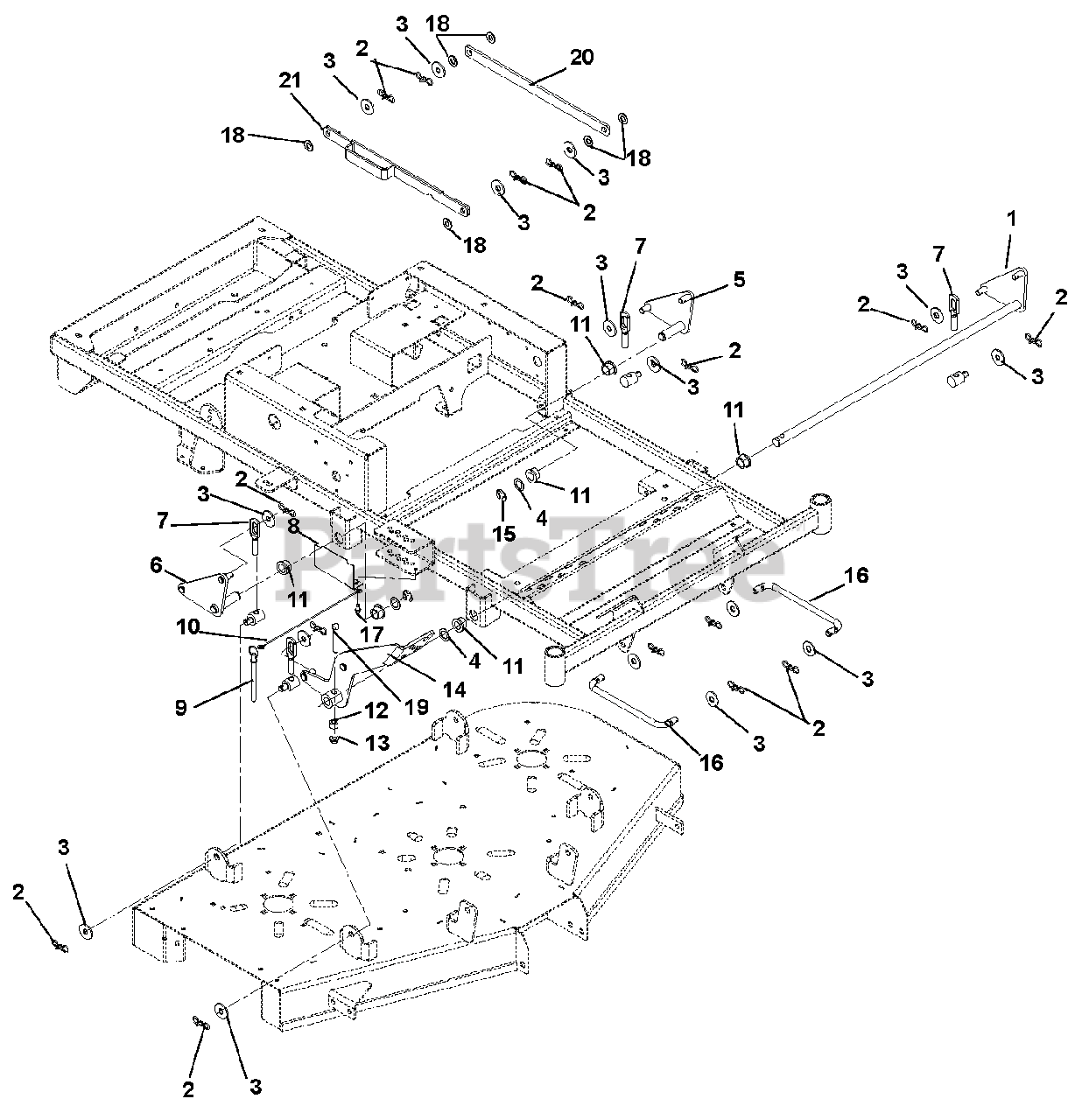

Mower Deck Lift Parts Diagram

  • Title

1

Gravely 02969200

WMT-DECK PIVOT FRONT

$102.99

$

In Stock, only 1 left!

0

2

Gravely 06700201

PIN,BOW TIE LOCKING .091X1.875
(Superseded to 06700220)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

4

Gravely 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 02969400

WMT-DECK PIVOT ZTXL REAR LH

$155.99

$

Usually ships in 4-12 days

0

6

Gravely 02969300

WMT-DECK PIVOT ZTXL REAR RH

$

$

Not available

7

Gravely 03272700

ASM, DECK LINK

$85.99

$

In Stock, Qty 5

0

8

Gravely 02972851

GUARD, DECK LIFT

$

$

Not available

9

Gravely 03284200

PIN, SPRING BALL .375 X 3.75

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 06900317

CABLE, 12.0 LANYARD, NYLON

$3.49

$

In Stock, only 2 left!

0

11

Gravely 05503900

BSHG-FLG .750X1.000X.625X1.250

$12.99

$

In Stock, Qty 6

0

12

Gravely 08553700

BSHG-SLV .391X.688X.52 PM

$5.99

$

In Stock, only 1 left!

0

13

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 02969151

WMT-ZTXL FOOT PEDAL

$126.99

$

Usually ships in 4-12 days

0

15

Gravely 05707400

RG-RTNG-EXT .750X.050

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 02004500

LINK, DRAG

$17.99

$

In Stock, only 2 left!

0

17

Gravely 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 20+

0

19

Gravely 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

20

Gravely 02973051

LINK, LIFT

$25.99

$

Usually ships in 4-12 days

0

21

Gravely 02985700

WMT, LIFT LINK

$

$

Not available
