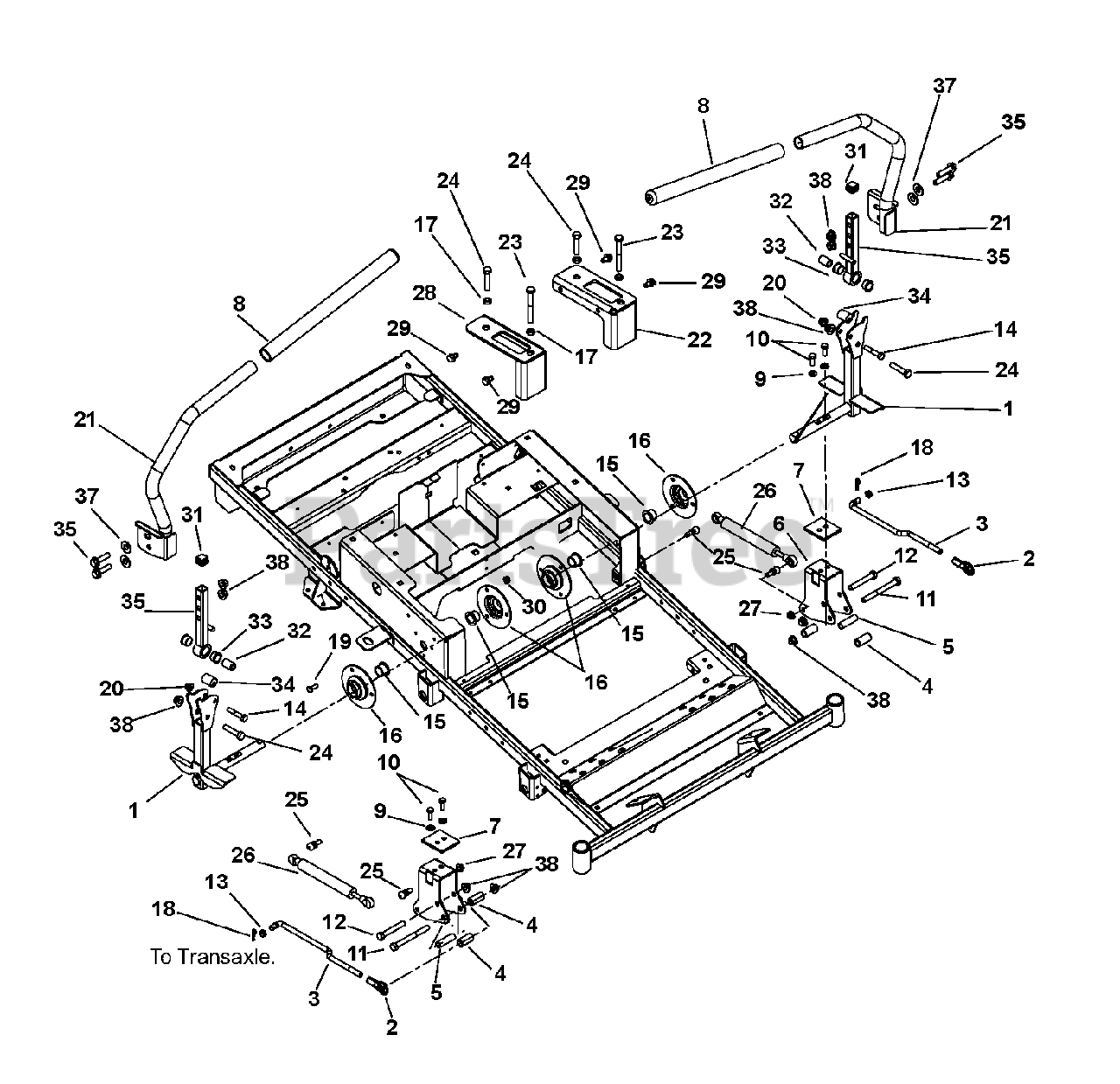

915160 (ZT XL 42) - Gravely 42" Zero-Turn Mower, Kawasaki FR (SN: 021000 - 029999) Steering Controls Parts Diagram

42" Zero-Turn Mower, Kawasaki FR

Steering Controls Parts Diagram

  • Title

1

Gravely 04220100

Weldment, Control Arm
(Superseded to 04220167)

$122.99

$

Usually ships in 4-12 days

0

2

Gravely 03563100

Rod End, .38 Right Hand

$15.99

$

In Stock, only 2 left!

0

3

Gravely 02956000

Link, Transmission

$148.99

$

Usually ships in 4-12 days

0

4

Gravely 00363800

Bushing, Spacer .390 x .625 x 1.25 Promaster

$18.99

$

In Stock, only 1 left!

0

5

Gravely 03266400

Spacer, Steering

$20.99

$

Usually ships in 4-12 days

0

6

Gravely 00952300

Bracket, Steering

$51.99

$

Usually ships in 4-12 days

0

7

Gravely 03262051

Plate, Steering Reinforcing

$

$

Not available

8

Gravely 04257400

Grip, Handlebar 15" Foam

$15.99

$

In Stock, only 2 left!

0

9

Gravely 06308600

Washer, Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 05901311

Bolt, Hex .31-18 x 1.00 Grade 8
(Superseded to 05901802)

$1.49

$

In Stock, Qty 6

0

11

Gravely 05959500

Bolt, Hex .38-16 x 3.75 Grade 5
(Superseded to 05902025)

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 05958400

Bolt, Hex .38-16 x 2.50 Grade 5
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 05500020

Bushing, Polyliner 322-C

$2.99

$

In Stock, Qty 20+

0

14

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

15

Gravely 05503900

Bushing, Flange .750 x 1.000 x .625 x 1.250

$12.99

$

In Stock, Qty 6

0

16

Gravely 03207600

Bearing Flange

$

$

Not available

17

Gravely 06535900

Nut, Hex Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06713500

Pin, Hair Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 04219451

Weldment, Steering Handle Right Hand

$83.99

$

Usually ships in 4-12 days

0

Gravely 04219551

Weldment, Steering Handle Left Hand

$96.99

$

Usually ships in 4-12 days

0

22

Gravely 02981451

Bracket, Left Hand Speed Control

$90.99

$

Usually ships in 4-12 days

0

23

Gravely 05958300

Bolt, Hex .38-16 x 3.00 Grade 5
(Superseded to 05901815)

$3.49

$

In Stock, only 1 left!

0

24

Gravely 05974000

Bolt, Hex .375-16 x 1.750 Full Thread
(Superseded to 05901612)

$2.99

$

In Stock, only 1 left!

0

25

Gravely 03652200

Stud, Ball

$3.49

$

In Stock, only 3 left!

0

26

Gravely 03914200

Damper, Control

$56.99

$

In Stock, only 2 left!

0

27

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 02981351

Bracket, Right Hand Speed Control

$77.99

$

Usually ships in 4-12 days

0

29

Gravely 07411500

Screw, Tapping .31-18 x .50 Hex Washer Head
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 07500131

Cap Plug, Square .75-14-20 Ribbed

$

$

Not available

32

Gravely 04193500

Spacer, .375 x .625 x .970 (PM)

Note: (PM)

$1.49

$

In Stock, only 2 left!

0

33

Gravely 05501017

Bushing, Flange, .625 x .750 x .450 x .875

$7.99

$

In Stock, only 3 left!

0

34

Gravely 05500932

Bushing, Eccentric .31 x .75 x .97

$1.49

$

In Stock, Qty 20+

0

35

Gravely 04192900

Weldment, Upper Control Arm

$

$

Not available

36

Gravely 07050000

Bolt, Serrated Hex Flange Washer Head .375-16 x 1.25
(Superseded to 07001816)

$3.99

$

Usually ships in 4-12 days

0

37

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 06537200

Nut, Locking Center Jam .375-16
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+
