915160 (ZT XL 42) - Gravely 42" Zero-Turn Mower, Kawasaki FR (SN: 021000 - 029999) Engine, Exhaust, Belts and Idlers Parts Diagram

42" Zero-Turn Mower, Kawasaki FR

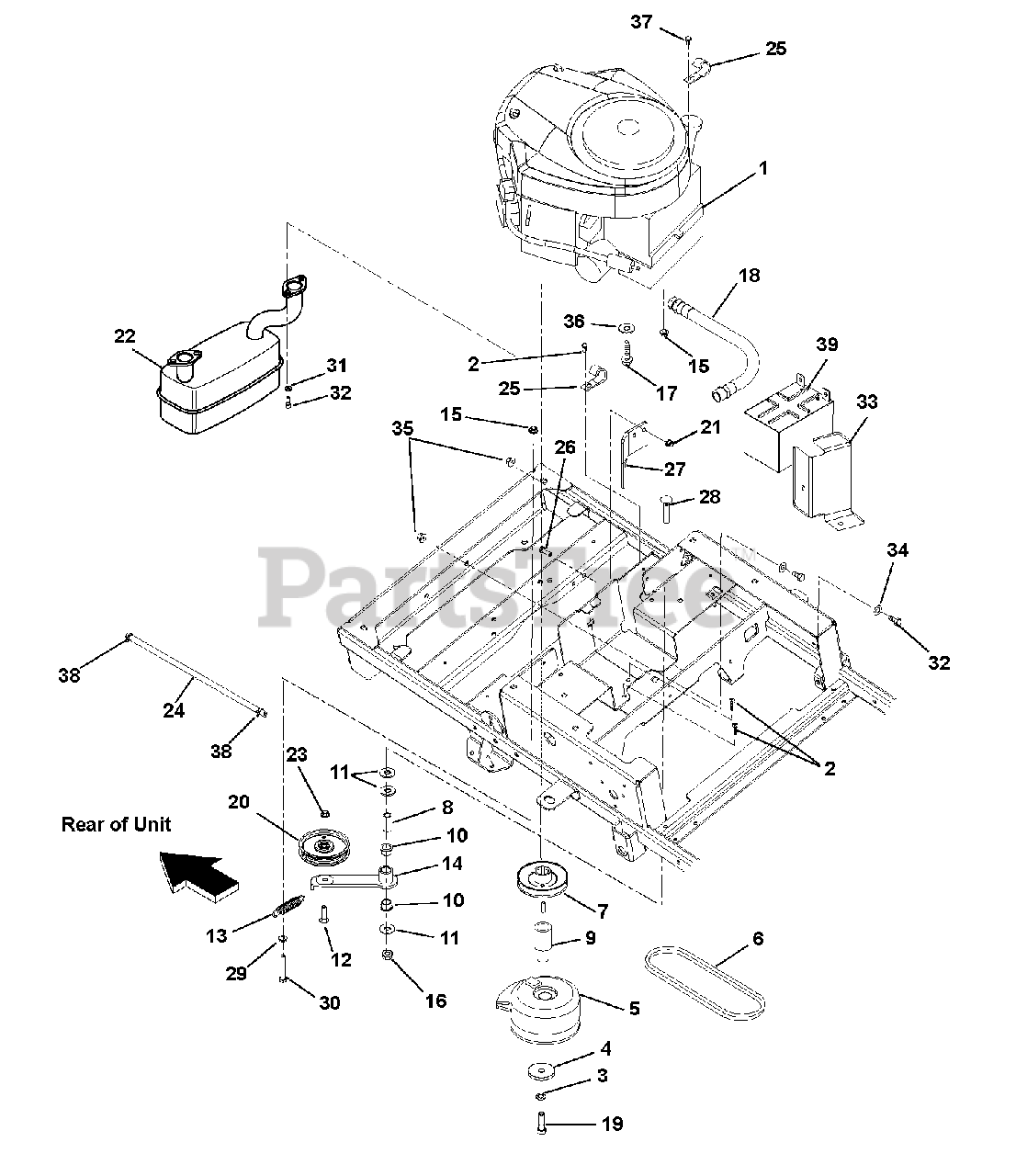

Engine, Exhaust, Belts and Idlers Parts Diagram

  • Title

1

Gravely 08200717

Engine, Kawasaki FR691V (915160)

Note: (915160)

$

$

Not available

Gravely 08200718

Engine, Kawasaki FR730V (915162, 164)

Note: (915162, 164)

$

$

Not available

2

Gravely 07411600

Screw, Tapping .250-20 x .37 Hex Washer Head
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06309300

Washer, Locking .44 x .109 Regular
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

4

Gravely 06443600

Washer, Flat Steel .469 x 2.00 x .25
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

5

Gravely 02975300

Clutch, XL

$336.99

$

In Stock, only 2 left!

0

6

Gravely 07242200

Belt, HA 62.50 Wrapped

$48.99

$

Usually ships in 4-12 days

0

7

Gravely 07300432

Pulley, V 4.5 x 1.5 AB Section with Key
(Superseded to 07336567)

$109.99

$

In Stock, only 2 left!

0

8

Gravely 05516400

Bushing, Sleeve .500 x .750 x 1.560

$5.99

$

In Stock, only 4 left!

0

9

Gravely 02996000

External, Crankshaft Lower

$90.99

$

Usually ships in 4-12 days

0

10

Gravely 05500039

Bushing, Flange 0.75 x 0.875 x .625 x 1.125

$7.49

$

In Stock, only 2 left!

0

11

Gravely 06442000

Washer, Flat Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 2 left!

0

12

Gravely 06224200

Bolt, Round Head Square Neck .38-16 x 1.50 Grade 5
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

13

Gravely 08311700

Spring, Tension .105 x .812 x 3.88

$7.99

$

In Stock, only 1 left!

0

14

Gravely 02003800

Weldment, Ground Drive Idler Arm

$66.99

$

Usually ships in 4-12 days

0

15

Gravely 06545500

Nut, 3/8-16 Flange Nyloc
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 05900125

Bolt, Hex .38-16 x 1.25
(Superseded to 05901507)

$2.49

$

In Stock, only 3 left!

0

18

Gravely 03844200

Hose Assembly, Oil Drain

$19.99

$

Usually ships in 4-12 days

0

19

Gravely 05966700

Bolt, Hex .44-20 x 4.50 Grade 8
(Superseded to 05901821)

$6.99

$

In Stock, Qty 7

0

20

Gravely 07300101

Assembly, 4" Idler

$62.99

$

In Stock, Qty 20+

0

21

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 03946900

Muffler, Kawasaki Twin Courage
(Superseded to 04749700)

$50.99

$

In Stock, only 1 left!

0

23

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 03278100

Fuel Hose

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06916000

J-Clamp

$2.49

$

Usually ships in 4-12 days

0

26

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 03260051

Clutch Stop

$20.99

$

In Stock, only 1 left!

0

28

Gravely 06225500

Bolt, Round Head Square Neck .50-13 x 2.50 Grade 5

$5.99

$

Usually ships in 4-12 days

0

29

Gravely 06534900

Nut, Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 05958400

Bolt, Hex .38-16 x 2.50 Grade 5
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

31

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 05946800

Bolt, Hex .25-20 x .75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 04593051

Bracket, Battery Holder

$

$

Not available

34

Gravely 06437300

Washer, Flat Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 06509200

Nut, KEPS .250-20
(Superseded to 06500921)

$1.49

$

In Stock, only 1 left!

0

36

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 03278800

Clamp, Fuel Line

$1.49

$

In Stock, Qty 20+

0

39

Gravely 04591900

Battery, 12V, 215 CCA, GEP
(Superseded to 04738800)

$122.99

$

In Stock, Qty 20+

0
