915160 (ZT XL 42) - Gravely 42" Zero-Turn Mower, Kawasaki FR (SN: 000101 - 009999) Frame, Hood, Footrest, Casters and Tires Parts Diagram

42" Zero-Turn Mower, Kawasaki FR

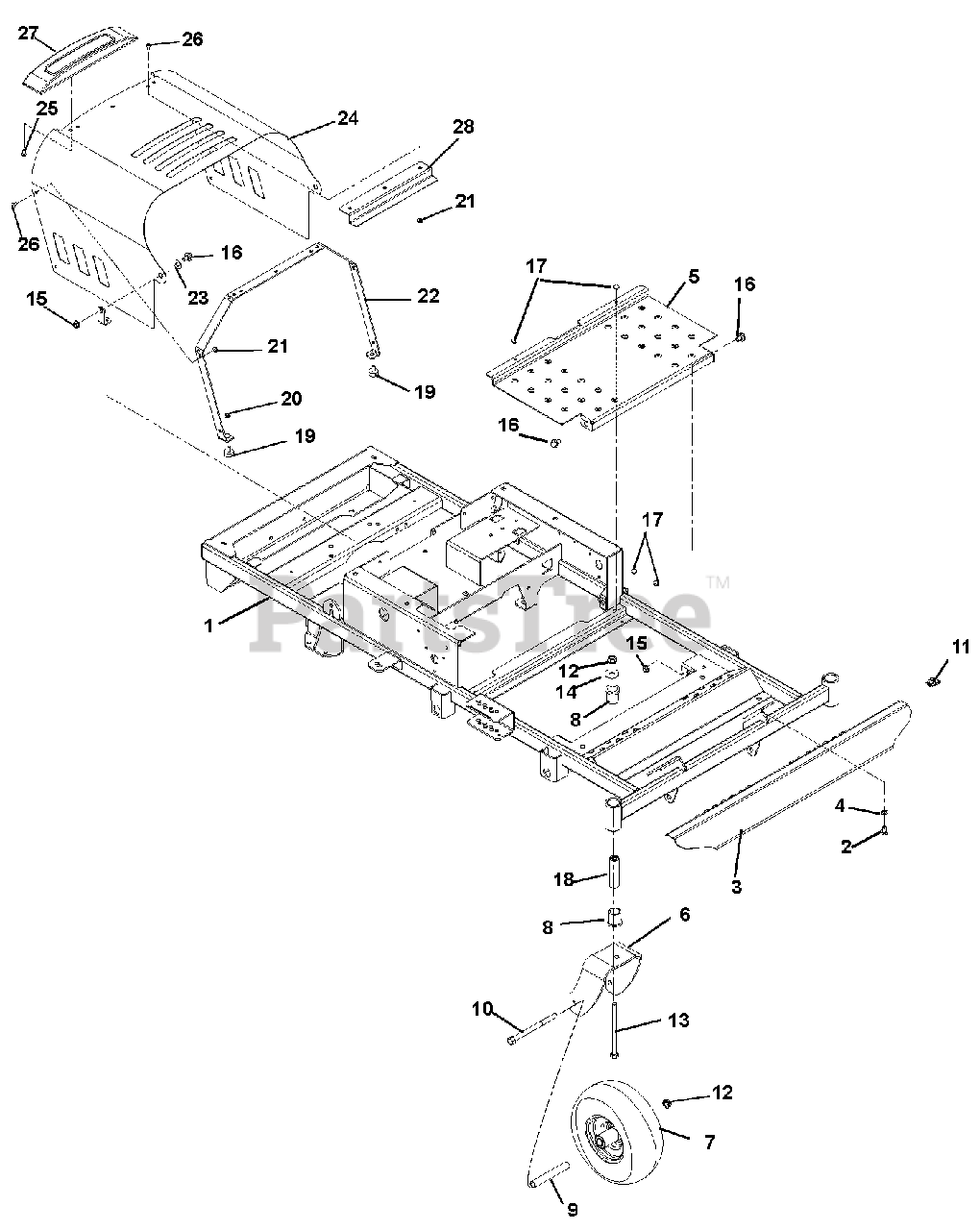

Frame, Hood, Footrest, Casters and Tires Parts Diagram

  • Title

1

Gravely 03998151

Weldment, Frame XL

$

$

Not available

2

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 01922953

Weldment, Footrest

$170.99

$

Usually ships in 4-12 days

0

4

Gravely 06308800

Washer, Locking .38 x .094 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 01923251

Deck Access Panel

$87.99

$

Usually ships in 4-12 days

0

6

Gravely 03368553

Fork, Caster

$72.99

$

In Stock, only 1 left!

0

7

Gravely 07100124

Wheel/Tire Assembly, 11.0 x 4.0 x 5.0, Monitor

$74.99

$

In Stock, Qty 20+

0

8

Gravely 05500934

Bushing, Flange 1.00 x 1.25 x 1.50 x 1.50

$6.99

$

In Stock, Qty 20+

0

9

Gravely 00278500

Spacer, Wheel

$13.99

$

In Stock, Qty 20+

0

10

Gravely 05964400

Bolt, Hex .50-13 x 6.50 Grade 5
(Superseded to 05901907)

$7.99

$

In Stock, Qty 5

0

11

Gravely 07053300

Nut, Retainer .375-16 x .37

$3.99

$

In Stock, only 4 left!

0

12

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05962200

Bolt, Hex .50-13 x 5.00 Grade 5
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

14

Gravely 06436400

Washer, Flat Steel .511 x 1.441 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 07056700

Bolt, Shoulder .375-16 x .135

$3.99

$

In Stock, only 2 left!

0

17

Gravely 07503100

Bumper Grommet .125 x .250 Diameter

$3.49

$

In Stock, only 3 left!

0

18

Gravely 00363100

Spacer, Caster Fork

$6.99

$

Usually ships in 4-12 days

0

19

Gravely 07533600

Bumper, Rubber

$11.99

$

In Stock, only 1 left!

0

20

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 02985453

Bracket, Hood Brace

$51.99

$

Usually ships in 4-12 days

0

23

Gravely 06443300

Washer, Flat Nylon .52 x 1.00 x .08

$0.99

$

In Stock, Qty 20+

0

24

Gravely 02970753

Hood, XL
(Superseded to 04045253)

$140.99

$

Usually ships in 4-12 days

0

25

Gravely 07400032

Screw, .25 x .50 PN Head

$2.49

$

Usually ships in 4-12 days

0

26

Gravely 06220600

Bolt, Round Head Square Neck .25-20 x .50 Grad
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 02970500

Trim - ZTXL Hood

$15.99

$

Usually ships in 4-12 days

0

28

Gravely 04045151

Bracket, Engine Guard

$

$

Not available
