915159 - Ariens Zoom 42" Zero-Turn Mower, 22hp Kohler (SN: 000101 - 009999) Belt Covers And Blades (2) Parts Diagram

Zoom 42" Zero-Turn Mower, 22hp Kohler

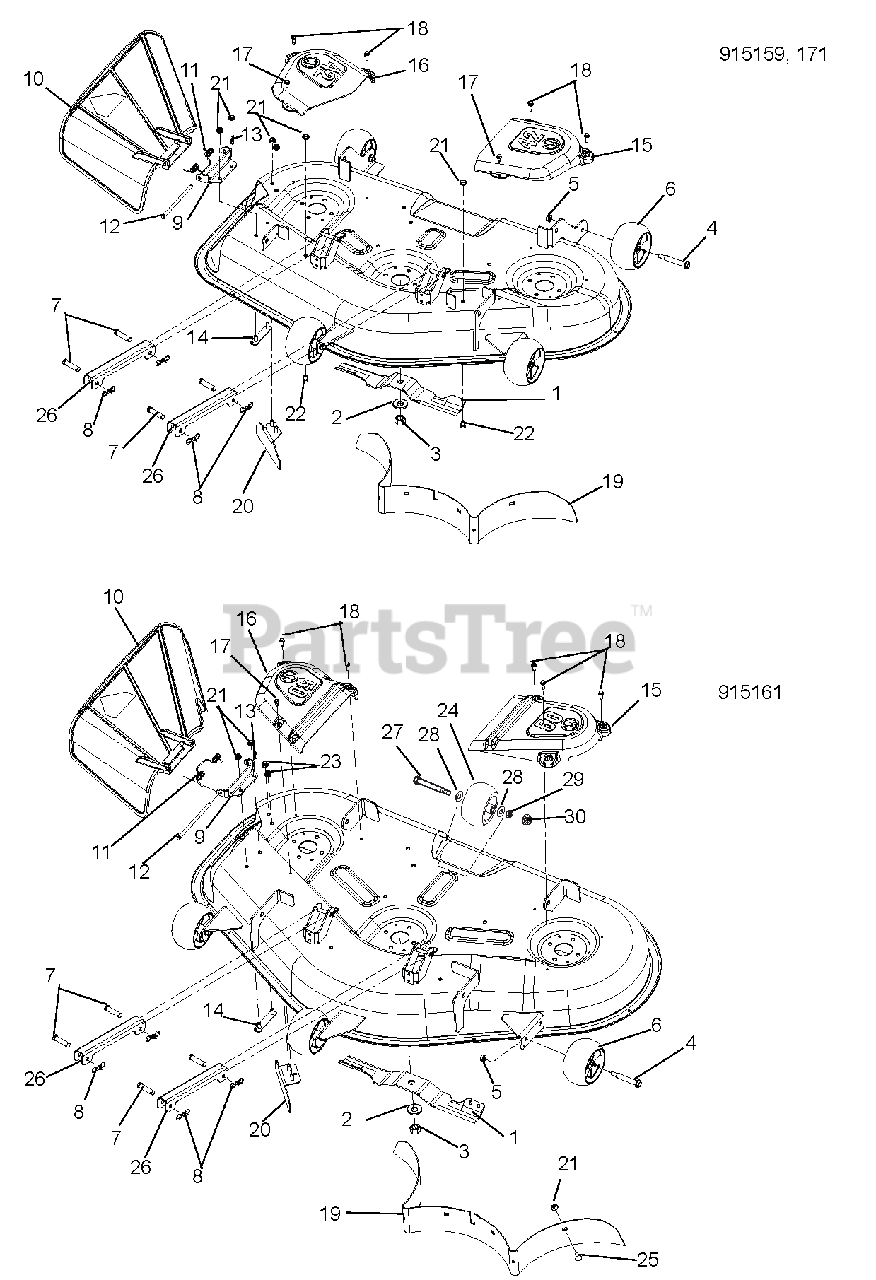

Belt Covers And Blades (2) Parts Diagram

  • Title

1

Ariens 04265400

BLADE, MOWER 14.83 (.188 THK)

Note: (915159, 171)

$25.99

$

In Stock, Qty 20+

0

1

Ariens 03971900

BLADE, MOWER 17.35

Note: (915161)

$23.99

$

In Stock, Qty 20+

0

2

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, only 3 left!

0

3

Ariens 06500630

NUT-HEX .62-18 YWZC
(Superseded to 06500920)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 07056800

BLT-SHLDR .38-16X2.50 HWH G5

$6.99

$

In Stock, Qty 20+

0

5

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 03905600

ANTI-SCALP WHEEL - 5X OS

Note: (915159, 171)

$15.99

$

In Stock, Qty 20+

0

6

Ariens 03905600

ANTI-SCALP WHEEL - 5X OS

Note: (915161)

$15.99

$

In Stock, Qty 20+

0

7

Ariens 06800102

PIN-CLEV .375 X 2.00 YWZC

$3.99

$

In Stock, Qty 13

0

8

Ariens 06700206

PIN, BOW TIE LOCKING
(Superseded to 06700225)

$3.99

$

In Stock, only 4 left!

0

9

Ariens 04073059

BRKT-DISCHARGE CHUTE MOUNT 42"

Note: (915159, 171)

$28.99

$

Usually ships in 4-12 days

0

9

Ariens 03977559

BRKT, CHUTE MOUNT

Note: (915161)

$30.99

$

Usually ships in 4-12 days

0

10

Ariens 03902300

DISCHARGE CHUTE
(Superseded to 04438600)

$91.99

$

In Stock, Qty 12

0

11

Ariens 08300515

SPRING-TORSION

$34.99

$

In Stock, only 1 left!

0

12

Ariens 00475800

PIN, 5/16 X 5.80"

$9.49

$

Usually ships in 4-12 days

0

13

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 03977400

WMT-DISCHARGE CHUTE MT. STRAP

$

$

Not available

15

Ariens 03902200

BELT COVER - LH 42"

Note: (915159, 171)

$28.99

$

In Stock, Qty 20+

0

15

Ariens 03901900

BELT COVER - LH 50"

Note: (915161)

$15.99

$

In Stock, only 1 left!

0

16

Ariens 03902100

BELT COVER - RH 42"

Note: (915159, 171)

$27.99

$

Usually ships in 4-12 days

0

16

Ariens 03901800

BELT COVER - RH 50"

Note: (915161)

$28.99

$

In Stock, only 1 left!

0

17

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (915159, 171)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (915161)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 07414200

SCR-TAP .25-20X.75 HWH TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0

19

Ariens 03957859

BAFFLE, REAR (42)

Note: (915159, 171)

$71.99

$

Usually ships in 4-12 days

0

19

Ariens 04069059

BAFFLE-50" STAMPED DECK REAR

Note: (915161)

$

$

Not available

20

Ariens 04044159

WMT, DISCHARGE BAFFLE (42)

Note: (915159, 171)

$37.99

$

Usually ships in 4-12 days

0

20

Ariens 03955959

BAFFLE, DEFLECTOR (50)

Note: (915161)

$45.99

$

Usually ships in 4-12 days

0

21

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (915159, 171)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (915161)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 05947200

@BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

Note: (915159, 171)

$1.49

$

In Stock, Qty 13

0

23

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

Note: (915161)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 02745400

ROLLER

Note: (915161)

$15.99

$

In Stock, Qty 20+

0

25

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

Note: (915161)

$2.49

$

In Stock, Qty 20+

0

26

Ariens 03764059

BRKT-STABILIZER LINK

$51.99

$

Usually ships in 4-12 days

0

27

Ariens 05960900

@BLT-HEX .38-16X3.50 GR5 YWZC
(Superseded to 05901818)

$3.99

$

In Stock, Qty 20+

0

28

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0
