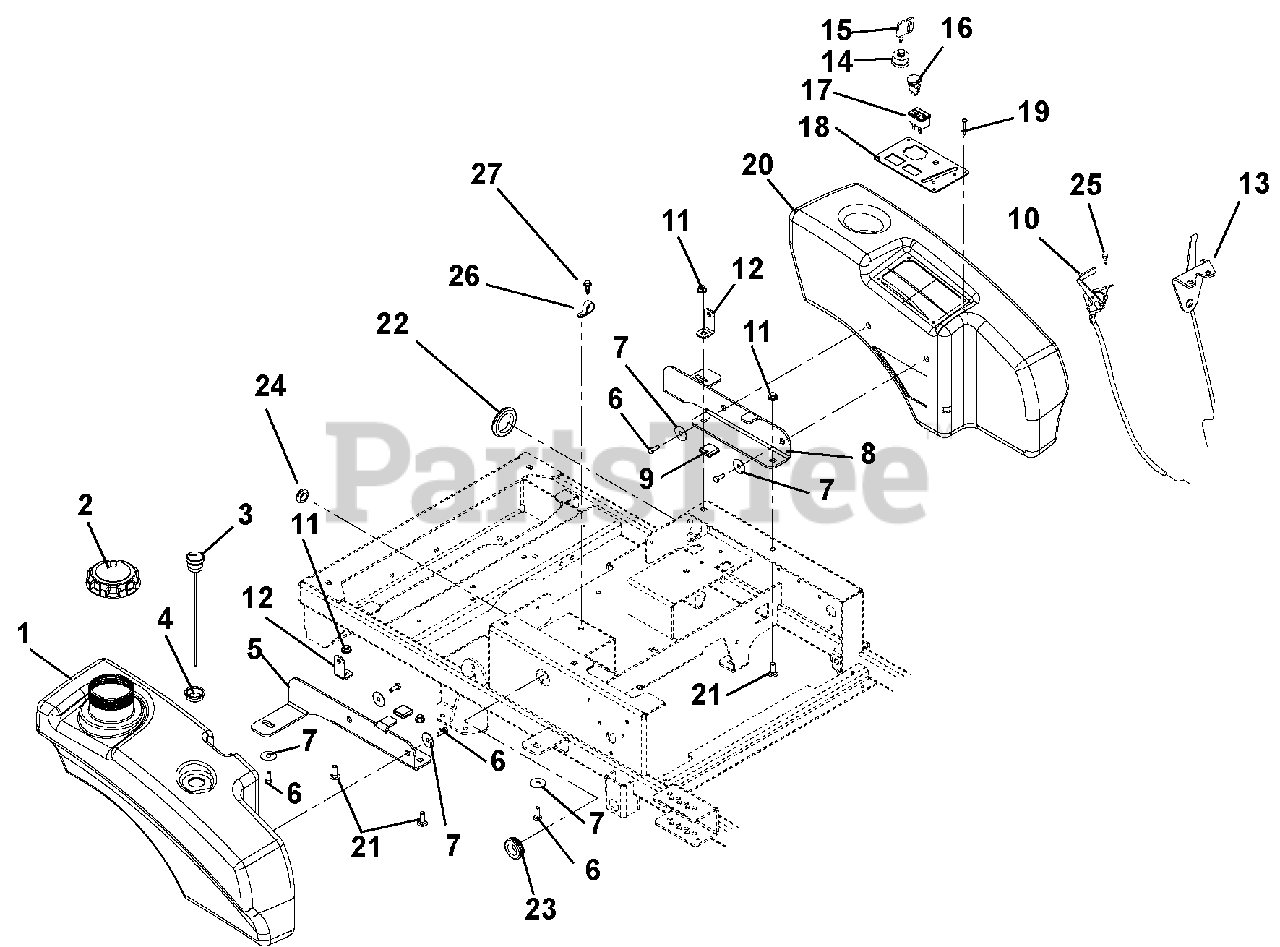

915156 (ZT XL 48) - Gravely 48" Zero-Turn Mower, 24hp Kawasaki (SN: 000101 & Above) Fuel Tank Parts Diagram

48" Zero-Turn Mower, 24hp Kawasaki

Fuel Tank Parts Diagram

  • Title

1

Gravely 02967300

Tank, XL
(Superseded to 04430400)

$407.99

$

In Stock, only 1 left!

0

2

Gravely 07500030

Fuel Cap
(Superseded to 03859100)

$28.99

$

In Stock, Qty 16

0

3

Gravely 07500029

Gauge, Remote Fuel 10.0"
(Superseded to 07500309)

$

$

Not available

4

Gravely 07500034

Grommet, Fuel Gage

$6.49

$

In Stock, Qty 7

0

5

Gravely 02973351

Bracket, Right Hand Rear Tank Mount

$38.99

$

Usually ships in 4-12 days

0

6

Gravely 07049500

Bolt, Serrated Hex Flange Washer Head .312-18 x .50

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 06446900

Washer, Flat Steel .347 x 1.254 x .048
(Superseded to 06401105)

$2.49

$

In Stock, only 2 left!

0

8

Gravely 02973451

Bracket, Left Hand Rear Tank Mount

$38.99

$

Usually ships in 4-12 days

0

9

Gravely 07500037

Grip, Rubber

$

$

Not available

10

Gravely 06900419

Cable, Throttle (915154 s/n 000426 and lower, 915156 s/n 000641 and lower, 915158 s/n 000368 and lower)
(Superseded to 06900423)

Note: (915154 s/n 000426 and lower, 915156 s/n 000641 and lower, 915158 s/n 000368 and lower)

$40.99

$

In Stock, only 1 left!

0

Gravely 06900423

Cable, Throttle (915154 s/n 000427 and up, 915156 s/n 000642 and up, 915158 s/n 000369 and up)

Note: (915154 s/n 000427 and up, 915156 s/n 000642 and up, 915158 s/n 000369 and up)

$40.99

$

In Stock, only 1 left!

0

11

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 03200051

Bracket, Hood Pivot

$36.99

$

Usually ships in 4-12 days

0

13

Gravely 06900420

Cable, Choke (915154 s/n 000426 and lower, 915156 s/n 000641 and lower, 915158 s/n 000368 and lower)

Note: (915154 s/n 000426 and lower, 915156 s/n 000641 and lower, 915158 s/n 000368 and lower)

$45.99

$

Usually ships in 4-12 days

0

Gravely 06900424

Cable, Choke (915154 s/n 000427 and up, 915156 s/n 000642 and up, 915158 s/n 000369 and up)

Note: (915154 s/n 000427 and up, 915156 s/n 000642 and up, 915158 s/n 000369 and up)

$39.99

$

In Stock, only 1 left!

0

14

Gravely 01588300

Key Switch

$30.99

$

In Stock, only 1 left!

0

15

Gravely 02460700

Key, w/cap

$7.99

$

In Stock, Qty 20+

0

16

Gravely 01545600

Switch, Clutch

$25.99

$

In Stock, Qty 20+

0

17

Gravely 00456600

Hour Meter, Digital
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

18

Gravely 03887051

Control Panel

$31.99

$

Usually ships in 4-12 days

0

19

Gravely 06830000

Rivet, Plastic .195 Diameter

$2.49

$

In Stock, Qty 20+

0

20

Gravely 02967400

Fender, XL

$147.99

$

Usually ships in 4-12 days

0

21

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

22

Gravely 07500017

Grommet, 2.00"

$5.49

$

Usually ships in 4-12 days

0

23

Gravely 07506500

Grommet .125 x 1.000 ID

$3.49

$

In Stock, only 1 left!

0

24

Gravely 07500031

Grommet, Rubber 5/8 ID/1.13 OD

$3.49

$

Usually ships in 4-12 days

0

25

Gravely 07415800

Screw, Tapping 10-24 x .50 Hex Washer Head Thread Rolling
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0

26

Gravely 06900036

Clamp, Cushioned Steel (915154 s/n 000427 and up, 915156 s/n 000642 and up, 915158 s/n 000369 and up)

Note: (915154 s/n 000427 and up, 915156 s/n 000642 and up, 915158 s/n 000369 and up)

$5.99

$

Usually ships in 4-12 days

0

27

Gravely 07412900

Screw, Tap Hex Washer Head .38-16 x .5 (915154 s/n 000427 and up, 915156 s/n 000642 and up, 915158 s/n
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0
