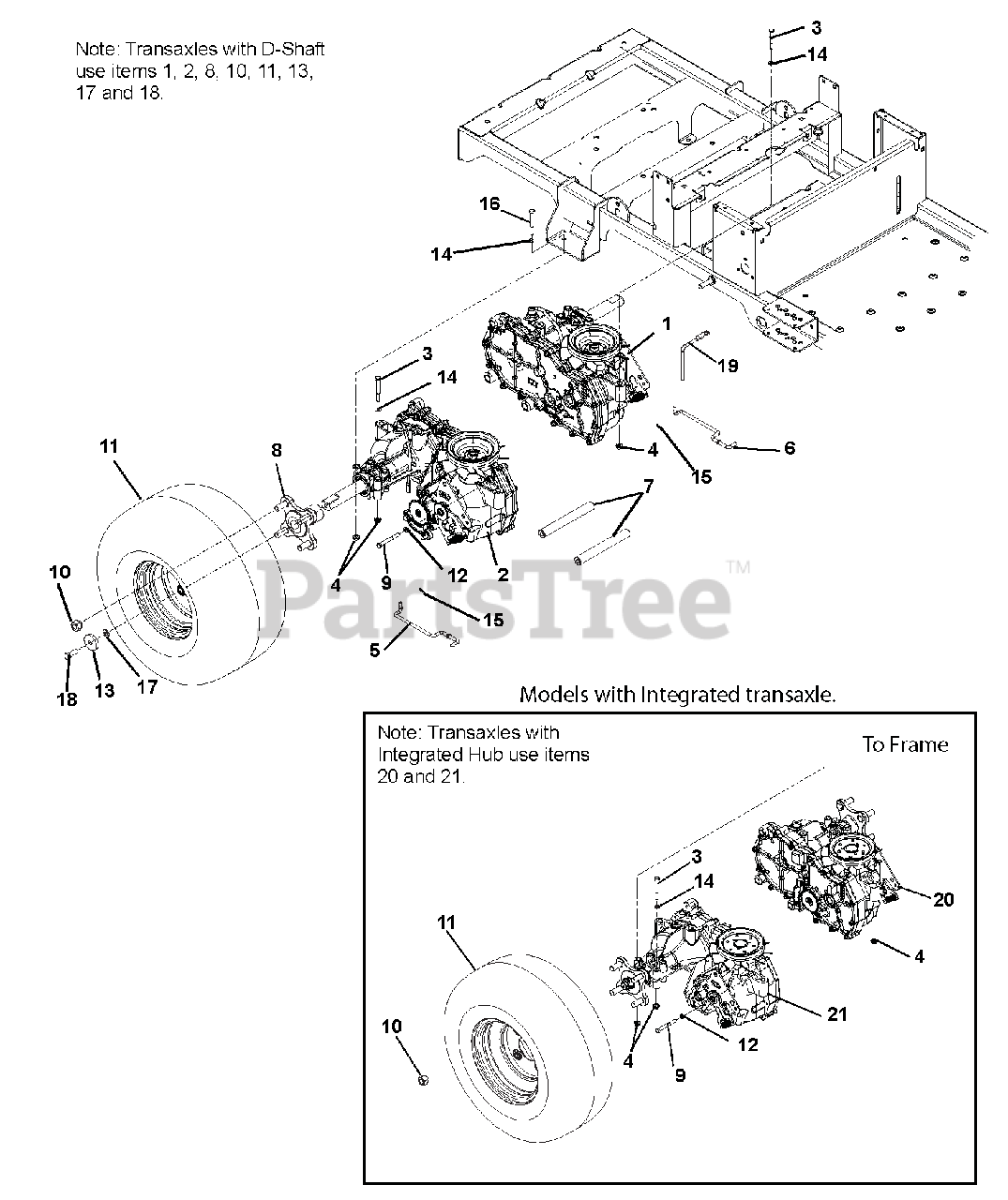

915155 - Ariens Zoom 42" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000101 & Above) Transaxle, Dump Valves And Rear Wheels (2) Parts Diagram

Zoom 42" Zero-Turn Mower, 16hp Briggs & Stratton

Transaxle, Dump Valves And Rear Wheels (2) Parts Diagram

  • Title
1

Ariens 03872300

TRANSAXLE, LH EZT D-SHAFT
(Superseded to 09160551)

$

$

Not available

2

Ariens 03872400

TRANSAXLE, RH EZT D-SHAFT
(Superseded to 09160551)

$

$

Not available

3

Ariens 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 03762700

DUMPVALVE, RH LCZ

$21.99

$

Usually ships in 4-12 days

0

6

Ariens 03762800

DUMPVALVE, LH LCZ

$28.99

$

Usually ships in 4-12 days

0

7

Ariens 03762000

SHAFT, CROSS BRACE

$45.99

$

In Stock, only 2 left!

0

8

Ariens 03958000

ASM, WHEEL HUB

$

$

Not available

9

Ariens 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

10

Ariens 06517600

WHEEL NUT .500-20 YZ
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 07100123

TIRE/WHEEL ASSY, 18X8.50-8 CTR

Note: (141, 155)

$125.99

$

Usually ships in 4-12 days

0

Ariens 07100233

TIRE/WHEEL ASSY, 18X9.50-8 OFF

Note: (143)

$170.99

$

In Stock, only 2 left!

0

12

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

13

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

14

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 8

0

16

Ariens 05960600

@BLT-HEX .31-18X2.75 GR5 YWZC
(Superseded to 05901807)

$2.49

$

In Stock, only 2 left!

0

17

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 03956151

BELT FINGER

Note: (141)

$

$

Not available

20

Ariens 03762200

TRANSAXLE, LH EZT SHORT

$903.99

$

Usually ships in 4-12 days

0

21

Ariens 03762300

TRANSAXLE, RH EZT SHORT

$

$

Not available
