915151 - Ariens Zoom 34" Zero-Turn Mower, 13hp Briggs & Stratton (SN: 000101 & Above) Mower Deck, Belt And Idlers Parts Diagram

Zoom 34" Zero-Turn Mower, 13hp Briggs & Stratton

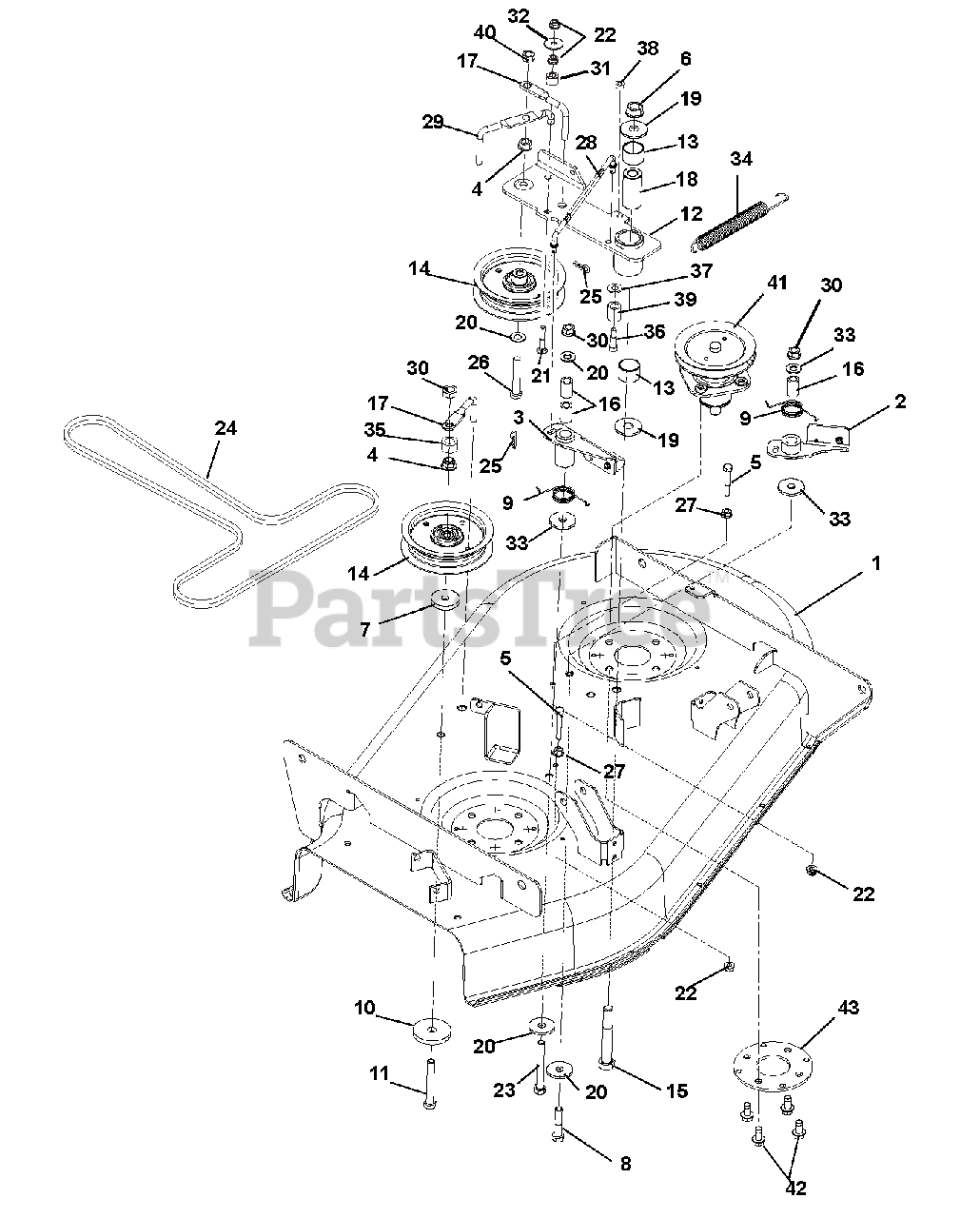

Mower Deck, Belt And Idlers Parts Diagram

  • Title

1

Ariens 03886459

WMT, BBZ 34 DECK
(Superseded to 51520100)

$749.99

$

Usually ships in 4-12 days

0

2

Ariens 51519900

ASSY-BRAKE ARM LH

$59.99

$

In Stock, only 1 left!

0

3

Ariens 51519800

ASSY-BRAKE ARM RH

$68.99

$

In Stock, only 1 left!

0

4

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 05964700

@BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05901935)

$2.49

$

In Stock, only 1 left!

0

6

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

8

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 08300502

SPRING, TORSION

$9.49

$

In Stock, only 2 left!

0

10

Ariens 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

11

Ariens 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

12

Ariens 03875600

WMT, IDLER ARM

$66.99

$

Usually ships in 4-12 days

0

13

Ariens 05435800

BRG, 1.00 X 1.12 X .75

$9.49

$

In Stock, Qty 10

0

14

Ariens 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

15

Ariens 05965800

@BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$4.99

$

In Stock, only 1 left!

0

16

Ariens 08833400

BUSH.,S.391X.622X.950 ST

$5.99

$

In Stock, only 1 left!

0

17

Ariens 03828859

WIREFORM, BELT FINGER
(Superseded to 03828800)

$9.49

$

In Stock, only 1 left!

0

18

Ariens 01581700

BSHG, SPCR .502X.997X2.03 PM

$5.99

$

In Stock, Qty 20+

0

19

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

20

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 06222300

@BLT-RDHDSQNK .25-20X1.50 G5YZ
(Superseded to 06200331)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

23

Ariens 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

24

Ariens 07200116

V-BELT, HA-WRAPPED

$63.99

$

In Stock, only 4 left!

0

25

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

27

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 03771700

WIREFORM-LINK, BRAKE

$

$

Not available

29

Ariens 03856859

WIREFORM, BELT FINGER

$

$

Not available

30

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 03242100

SPACER .325 X.625 X.455

$3.99

$

Usually ships in 4-12 days

0

32

Ariens 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$5.99

$

In Stock, only 1 left!

0

34

Ariens 08316400

SG-TENS .062X.56X8.0 WLD 11
(Superseded to 08300538)

$14.99

$

In Stock, Qty 20+

0

35

Ariens 05522100

BSHG-SLV .377X.624X.370

$4.99

$

Usually ships in 4-12 days

0

36

Ariens 05901340

BLT-SHSB .25-20X.312X.625

$3.99

$

Usually ships in 4-12 days

0

37

Ariens 06442300

@WSHR-FL-STL.250X.56X.049 YWZC

$1.99

$

Usually ships in 4-12 days

0

38

Ariens 06500635

NUT-LK-CTR JAM .25-20 YWZC
(Superseded to 06500912)

$2.49

$

Usually ships in 4-12 days

0

39

Ariens 03877100

ROLLER-.50X.328X.625

$9.49

$

Usually ships in 4-12 days

0

40

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

41

Ariens 51519500

KIT, DECK SPINDLE ASM (34/50)

Note: (34/50)

$156.99

$

In Stock, Qty 8

0

42

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

43

Ariens 03839059

PLATE-REINF, SPINDLE

$25.99

$

In Stock, only 1 left!

0
