915150 (ZT 50) - Gravely 50" Zero-Turn Mower (SN: 030000 - 034999) Mower Deck Lift Parts Diagram

50" Zero-Turn Mower

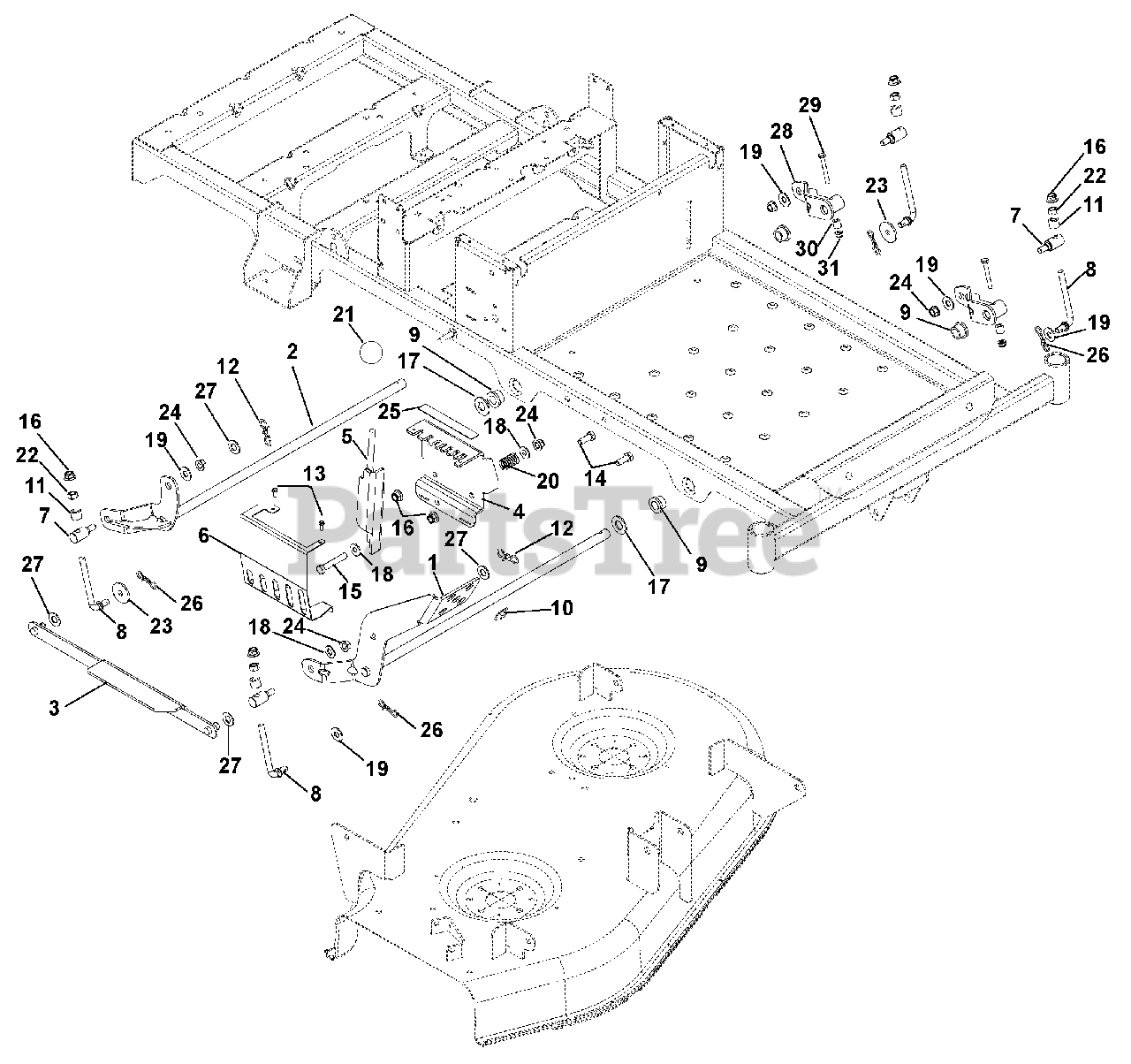

Mower Deck Lift Parts Diagram

  • Title

1

Gravely 04434567

Weldment, Footpedal

$37.99

$

Usually ships in 4-12 days

0

2

Gravely 04434467

Weldment, Rear Deck Lift

$60.99

$

Usually ships in 4-12 days

0

3

Gravely 04377367

Weldment, Lift/HOC Link

$31.99

$

Usually ships in 4-12 days

0

4

Gravely 04377951

Plate, Height Adjustment

$42.99

$

Usually ships in 4-12 days

0

5

Gravely 04391567

Weldment, Height of Cut

$

$

Not available

6

Gravely 04723751

Guard, Deck HOC

$22.99

$

Usually ships in 4-12 days

0

7

Gravely 04377867

Trunion, Deck Adjuster
(Superseded to 04377800)

$

$

Not available

8

Gravely 04377767

Wireform, Deck Adjustment
(Superseded to 04377700)

$17.99

$

In Stock, only 2 left!

0

9

Gravely 05519100

Bushing, Flange .629 x .879 x .469 x 1.25

$7.49

$

Usually ships in 4-12 days

0

10

Gravely 07525100

Stop

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 08553700

Bushing, Sleeve .391 x .688 x .52

$5.99

$

In Stock, only 1 left!

0

12

Gravely 06700201

Pin, Bow Tie Locking Cotter .091 x 1.875
(Superseded to 06700220)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 07415800

Screw, Tapping, Hex Washer Head Rolling 10-24 x .50
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0

14

Gravely 05948700

Bolt, Hex .38-16 x 1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 05962900

Bolt, Hex .38-16 x 2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

16

Gravely 06545500

Nut, Locking Nylon Flange .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06442800

Washer, Flat Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06436200

Washer, Flat Steel .438 x 1.00 x .083
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 08335700

Spring, Compression .125 x .781 x 1.25

$9.49

$

In Stock, only 1 left!

0

21

Gravely 07533500

Knob, Ball – Black 1.47" .375-16

$9.99

$

In Stock, Qty 6

0

22

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06443400

Washer, Flat Steel .380 x 1.50 x .125
(Superseded to 06401106)

$3.49

$

In Stock, Qty 9

0

24

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 07800334

Decal, Height of Cut

$10.99

$

Usually ships in 4-12 days

0

26

Gravely 06700206

Pin, Bowtie Locking
(Superseded to 06700225)

$3.99

$

In Stock, only 4 left!

0

27

Gravely 06443300

Washer, Flat Nylon .518 x 1.00 x .08

$0.99

$

In Stock, Qty 20+

0

28

Gravely 04434667

Weldment, Deck Lift Arm

$37.99

$

Usually ships in 4-12 days

0

29

Gravely 05967100

Bolt, Hex .25-20 x 2.00
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

30

Gravely 05501112

Bushing, Sleeve .265 x .500 x .500

$3.99

$

Usually ships in 4-12 days

0

31

Gravely 06500012

Nut, Locking Nylon Flange .25-20
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0
