915150 (ZT 50) - Gravely 50" Zero-Turn Mower (SN: 000101 - 009999) Fuel Tank Parts Diagram

50" Zero-Turn Mower

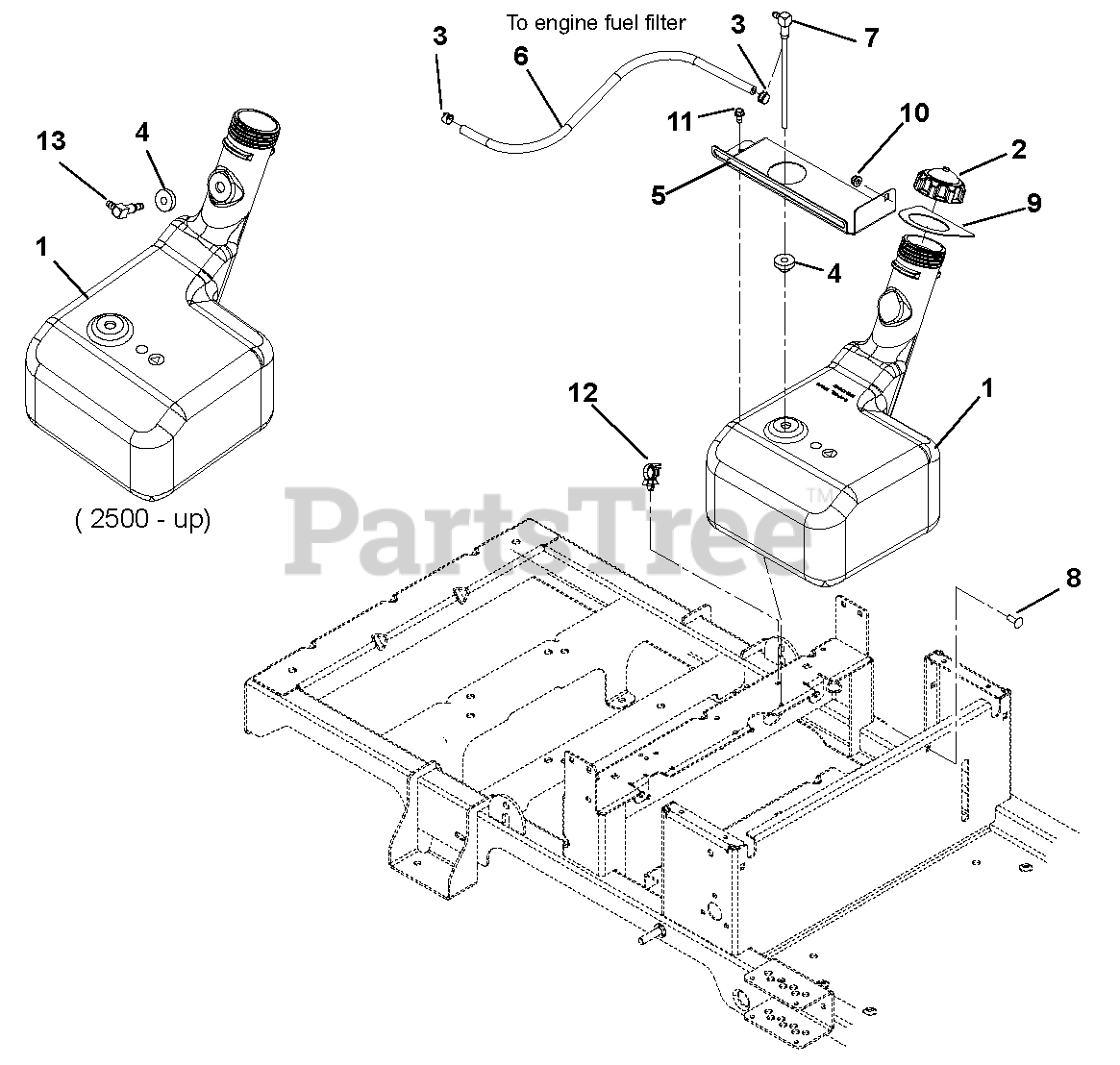

Fuel Tank Parts Diagram

  • Title

1

Gravely 03761700

Tank, Fuel (Serial Number 101 – 2499)

Note: (Serial Number 101 – 2499)

$244.99

$

Usually ships in 4-12 days

0

Gravely 04191900

Tank, Fuel 2.5G w/Vent Port (Serial Number 2500 – up)
(Superseded to 05244700)

Note: (Serial Number 2500 – up)

$162.99

$

Usually ships in 4-12 days

0

2

Gravely 01538400

Fuel Cap (Serial Number 101 – 2499)

Note: (Serial Number 101 – 2499)

$15.99

$

Usually ships in 4-12 days

0

Gravely 04238500

Fuel Cap, 225 CARB w/12" THTR (Serial Number 2500 – up)
(Superseded to 09190200)

Note: (Serial Number 2500 – up)

$18.99

$

In Stock, Qty 20+

0

3

Gravely 03278800

Clamp, Fuel Line

$1.49

$

In Stock, Qty 20+

0

4

Gravely 07500206

Bushing (Serial Number 101 – 2499)

Note: (Serial Number 101 – 2499)

$2.49

$

In Stock, Qty 20+

0

Bushing (Serial Number 2500 – up)

Bushing (Serial Number 2500 – up)

Note: (Serial Number 2500 – up)

$

$

Not available

5

Gravely 03771451

Bracket, Tank Strap

$

$

Not available

6

Gravely 03278100

Hose, .25 Low Perm Gas (as required)

Note: (as required)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 04333600

Assembly, Fuel Pickup

$15.99

$

In Stock, Qty 13

0

8

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 03795700

Seal, Tank Neck

$3.99

$

In Stock, Qty 5

0

10

Gravely 06500012

Nut, .25-20 Nyloc Flange
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

11

Gravely 07400034

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 00390100

Wire Clip

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 04219300

Fitting, 90 Degree Fuel Plastic (Serial Number 2500 – up)

Note: (Serial Number 2500 – up)

$

$

Not available
