915150 (ZT 50) - Gravely 50" Zero-Turn Mower (SN: 000101 - 009999) Frame, Hood, Fenders, Casters And Tires Parts Diagram

50" Zero-Turn Mower

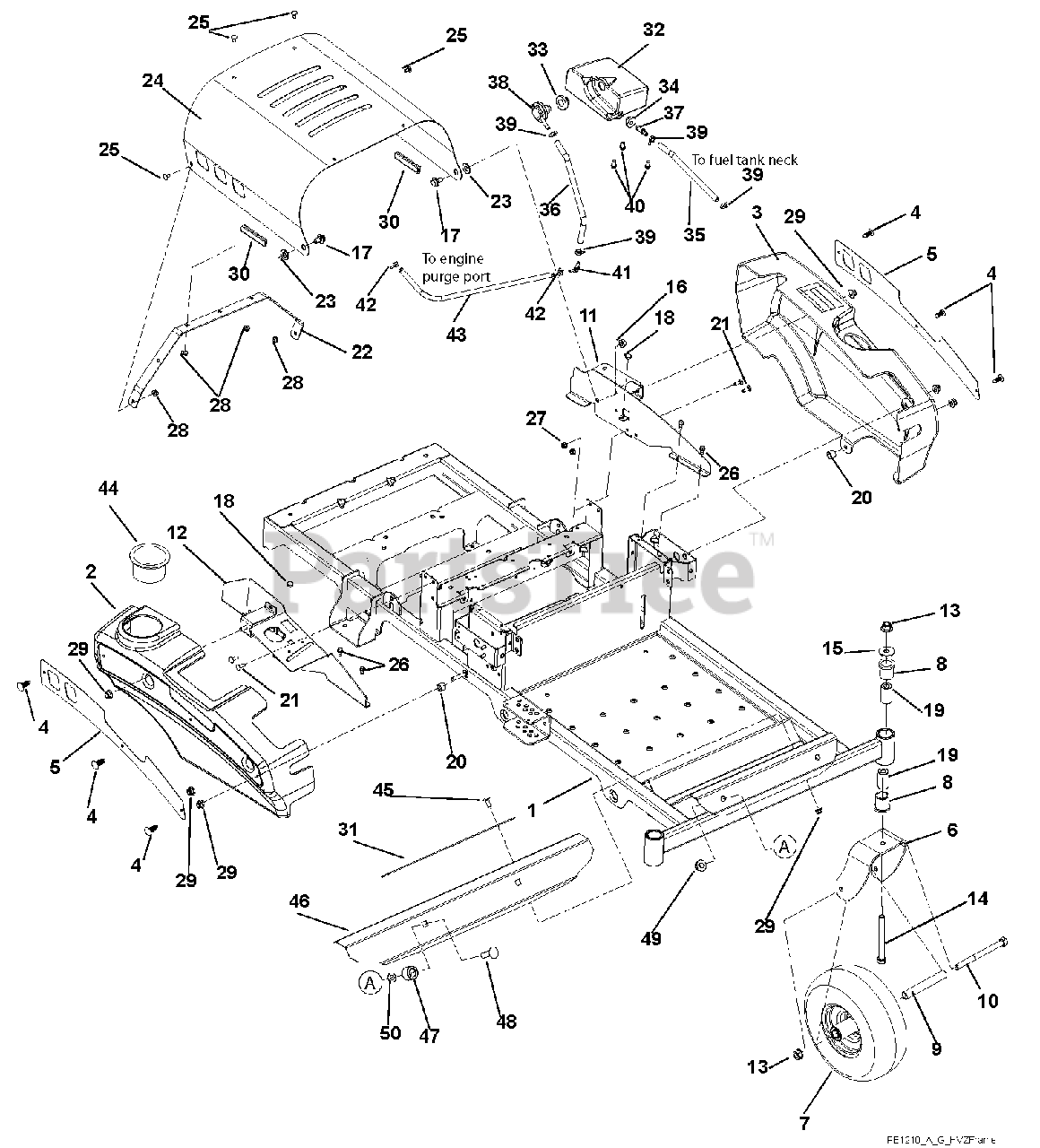

Frame, Hood, Fenders, Casters And Tires Parts Diagram

  • Title

1

Gravely 04282751

Weldment, Frame
(Superseded to 51525800)

$

$

Not available

2

Gravely 03768600

Fender, Right Hand

$79.99

$

In Stock, only 1 left!

0

3

Gravely 03768700

Fender, Left Hand
(Superseded to 51534400)

$96.99

$

Usually ships in 4-12 days

0

4

Gravely 07500125

Rivet, Nylon

$1.49

$

In Stock, Qty 18

0

5

Gravely 03769053

Plate, Fender

$39.99

$

Usually ships in 4-12 days

0

6

Gravely 03368553

Fork, Caster

$72.99

$

In Stock, only 1 left!

0

7

Gravely 07100801

Wheel/Tire Assembly, 11.0 x 4.0 x 5.0

$68.99

$

In Stock, Qty 5

0

8

Gravely 05500934

Bushing, Flange 1.00 x 1.25 x 1.50 x 1.50

$6.99

$

In Stock, Qty 20+

0

9

Gravely 00278500

Spacer, Wheel

$13.99

$

In Stock, Qty 20+

0

10

Gravely 05964400

Bolt, Hex .50-13 x 6.50
(Superseded to 05901907)

$7.99

$

In Stock, only 3 left!

0

11

Gravely 04240751

Weldment, Left Hand Fender Mount

$84.99

$

Usually ships in 4-12 days

0

12

Gravely 04194051

Weldment, Right Hand Fender Mount

$68.99

$

Usually ships in 4-12 days

0

13

Gravely 06543600

Nut, Locking, Top, Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05962200

Bolt, Hex .50-13 x 5.00
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

15

Gravely 06436400

Washer, Flat Steel .511 x 1.441 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

16

Gravely 06542000

Nut, Locking, Top, Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 07056700

Bolt, Shoulder .375-16 x .135

$3.99

$

In Stock, only 2 left!

0

18

Gravely 07503100

Bumper Grommet .125 x .250 Diameter

$3.49

$

In Stock, only 3 left!

0

19

Gravely 00363100

Spacer, Caster

$6.99

$

In Stock, only 4 left!

0

20

Gravely 08553700

Bushing, Sleeve .391 x .688 x .52

$5.99

$

In Stock, only 1 left!

0

21

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 04085753

Hood Brace

$

$

Not available

23

Gravely 06443300

Washer, Flat, Nylon .52 x 1.00 x .08

$0.99

$

In Stock, Qty 20+

0

24

Gravely 04277453

Hood, ZT

$

$

Not available

25

Gravely 03872253

Bolt, Round Head Square Neck .25-20 x .50

$

$

Not available

26

Gravely 06500012

Nut, Locking Toop Flange .25-20
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

27

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head Thread
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 06545400

Nut, Locking, Nylon, Flange .31-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 07500103

Edging, Clutch Paddle - 2.00"

$3.49

$

Usually ships in 4-12 days

0

31

Gravely 03833800

Grip, Adhesive (1" x 16" BLK)

Note: (1" x 16" BLK)

$

$

Not available

32

Gravely 04215900

Tank, ZT/Waw Fuel Exp. (Serial Number 2500 – up)
(Superseded to 04400000)

Note: (Serial Number 2500 – up)

$47.99

$

Usually ships in 4-12 days

0

33

Gravely 04082700

Grommet, Remote Vent Nitrile (Serial Number 2500 – up)

Note: (Serial Number 2500 – up)

$3.49

$

In Stock, Qty 9

0

34

Gravely 07500206

Bushing, Flange .375 x 1.062 x .625 (Serial Number 2500 – up)

Note: (Serial Number 2500 – up)

$2.49

$

In Stock, Qty 20+

0

35

Gravely 03278100

Hose, .25 Low-Perm Bulk Gas (7.00 inches) (Serial Number 2500 – up)

Note: (7.00 inches) (Serial Number 2500 – up)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 03278100

Hose, .25 Low-Perm Bulk Gas (27 inches) (Serial Number 2500 – up)

Note: (27 inches) (Serial Number 2500 – up)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 04182300

Fitting, Straight Fuel (Serial Number 2500 – up)

Note: (Serial Number 2500 – up)

$

$

Not available

38

Gravely 04246000

Vent, Roll-Over (.25" ID Hose) (Serial Number 2500 – up)

Note: (.25" ID Hose) (Serial Number 2500 – up)

$20.99

$

Usually ships in 4-12 days

0

39

Gravely 03278800

Clamp, Hose Wire .490/.510 x .116 (Serial Number 2500 – up)

Note: (Serial Number 2500 – up)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 07049500

Bolt, Serrated Hex Flange Washer Head .312-18 x .50 (Serial Number 2500 – up)

Note: (Serial Number 2500 – up)

$2.49

$

Usually ships in 4-12 days

0

41

Gravely 04097000

Fitting, 3/16 x 1/4 90° Vac (Serial Number 2500 – up)

Note: (Serial Number 2500 – up)

$14.99

$

Usually ships in 4-12 days

0

42

Gravely 04097700

Clamp, Hose, Spring .188 (Serial Number 2500 – up)

Note: (Serial Number 2500 – up)

$

$

Not available

43

Gravely 03375900

Hose, .188 Low-Perm Bulk Gas (7 inches) (915146) (Serial Number 2500 – up)

Note: (7 inches) (915146) (Serial Number 2500 – up)

$0.99

$

Usually ships in 4-12 days

0

Hose, .188 Low-Perm Bulk Gas (11 inches) (915148, 150) (Serial Number 2500 – up)

Hose, .188 Low-Perm Bulk Gas (11 inches) (915148, 150) (Serial Number 2500 – up)

Note: (11 inches) (915148, 150) (Serial Number 2500 – up)

$

$

Not available

44

Gravely 04192700

Cupholder, Snap-In, 3.75 OD

$

$

Not available

45

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

46

Gravely 04188353

Foot Rest

$77.99

$

Usually ships in 4-12 days

0

47

Gravely 04192901

Tube, Upper Control Pivot

$

$

Not available

48

Gravely 06224800

Bolt, Round Head Square Neck .50-13 x 1.75
(Superseded to 06200330)

$5.99

$

Usually ships in 4-12 days

0

49

Gravely 06500010

Nut, Locking Nylon Flange .50-13
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

50

Gravely 06500705

Nut, Push .50

$3.99

$

Usually ships in 4-12 days

0
