915149 - Ariens Zoom XL 54" Zero-Turn Mower, 24hp Kawasaki (SN: 000101 & Above) Mower Deck, Belt, Idlers And Blades Parts Diagram

Zoom XL 54" Zero-Turn Mower, 24hp Kawasaki

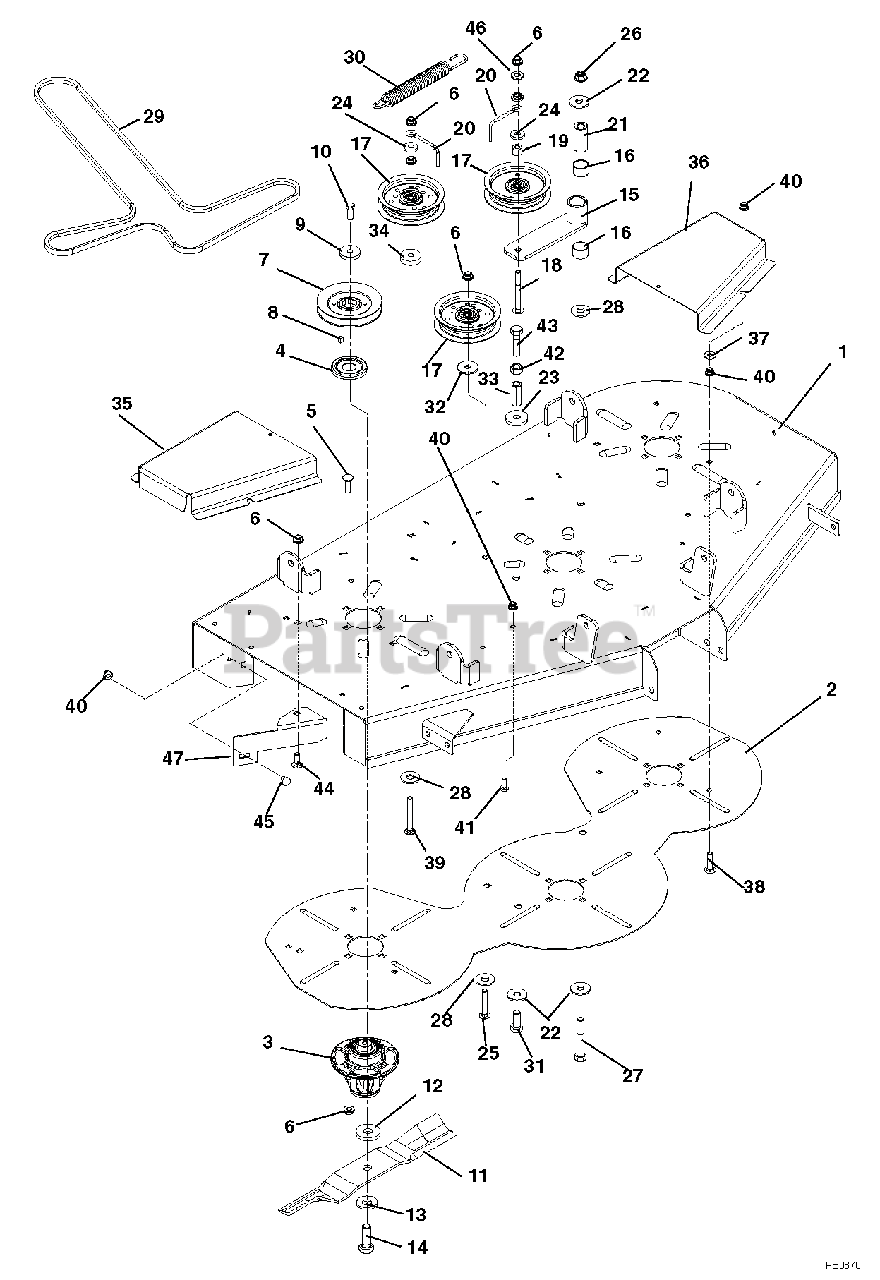

Mower Deck, Belt, Idlers And Blades Parts Diagram

  • Title

1

Ariens 00612959

WMT-42" DECK ZTXL ARIENS

Note: (XL) (915145)

$

$

Not available

1

Ariens 00613159

WMT, DECK 48"
(Superseded to 51524100)

Note: (XL) (915147)

$813.99

$

Usually ships in 4-12 days

0

1

Ariens 00613059

WMT, DECK 54"
(Superseded to 51524200)

Note: (XL) (915149)

$949.99

$

Usually ships in 4-12 days

0

2

Ariens 03273059

DOUBLER PLATE, 42 XL

Note: (915145)

$86.03

$

Usually ships in 4-12 days

0

2

Ariens 02991059

PLATE-48" ZTXL DECK REINF.

Note: (915147)

$

$

Not available

2

Ariens 02989859

DOUBLER PLATE, 54"

Note: (915149)

$125.99

$

Usually ships in 4-12 days

0

3

Ariens 61543800

SPINDLE ASSEMBLY
(Superseded to 51510000)

$216.99

$

In Stock, Qty 12

0

4

Ariens 00587400

DUST CAP

$7.99

$

In Stock, only 3 left!

0

5

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

6

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 01610300

SHEAVE, 4.75 DIA A-SECTION
(Superseded to 07330267)

Note: (915145, 147)

$52.99

$

In Stock, only 1 left!

0

7

Ariens 07300426

SHEAVE-5.25" DIA A-SECTION
(Superseded to 07340767)

Note: (915149)

$53.99

$

In Stock, Qty 20+

0

8

Ariens 06611100

KEY, SQ .25 X .38 X .25

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

10

Ariens 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

11

Ariens 02961600

BLADE, 14.50" MOWER (HI-LIFT)

Note: (915145)

$27.99

$

In Stock, Qty 20+

0

11

Ariens 02982000

BLADE, 16.19 MOWER (HI-LIFT)
(Superseded to 00450200)

Note: (915147)

$29.99

$

In Stock, Qty 20+

0

11

Ariens 02961700

BLADE, 18.44" MOWER (HI-LIFT)

Note: (915149)

$30.99

$

In Stock, Qty 20+

0

12

Ariens 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$3.99

$

In Stock, only 2 left!

0

13

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, only 3 left!

0

14

Ariens 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

15

Ariens 00652600

WELDMENT, IDLER ARM

$46.99

$

In Stock, only 1 left!

0

16

Ariens 05435800

BRG, 1.00 X 1.12 X .75

$9.49

$

In Stock, Qty 6

0

17

Ariens 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

18

Ariens 06222400

@BLT-RDHDSQNK .38-16X3.50 G5YZ
(Superseded to 06200302)

$9.49

$

In Stock, only 1 left!

0

19

Ariens 08553700

BSHG-SLV .391X.688X.52 PM

$5.99

$

In Stock, only 1 left!

0

20

Ariens 00391900

BELT FINGER

$20.99

$

In Stock, only 2 left!

0

21

Ariens 01581700

BSHG, SPCR .502X.997X2.03 PM

$5.99

$

In Stock, Qty 20+

0

22

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

23

Ariens 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$5.99

$

In Stock, only 3 left!

0

24

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

25

Ariens 06213400

@BLT-RDHDSQNK .38-16X2.25 G5YZ
(Superseded to 06200301)

$3.99

$

In Stock, only 2 left!

0

26

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 05960000

@BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

28

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

Note: (915145, 147)

$2.49

$

In Stock, only 1 left!

0

28

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

Note: (915149)

$2.49

$

In Stock, only 1 left!

0

29

Ariens 07219600

V-BELT, HA-WRAPPED

Note: (915145)

$80.99

$

In Stock, only 2 left!

0

29

Ariens 07200436

V-BELT, HA-WRAPPED

Note: (915147)

$75.99

$

Usually ships in 4-12 days

0

29

Ariens 07200023

V-BELT, HA-WRAPPED

Note: (915149)

$86.99

$

In Stock, Qty 20+

0

30

Ariens 08300020

EXTENSION SPRING

$26.99

$

In Stock, only 2 left!

0

31

Ariens 05958900

@BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

32

Ariens 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$3.99

$

In Stock, only 1 left!

0

33

Ariens 06500013

NUT, COUPLING 1/2-13X1.75 YWZC

$3.99

$

Usually ships in 4-12 days

0

34

Ariens 01594000

SPACER, .39 X 1.50 X .380

$3.99

$

In Stock, only 1 left!

0

35

Ariens 00655959

BELT COVER, RIGHT

Note: (915145)

$

$

Not available

35

Ariens 00486959

BELT COVER, RIGHT

Note: (915147)

$45.99

$

Usually ships in 4-12 days

0

35

Ariens 02995359

COVER-BELT RH

Note: (915149)

$45.99

$

In Stock, only 1 left!

0

36

Ariens 00607559

BELT COVER. LEFT 40"

Note: (915145)

$37.99

$

Usually ships in 4-12 days

0

36

Ariens 00486859

BELT COVER, LEFT

Note: (915147)

$41.99

$

Usually ships in 4-12 days

0

36

Ariens 02995259

COVER-BELT LH

Note: (915149)

$48.99

$

Usually ships in 4-12 days

0

37

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

38

Ariens 06200008

@BLT-RHDSHSQNK.31-18X1.25 G5YZ
(Superseded to 06200310)

$1.49

$

In Stock, Qty 5

0

39

Ariens 06228100

@BLT-RDHDSQNK .38-16X3.00 G5YZ
(Superseded to 06200418)

$3.99

$

In Stock, only 1 left!

0

40

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

Note: (915147, 149)

$1.49

$

In Stock, Qty 20+

0

40

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

Note: (915145)

$1.49

$

In Stock, Qty 20+

0

41

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

Note: (915147, 149)

$1.49

$

In Stock, Qty 20+

0

41

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

Note: (915145)

$1.49

$

In Stock, Qty 20+

0

42

Ariens 06537300

@NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$3.99

$

Usually ships in 4-12 days

0

43

Ariens 05959700

@BLT-HEX .50-13X2.00 GR5 YWZC
(Superseded to 05901929)

$

$

Not available

44

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

45

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

46

Ariens 05515800

BSHG-FLG .406X.88X.270X.140

$9.49

$

In Stock, only 4 left!

0

47

Ariens 02989959

DEFLECTOR, 42" DECK

Note: (915145)

$28.99

$

Usually ships in 4-12 days

0

47

Ariens 01975559

DEFLECTOR, 48/54 DECK

Note: (915147, 149)

$

$

Not available
