915148 (ZT 42) - Gravely 42" Zero-Turn Mower (SN: 030000 - 034999) Transaxle, Dump Valves And Rear Wheels Parts Diagram

42" Zero-Turn Mower

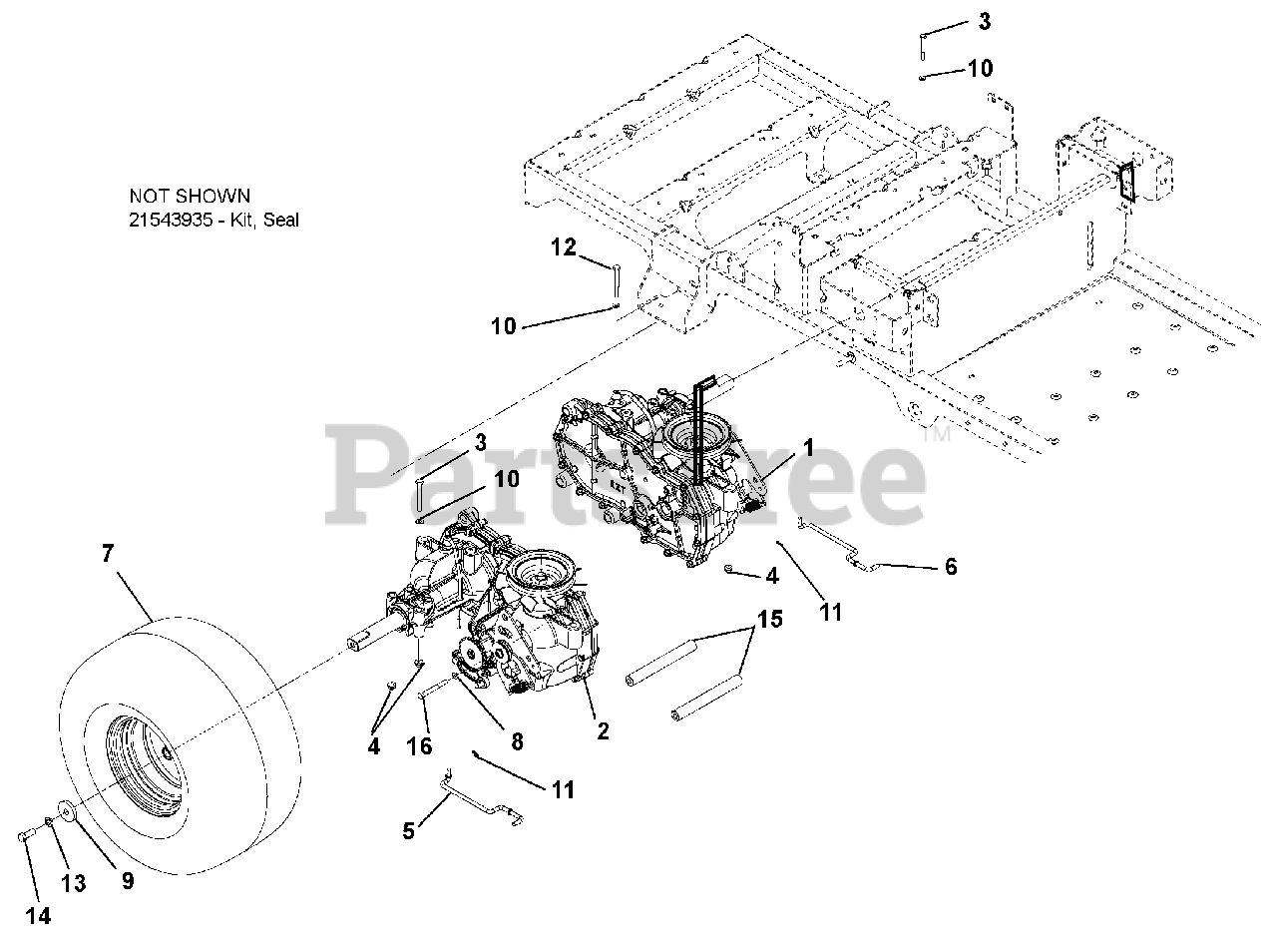

Transaxle, Dump Valves And Rear Wheels Parts Diagram

  • Title
1

Gravely 03872300

Transaxle, Left Hand EZT D-Shaft (915146, 168)
(Superseded to 09160551)

Note: (915146, 168)

$

$

Not available

Gravely 04382300

Transaxle, Left Hand EZT D-Shaft Long (915148, 150, 170)

Note: (915148, 150, 170)

$905.99

$

Usually ships in 4-12 days

0

2

Gravely 03872400

Transaxle, Right Hand EZT D-Shaft (915146, 168)
(Superseded to 09160551)

Note: (915146, 168)

$

$

Not available

Gravely 04382400

Transaxle, Right Hand EZT D-Shaft Long (915148, 150, 170)

Note: (915148, 150, 170)

$905.99

$

In Stock, only 1 left!

0

3

Gravely 05963700

Bolt, Hex .31-18 x 2.25
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06545400

Nut 5/16-18 Flange Nyloc
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 03762700

Dump Valve, Right Hand

$21.99

$

Usually ships in 4-12 days

0

6

Gravely 03762800

Dump Valve, Left Hand

$28.99

$

Usually ships in 4-12 days

0

7

Gravely 07100809

Tire Assembly 18 x 6.5-8 2 Ply DSHAFT (915146, 168)

Note: (915146, 168)

$113.99

$

In Stock, only 2 left!

0

Gravely 07100928

Tire/Wheel Assembly, 18 x 8.5-8 Center (915148, 170)
(Superseded to 07101130)

Note: (915148, 170)

$159.99

$

In Stock, only 1 left!

0

Gravely 07100929

Tire/Wheel Assembly, 18 x 9.50-8 Offset (915150)

Note: (915150)

$170.99

$

Usually ships in 4-12 days

0

8

Gravely 06444000

Washer, Flat Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

10

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06701900

Pin, Hair, Internal .06 x .18 x .77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 8

0

12

Gravely 05960600

Bolt, Hex .31-18 x 2.75
(Superseded to 05901807)

$2.49

$

In Stock, only 2 left!

0

13

Gravely 06308800

Washer, Locking .38 x .094 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 05900013

Bolt, Hex .38-16 x 1.00 YWZC EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 03762067

Shaft, Transaxle Brace
(Superseded to 03762000)

$45.99

$

In Stock, only 2 left!

0

16

Gravely 05958400

BOLT, HEX .38-16 X 2.50
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 21543935

KIT, SEAL

Note: NOT SHOWN

$80.99

$

In Stock, only 1 left!

0
