915148 (ZT 42) - Gravely 42" Zero-Turn Mower (SN: 030000 - 034999) Mower Deck, Belt And Idlers Parts Diagram

42" Zero-Turn Mower

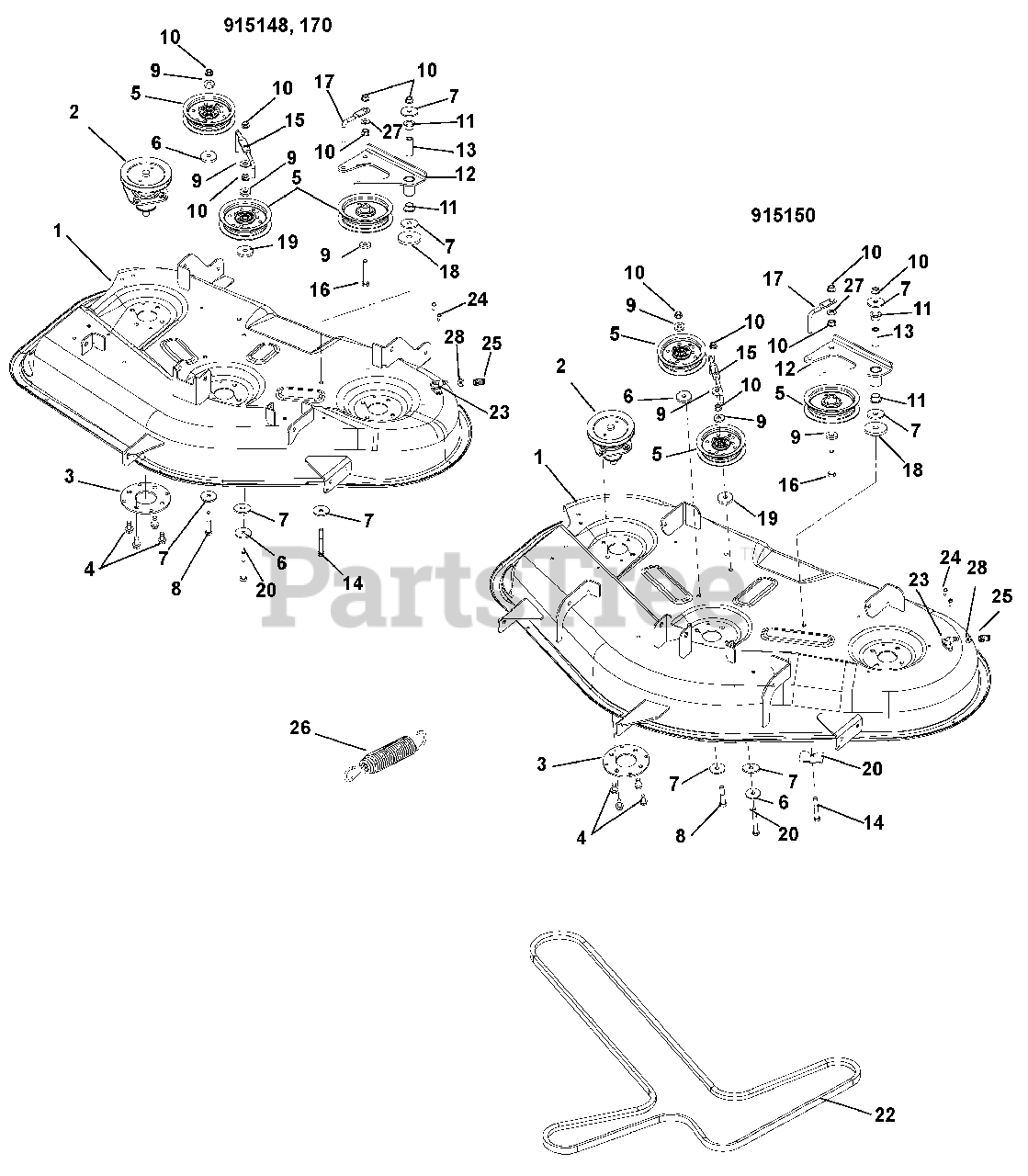

Mower Deck, Belt And Idlers Parts Diagram

  • Title

1

Gravely 51526400

Kit, Gravely 42" Deck with Decals (915148, 170)

Note: (915148, 170)

$646.99

$

Usually ships in 4-12 days

0

1

Gravely 51525100

Kit, Gravely 50" Deck with Decals (915150)

Note: (915150)

$905.99

$

Usually ships in 4-12 days

0

2

Gravely 51520900

Assembly, Spindle (915148, 170)

Note: (915148, 170)

$153.99

$

In Stock, only 2 left!

0

2

Gravely 51519500

Assembly, Spindle (915150)

Note: (915150)

$156.99

$

In Stock, Qty 8

0

3

Gravely 03839053

Plate, Spindle

$22.99

$

Usually ships in 4-12 days

0

4

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 07300039

Assembly, Idler 4"
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

6

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

7

Gravely 06443400

Washer, Flat Steel .380 x 1.50 x .125 (915148, 170)
(Superseded to 06401106)

Note: (915148, 170)

$3.49

$

In Stock, Qty 8

0

7

Gravely 06443400

Washer, Flat Steel .380 x 1.50 x .125 (915150)
(Superseded to 06401106)

Note: (915150)

$3.49

$

In Stock, Qty 8

0

8

Gravely 05962900

Bolt, Hex .38-16 x 2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

9

Gravely 06444000

Washer, Flat Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05500907

Bushing, Flange, .625 x .750 x .500 x 1.00

$5.99

$

In Stock, Qty 20+

0

12

Gravely 04430867

Idler Arm
(Superseded to 04430851)

$56.99

$

Usually ships in 4-12 days

0

13

Gravely 03763400

Spacer, .375ID x .625 OD x 1.66

$3.99

$

In Stock, Qty 20+

0

14

Gravely 05957800

Bolt, Hex .38-16 x 3.00
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 03974153

Belt Finger
(Superseded to 03974100)

$

$

Not available

16

Gravely 05962900

Bolt, Hex .38-16 x 2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

17

Gravely 03828853

Wireform Belt Finger
(Superseded to 03828800)

$9.49

$

In Stock, only 1 left!

0

18

Gravely 06443600

Washer, Flat Steel .469 x 2.00 x .25
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

19

Gravely 06435900

Washer, Flat Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 05961400

Bolt, Hex .38-16 x 2.75
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

21

Gravely 04061053

Plate, Deck (915150)

Note: (915150)

$

$

Not available

22

Gravely 07200523

V-Belt, 4L Wrapped (915148, 170)

Note: (915148, 170)

$69.99

$

In Stock, Qty 20+

0

22

Gravely 07200524

V-Belt, 4L Wrapped (915150)

Note: (915150)

$83.99

$

Usually ships in 4-12 days

0

23

Gravely 04428900

Assy, Washout Port W/O Ring

$9.99

$

Usually ships in 4-12 days

0

24

Gravely 07400103

Screw, Tapping .25-20 x .62 Hex Washer Head Thread Rolling
(Superseded to 07400135)

$2.49

$

In Stock, Qty 6

0

25

Gravely 04396500

Coupling, Quick Disconnect

$21.99

$

In Stock, only 2 left!

0

26

Gravely 08320300

Extension Spring .135 x .98 x 6.0

$17.99

$

In Stock, Qty 20+

0

27

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 05600513

O-Ring .362 X .103 X .568

$

$

Not available
