915148 (ZT 42) - Gravely 42" Zero-Turn Mower (SN: 000101 - 009999) Belt Covers And Blades Parts Diagram

42" Zero-Turn Mower

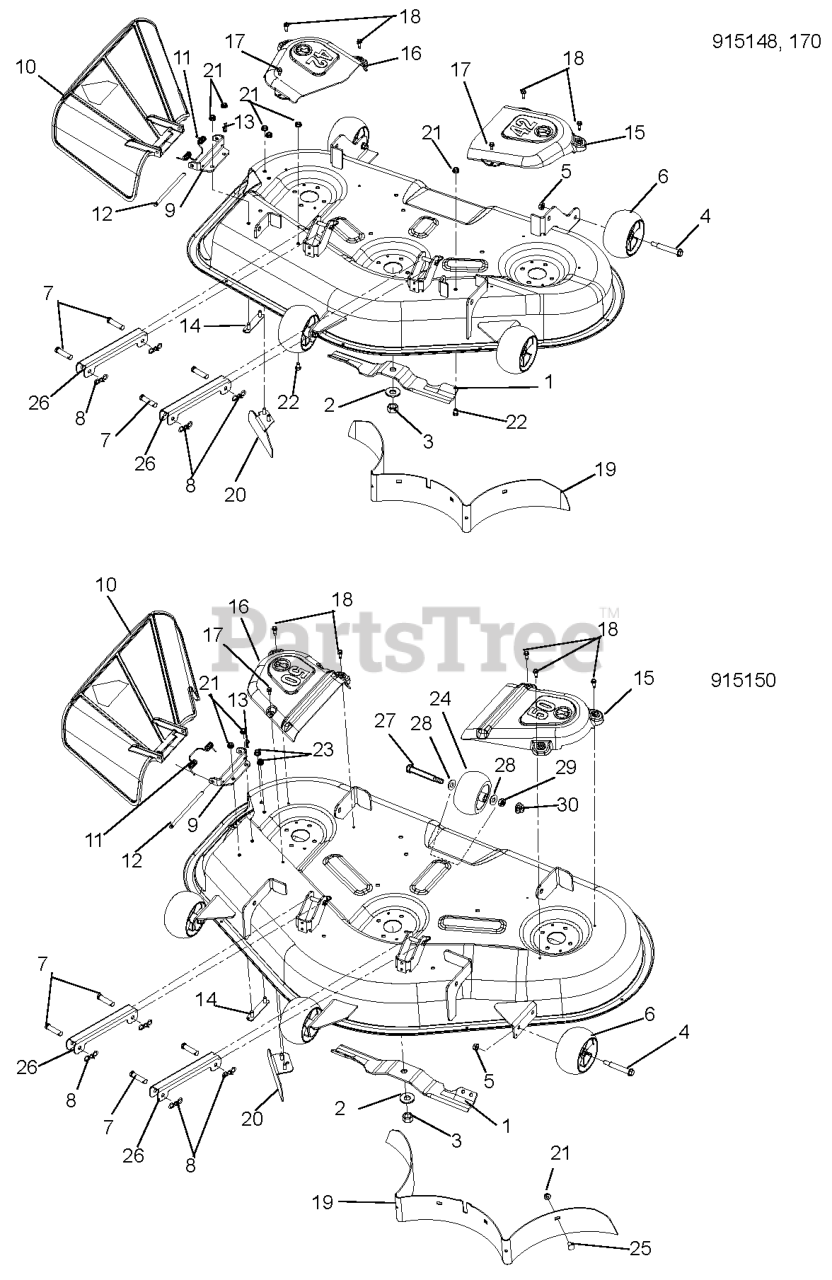

Belt Covers And Blades Parts Diagram

  • Title
1

Gravely 04265400

Mower Blade, 14.83" (915148, 170)

Note: (915148, 170)

$25.99

$

In Stock, Qty 20+

0

Gravely 03971900

Blade, Mower 17.35" (915150)

Note: (915150)

$23.99

$

In Stock, Qty 20+

0

2

Gravely 06445700

Washer, Bellville .63 x 1.625 x .14

$4.99

$

In Stock, only 3 left!

0

3

Gravely 06500630

Nut, Hex .62-18
(Superseded to 06500920)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 07056800

Bolt, Shoulder .38-16 x 2.50 Hex Washer Head

$6.99

$

In Stock, Qty 20+

0

5

Gravely 06542000

Nut, Locking, Top, Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 03905600

Anti-Scalp Wheel, 5 x 3 OS (915148, 170)

Note: (915148, 170)

$15.99

$

In Stock, Qty 20+

0

Anti-Scalp Wheel, 5 x 3 OS (915150)

Anti-Scalp Wheel, 5 x 3 OS (915150)

Note: (915150)

$

$

Not available

7

Gravely 06800102

Pin, Clevis .375 x 2.00

$3.99

$

In Stock, Qty 13

0

8

Gravely 06700206

Pin, Bow Tie Locking Cotter
(Superseded to 06700225)

$3.99

$

In Stock, only 4 left!

0

9

Gravely 04073053

Bracket, Discharge Chute Mount 42" (915148, 170)

Note: (915148, 170)

$28.99

$

Usually ships in 4-12 days

0

Gravely 03977553

Bracket, Discharge Chute Mount 50" (915150)

Note: (915150)

$24.99

$

Usually ships in 4-12 days

0

10

Gravely 03902300

Discharge Chute
(Superseded to 04438600)

$91.99

$

In Stock, Qty 12

0

11

Gravely 08300515

Spring, Torsion

$34.99

$

In Stock, only 1 left!

0

12

Gravely 00475800

Pin, 5/16 x 5.80"

$9.49

$

Usually ships in 4-12 days

0

13

Gravely 06713500

Pin, Hair Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 03977400

Weldment, Discharge Chute MT. Strap

$

$

Not available

15

Gravely 03902200

Belt Cover, Left Hand 42" (915148, 170)

Note: (915148, 170)

$28.99

$

In Stock, Qty 20+

0

Gravely 03901900

Belt Cover, Left Hand 50" (915150)

Note: (915150)

$15.99

$

In Stock, only 1 left!

0

16

Gravely 03902100

Belt Cover, Right Hand 42" (915148, 170)

Note: (915148, 170)

$27.99

$

Usually ships in 4-12 days

0

Gravely 03901800

Belt Cover, Right Hand 50" (915150)

Note: (915150)

$28.99

$

In Stock, only 1 left!

0

17

Gravely 07400034

Screw, Tapping .25-20 x .50 Hex Washer Head (915148, 170)
(Superseded to 07400122)

Note: (915148, 170)

$0.99

$

In Stock, Qty 20+

0

Screw, Tapping .25-20 x .50 Hex Washer Head (915150)

Screw, Tapping .25-20 x .50 Hex Washer Head (915150)

Note: (915150)

$

$

Not available

18

Gravely 07414200

Screw, Tapping .25-20 x .75 Hex Washer Head
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0

19

Gravely 03957853

Baffle, 42 Rear (915148, 170)

Note: (915148, 170)

$60.99

$

Usually ships in 4-12 days

0

Gravely 04069053

Baffle, 50 Rear (915150)

Note: (915150)

$

$

Not available

20

Gravely 04044153

Baffle, 42" Deflector (915148, 170)

Note: (915148, 170)

$49.99

$

Usually ships in 4-12 days

0

Gravely 03955953

Baffle, 50" Deflector (915150)

Note: (915150)

$43.99

$

Usually ships in 4-12 days

0

21

Gravely 06543100

Nut, Locking, Top, Flange .31-18 (915148, 170)
(Superseded to 06500904)

Note: (915148, 170)

$1.49

$

In Stock, Qty 20+

0

Nut, Locking, Top, Flange .31-18 (915150)

Nut, Locking, Top, Flange .31-18 (915150)

Note: (915150)

$

$

Not available

22

Gravely 05947200

Bolt, Hex .31-18 x .50 (915148, 170)
(Superseded to 05901904)

Note: (915148, 170)

$1.49

$

In Stock, Qty 13

0

23

Gravely 06545400

Nut, Locking, Nylon, Flange .31-18 (915150)
(Superseded to 06500809)

Note: (915150)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 02745400

Roller (915150)

Note: (915150)

$15.99

$

In Stock, Qty 20+

0

25

Gravely 06220800

Bolt, Round Head Square Neck .31-18 x .75 (915150)
(Superseded to 06200309)

Note: (915150)

$2.49

$

In Stock, Qty 20+

0

26

Gravely 03764053

Bracket, Stabilizer Link

$45.99

$

Usually ships in 4-12 days

0

27

Gravely 05960900

Bolt, Hex .38-16 x 3.50
(Superseded to 05901818)

$3.99

$

In Stock, Qty 20+

0

28

Gravely 06436200

Washer, Flat, Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 06537200

Nut, Locking, Center, Jam .375-16
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 06545500

Nut, Locking, Nylon, Flange .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0
