915146 (ZT 34) - Gravely 34" Zero-Turn Mower (SN: 010000 - 029999) Parking Brake Parts Diagram

34" Zero-Turn Mower

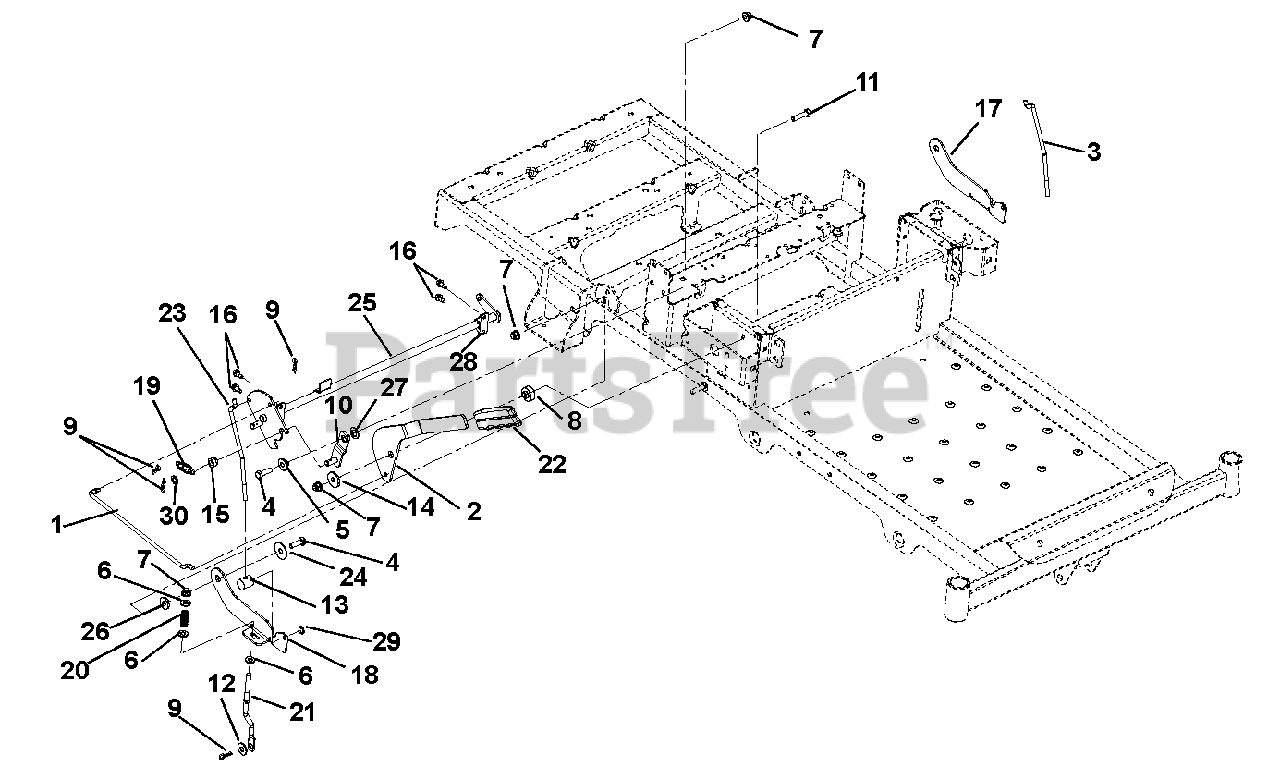

Parking Brake Parts Diagram

  • Title
1

Gravely 03759400

Link, Brake Handle

$14.99

$

In Stock, only 1 left!

0

2

Gravely 03759167

Handle, Parking Brake

$46.99

$

Usually ships in 4-12 days

0

3

Gravely 03823300

Link, Neutral Left Hand

$13.99

$

Usually ships in 4-12 days

0

4

Gravely 05946900

Bolt, Hex .31-18 x 1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05514800

Bushing, Flange .312 x .500 x .344 x .880

$2.49

$

In Stock, only 3 left!

0

6

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06545400

Nut, Flange Nyloc 5/16-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 03769400

Spacer, Brake Handle

$

$

Not available

9

Gravely 06713500

Pin, Hair Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 03759200

Weldment, Detent Arm

$19.99

$

Usually ships in 4-12 days

0

11

Gravely 05947500

Bolt, Hex .31-18 x 1.25
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

12

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 03764800

Trunnion, 1/4-20

$13.99

$

In Stock, Qty 20+

0

14

Gravely 06446300

Washer, Flat Steel .344 x 1.125 x .135
(Superseded to 06401104)

$3.99

$

In Stock, only 2 left!

0

15

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 07400034

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 03759067

Latch, Left Hand Neutral
(Superseded to 03759000)

$

$

Not available

18

Gravely 03758967

Latch, Right Hand Neutral
(Superseded to 03758900)

$

$

Not available

19

Gravely 08326700

Spring, Tension .072 x .565 x 1.87

$20.99

$

In Stock, only 1 left!

0

20

Gravely 08300028

Spring, Compression

$4.99

$

In Stock, Qty 7

0

21

Gravely 03759667

Link, Brake Cog
(Superseded to 03759600)

$

$

Not available

22

Gravely 03826900

Grip, Parking Brake

$3.99

$

In Stock, only 1 left!

0

23

Gravely 03759500

Link, Neutral Right Hand

$18.99

$

In Stock, only 2 left!

0

24

Gravely 06446900

Washer, Flat Steel .347 x 1.254 x .048
(Superseded to 06401105)

$2.49

$

In Stock, only 2 left!

0

25

Gravely 03761167

Weldment, Brake Shaft
(Superseded to 03761151)

$31.99

$

Usually ships in 4-12 days

0

26

Gravely 01305900

Bushing, Flange .325 x .499 x .26 x .88

$2.49

$

In Stock, only 1 left!

0

27

Gravely 06441100

Washer, Flat Steel .52 x .827 x .062
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

28

Gravely 03757501

Bushing, .50 Clamp Block Molded

$3.99

$

In Stock, only 2 left!

0

29

Gravely 05700125

Ring, Retaining, External .250 x .025

$0.99

$

In Stock, Qty 20+

0

30

Gravely 06400840

Washer, Steel .385 x .745 x .030
(Superseded to 06401107)

$2.49

$

In Stock, only 1 left!

0
