915143 - Ariens Zoom 50" Zero-Turn Mower, 22hp Kawasaki (SN: 000101 & Above) Fuel Tank Parts Diagram

Zoom 50" Zero-Turn Mower, 22hp Kawasaki

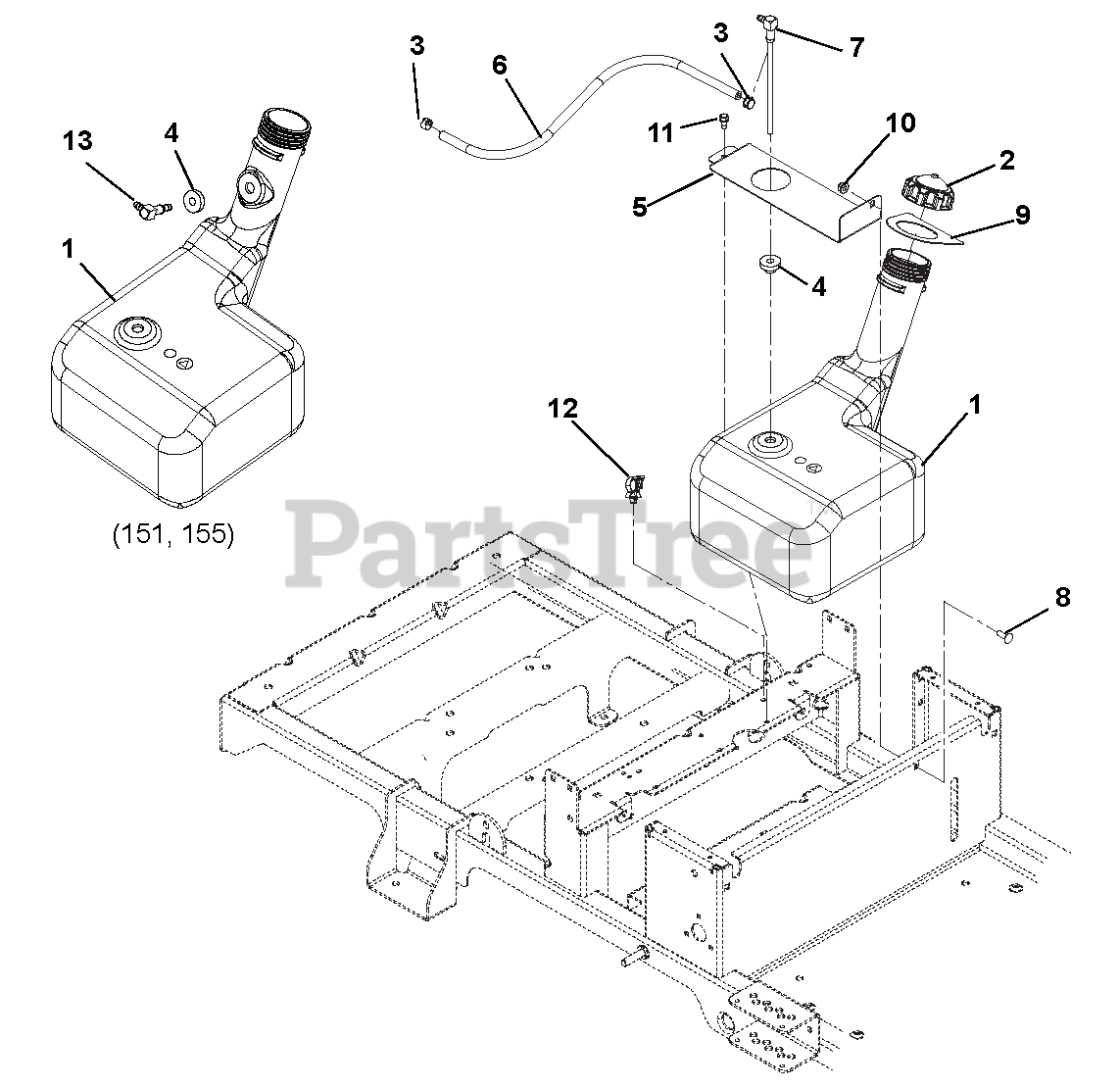

Fuel Tank Parts Diagram

  • Title

1

Ariens 03761700

FUEL TANK

Note: (131, 141, 143)

$244.99

$

Usually ships in 4-12 days

0

1

Ariens 04082200

FUEL TANK 2.5G W/VENT PORT
(Superseded to 05244700)

Note: (151, 155)

$162.99

$

Usually ships in 4-12 days

0

2

Ariens 01538400

FUEL CAP

Note: (131, 141, 143)

$15.99

$

In Stock, only 1 left!

0

2

Ariens 04082300

FUEL CAP, 225 CARB W/12" THTR

$

$

Not available

3

Ariens 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

4

Ariens 07511400

BSHG-FLG .375 X 1.062 X .625 R

Note: (131, 141, 143)

$3.49

$

In Stock, Qty 20+

0

4

Ariens 07511400

BSHG-FLG .375 X 1.062 X .625 R

Note: (151, 155)

$3.49

$

In Stock, Qty 20+

0

5

Ariens 03771451

BRKT, TANK STRAP

$

$

Not available

6

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS

Note: 10" Length

$1.49

$

In Stock, Qty 20+

0

7

Ariens 03875200

ASSY-PICK-UP, FUEL 6.5L
(Superseded to 04333600)

$15.99

$

In Stock, Qty 14

0

8

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 03795700

SEAL-TANK NECK

$3.99

$

In Stock, Qty 5

0

10

Ariens 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

11

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 00390100

WIRE CLIP

$3.49

$

Usually ships in 4-12 days

0

13

Ariens 04182900

FITTING, 90 DEGREE .25" FUEL

Note: (151, 155)

$

$

Not available
