915142 (ZT 42) - Gravely 42" Zero-Turn Mower, Briggs & Stratton (SN: 000101 & Above) Steering Controls Parts Diagram

42" Zero-Turn Mower, Briggs & Stratton

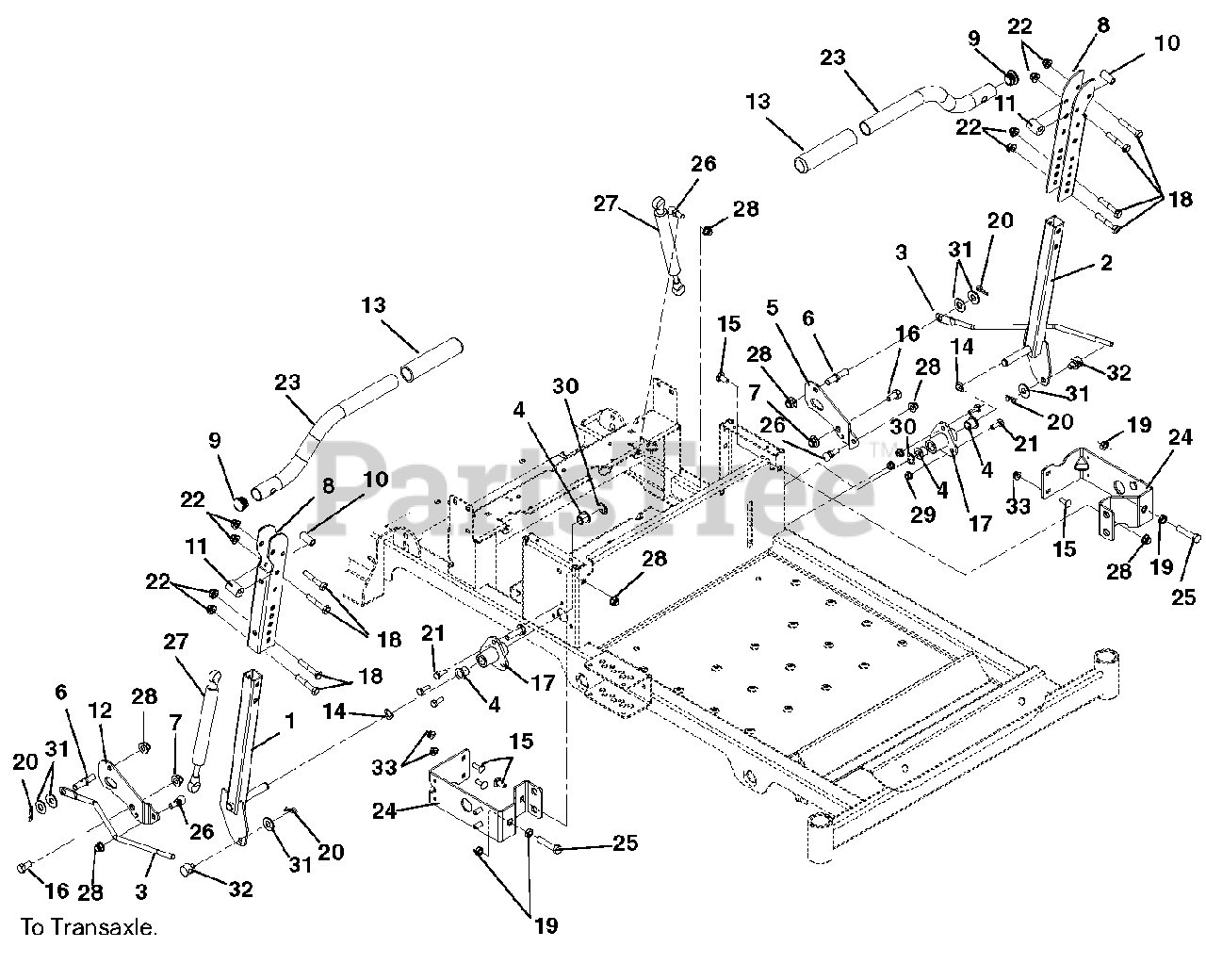

Steering Controls Parts Diagram

  • Title

1

Gravely 03735051

Weldment, RH Control Arm

$65.99

$

Usually ships in 4-12 days

0

2

Gravely 03734951

Weldment, LH Control Arm

$55.99

$

Usually ships in 4-12 days

0

3

Gravely 03765600

Link, Steering

$37.99

$

In Stock, Qty 11

0

4

Gravely 05500908

Bushing, Flanged .500 x .625

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 03766051

Plate, Damper LH

$10.99

$

Usually ships in 4-12 days

0

6

Gravely 03767000

Pin, Trans

$16.99

$

Usually ships in 4-12 days

0

7

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 00481751

Channel, Upper Handlebar

$44.99

$

Usually ships in 4-12 days

0

9

Gravely 07533300

Caplug, Handlebar

$2.49

$

In Stock, only 3 left!

0

10

Gravely 00364900

Bushing

$6.49

$

In Stock, only 1 left!

0

11

Gravely 00372300

Eccentric

$11.99

$

In Stock, only 4 left!

0

12

Gravely 03759351

Plate, Damper RH

$13.99

$

Usually ships in 4-12 days

0

13

Gravely 07518700

Grip, Handlebar
(Superseded to 07500239)

$3.99

$

In Stock, Qty 20+

0

14

Gravely 06436600

Washer, Flat-Steel .505 x .880 x .072
(Superseded to 06401126)

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 06220800

Bolt, Round Head Square Neck .31-18 x .75
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

16

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 03732900

Bushing, Flanged

$25.99

$

Usually ships in 4-12 days

0

18

Gravely 05901328

Bolt, Hex .31-18 x 1.75 Grade 5

$

$

Not available

19

Gravely 06535900

Nut, Hex Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06713500

Pin, Hair Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5 or
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

Gravely 07400034

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06500634

Nut, .31-18 Nyloc Flange

$

$

Not available

23

Gravely 03735151

Handle, Steering

$

$

Not available

24

Gravely 03956251

Bracket, Speed Adjustment/Seat Pivot

$193.99

$

In Stock, only 1 left!

0

25

Gravely 05974000

Bolt, Hex .375-16 x 1.750 Full Thread
(Superseded to 05901612)

$2.99

$

In Stock, only 1 left!

0

26

Gravely 03652200

Stud, Ball

$3.49

$

In Stock, only 3 left!

0

27

Gravely 03943800

Damper

$40.99

$

In Stock, only 2 left!

0

28

Gravely 06545400

Nut, Flange .31-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06543500

Nut, Locking-Top-Flange .25-20 (not used with 07400034, item 21
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 05710200

Ring, Retaining External .500 x .042

$0.99

$

In Stock, Qty 20+

0

31

Gravely 06435900

Washer, Flat Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 01596400

Trunnion, Brake .31-18

$51.99

$

Usually ships in 4-12 days

0

33

Gravely 06500012

Nut, .25-20 Nyloc Flange
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0
