915142 (ZT 42) - Gravely 42" Zero-Turn Mower, Briggs & Stratton (SN: 000101 & Above) Seat And Seat Support Parts Diagram

42" Zero-Turn Mower, Briggs & Stratton

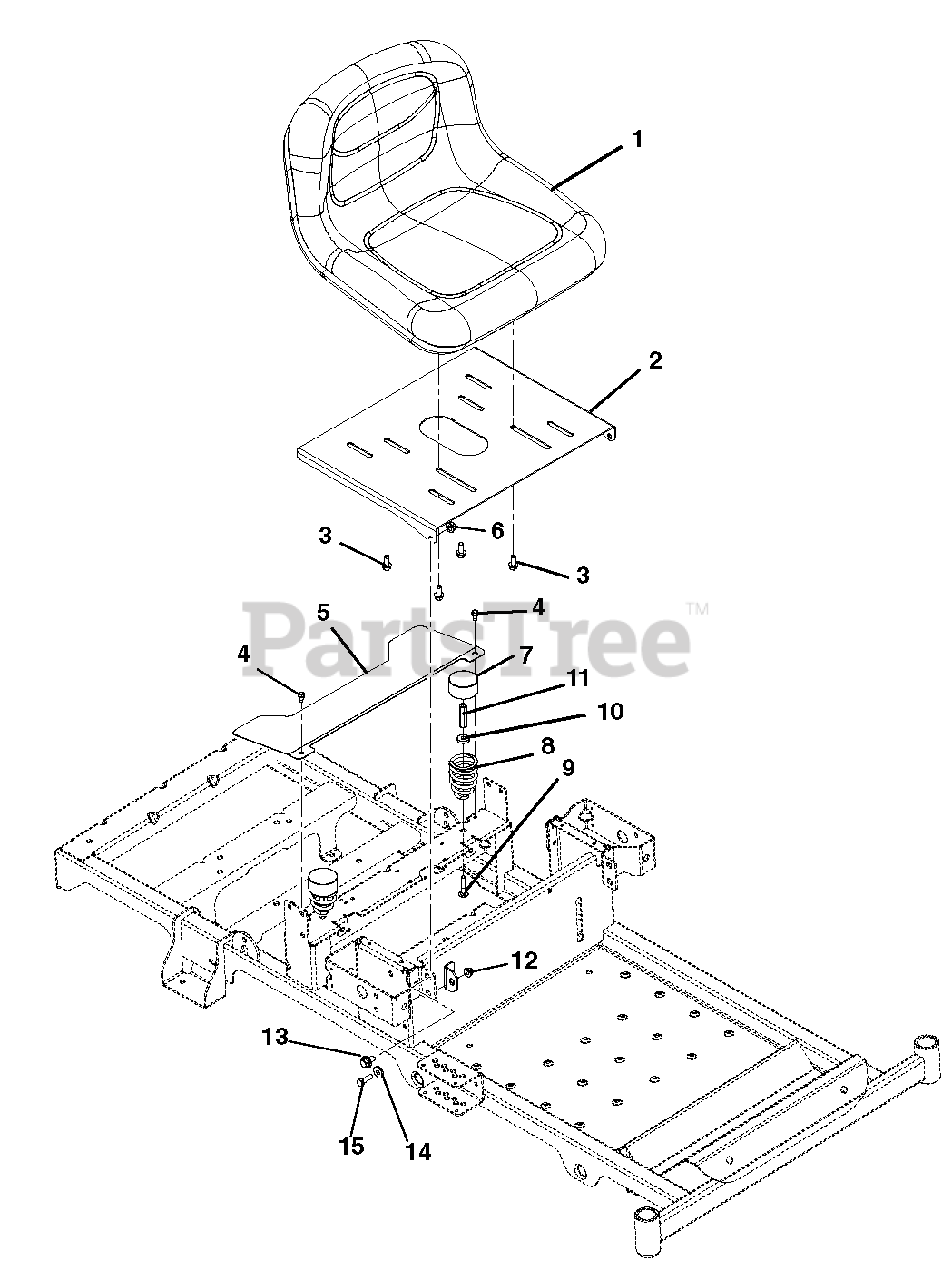

Seat And Seat Support Parts Diagram

  • Title

1

Gravely 03795800

Seat, 13 in Grey (140, 142)

Note: (140, 142)

$

$

Not available

Gravely 03872800

Seat, Milsco XB150 GRAY (144)

Note: (144)

$

$

Not available

2

Gravely 03782051

Seat Plate

$98.99

$

Usually ships in 4-12 days

0

3

Gravely 05900033

Bolt, Hex 5/16-18 x 3/4
(Superseded to 07001820)

$

$

Not available

4

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head Thread
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 03753351

Guard, Fan
(Superseded to 51534500)

$55.99

$

Usually ships in 4-12 days

0

6

Gravely 06542000

Nut, .38-16 Locking Top Flange
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 00337700

Hub Cap

$2.99

$

In Stock, Qty 20+

0

8

Gravely 08300021

Spring, Seat

$20.99

$

Usually ships in 4-12 days

0

9

Gravely 06212100

Bolt, Round Head Square Neck .31-18 x 1.50 Grade 5
(Superseded to 06200233)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06439100

Washer-Flat-Steel .328 x .87 x .179
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

11

Gravely 06500015

Nut, Coupling 5/16-18 x 1 .75
(Superseded to 06500927)

$3.99

$

In Stock, only 1 left!

0

12

Gravely 06545400

Nut, 5/16-18 Flange Nyloc
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 07056700

Bolt, Shoulder .375-16 x .135

$3.99

$

In Stock, only 2 left!

0

14

Gravely 01305900

Bushing, Flange .325 x .499 x .26 x .88

$2.49

$

In Stock, only 1 left!

0

15

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0
