915141 - Ariens Zoom 42" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000101 & Above) Mower Deck Lift Parts Diagram

Zoom 42" Zero-Turn Mower, 16hp Briggs & Stratton

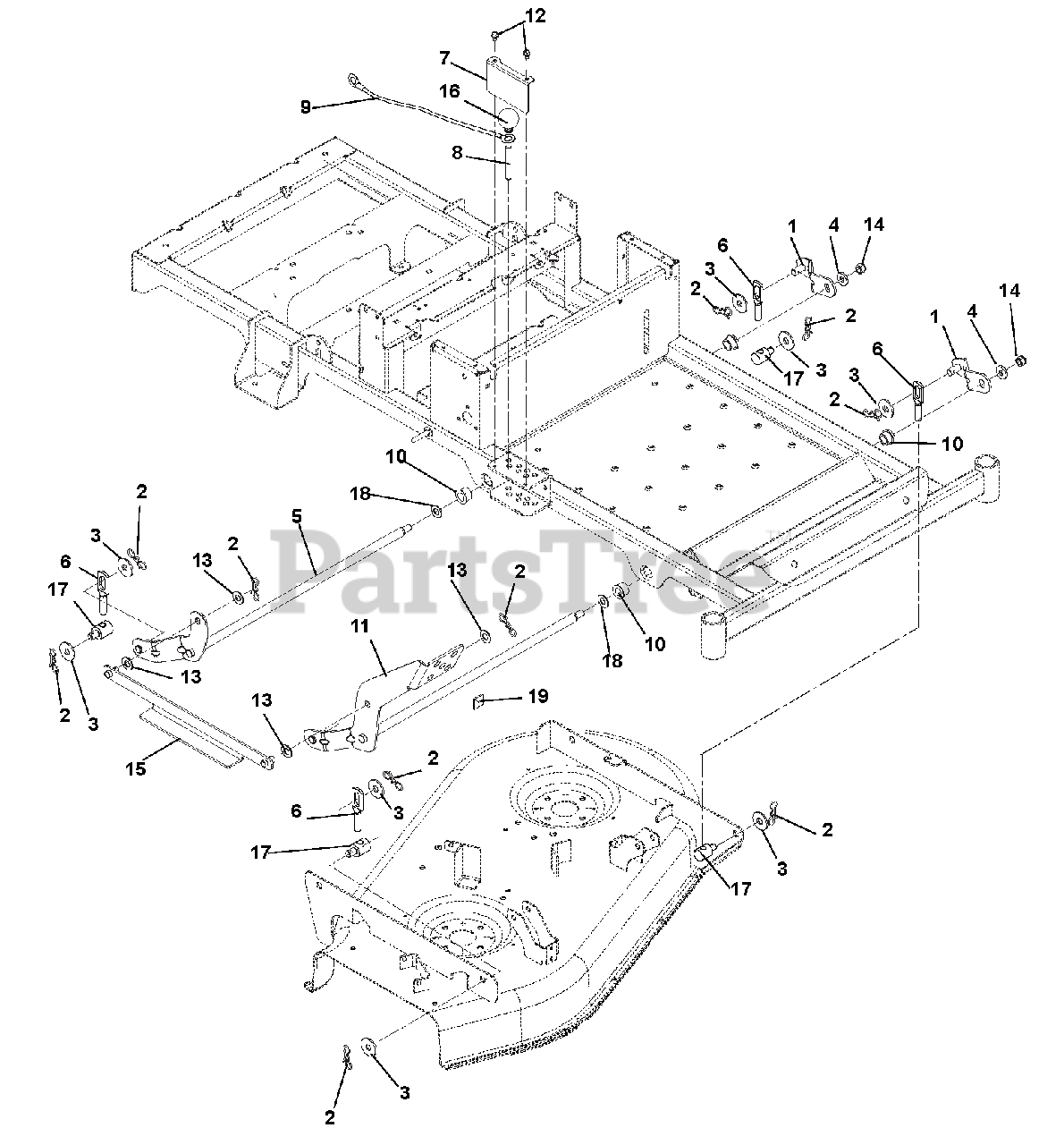

Mower Deck Lift Parts Diagram

  • Title

1

Ariens 03745400

WMT, LIFT ARM

$20.99

$

Usually ships in 4-12 days

0

2

Ariens 06700201

PIN,BOW TIE LOCKING .091X1.875
(Superseded to 06700220)

$1.99

$

In Stock, Qty 20+

0

3

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

4

Ariens 06400903

WSHR-FL-STL .50X1.25X.160 YWZC

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 03746100

WMT, REAR DECK LIFT SHAFT

$109.99

$

Usually ships in 4-12 days

0

6

Ariens 00160000

DECK LINK
(Superseded to 03967600)

$34.99

$

In Stock, only 3 left!

0

7

Ariens 03766151

GUARD, DECK LIFT

$6.49

$

Usually ships in 4-12 days

0

8

Ariens 03755200

PIN, DECK

$43.99

$

Usually ships in 4-12 days

0

9

Ariens 03820800

LANYARD, GALV 12"

$

$

Not available

10

Ariens 05519100

BSHG-FLG .629X.879X.469X1.250

$7.49

$

Usually ships in 4-12 days

0

11

Ariens 03744800

WMT, DECK LIFT PEDAL

$187.99

$

Usually ships in 4-12 days

0

12

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06500633

NUT-LK-NYL .44-20 YWZC

$2.49

$

Usually ships in 4-12 days

0

15

Ariens 03745300

WMT, LIFT LINK

$41.99

$

In Stock, Qty 7

0

16

Ariens 07533500

KNOB,BALL -BLACK 1.47" .375-16

$9.99

$

In Stock, Qty 7

0

17

Ariens 01590400

TRUNNION-.50

$48.99

$

In Stock, only 4 left!

0

18

Ariens 06442800

@WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

19

Ariens 07525100

STOP

$2.49

$

Usually ships in 4-12 days

0
