915140 (ZT 34) - Gravely 34" Zero-Turn Mower, Briggs & Stratton (SN: 000101 & Above) Transaxle, Dump Valves And Rear Wheels Parts Diagram

34" Zero-Turn Mower, Briggs & Stratton

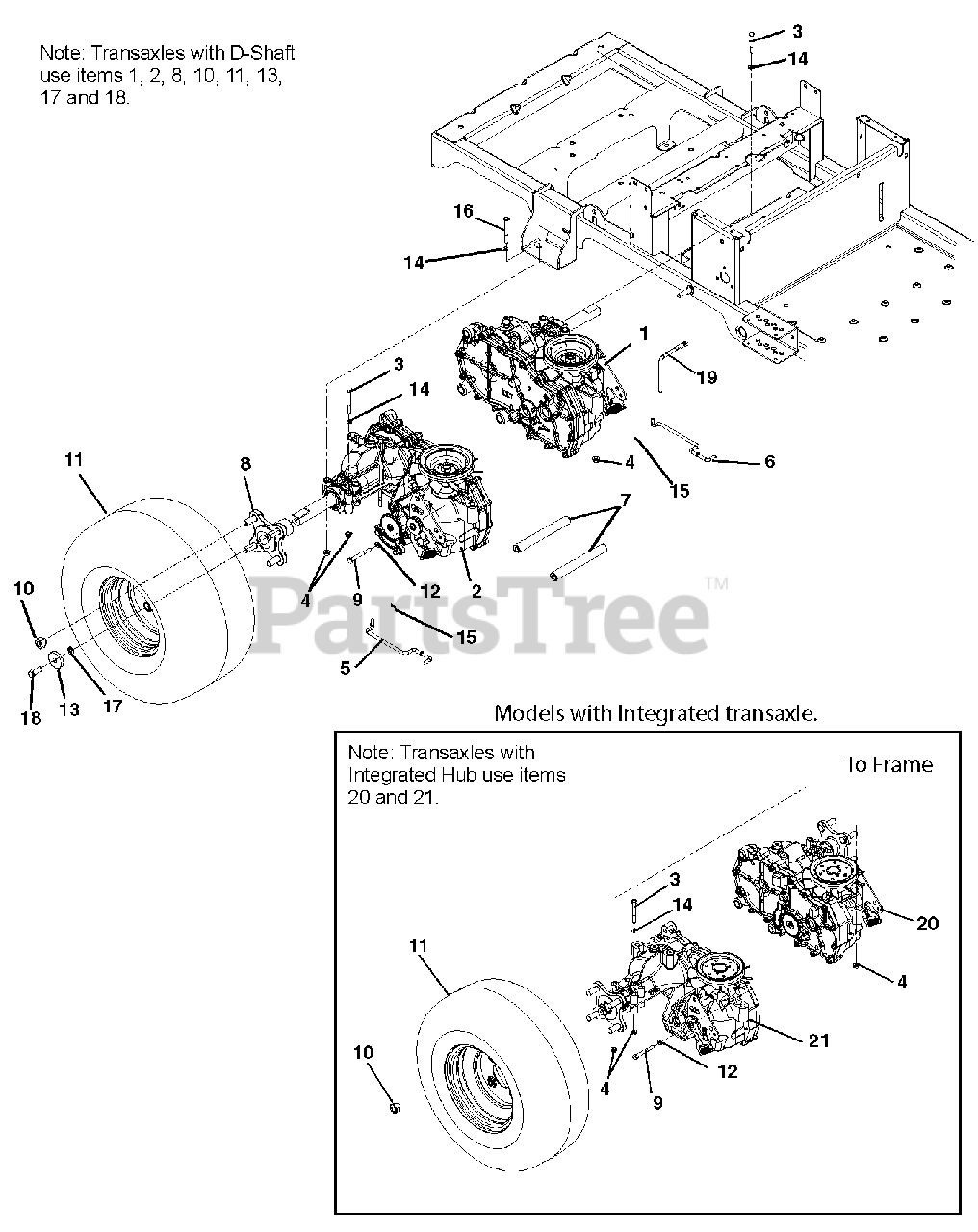

Transaxle, Dump Valves And Rear Wheels Parts Diagram

  • Title

1

Gravely 03872300

Transaxle, Left Hand EZT D-Shaft
(Superseded to 09160551)

$

$

Not available

2

Gravely 03872400

Transaxle, Right Hand EZT D-Shaft
(Superseded to 09160551)

$

$

Not available

3

Gravely 05963700

Bolt, Hex .31-18 x 2.25 Grade 5
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06545400

Nut 5/16-18 Flange Nyloc
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 03762700

Dump Valve, Right Hand

$21.99

$

Usually ships in 4-12 days

0

6

Gravely 03762800

Dump Valve, Left Hand

$28.99

$

Usually ships in 4-12 days

0

7

Gravely 03762000

Shaft, Cross Brace

$45.99

$

In Stock, only 2 left!

0

8

Gravely 03958000

Assembly, Wheel Hub

$

$

Not available

9

Gravely 05958400

Bolt-Hex .38-16 x 2.50 Grade 5
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 06517600

Nut, Wheel .50-20 13/16
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07100123

Tire/Wheel Assembly, 18 x 8.5-8 Center (142)

Note: (142)

$125.99

$

Usually ships in 4-12 days

0

Gravely 07100233

Tire/Wheel Assembly, 18 x 9.50-8 Offset (144)

Note: (144)

$170.99

$

In Stock, only 2 left!

0

12

Gravely 06444000

Washer, Flat Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.49

$

In Stock, Qty 7

0

13

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

14

Gravely 06435700

Washer, Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06701900

Pin-Hair-Internal .06 x .18 x .77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 15

0

16

Gravely 05960600

Bolt, Hex .31-18 x 2.75
(Superseded to 05901807)

$2.49

$

In Stock, only 2 left!

0

17

Gravely 06308800

Washer, Locking .38 x .094 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 03956151

Belt Finger (141)

Note: (141)

$

$

Not available

20

Gravely 03762200

Transaxle, EZT Short Left Hand

$903.99

$

Usually ships in 4-12 days

0

21

Gravely 03762300

Transaxle, EZT Short Right Hand

$

$

Not available
