915140 (ZT 34) - Gravely 34" Zero-Turn Mower, Briggs & Stratton (SN: 000101 & Above) Belt Covers And Blades Parts Diagram

34" Zero-Turn Mower, Briggs & Stratton

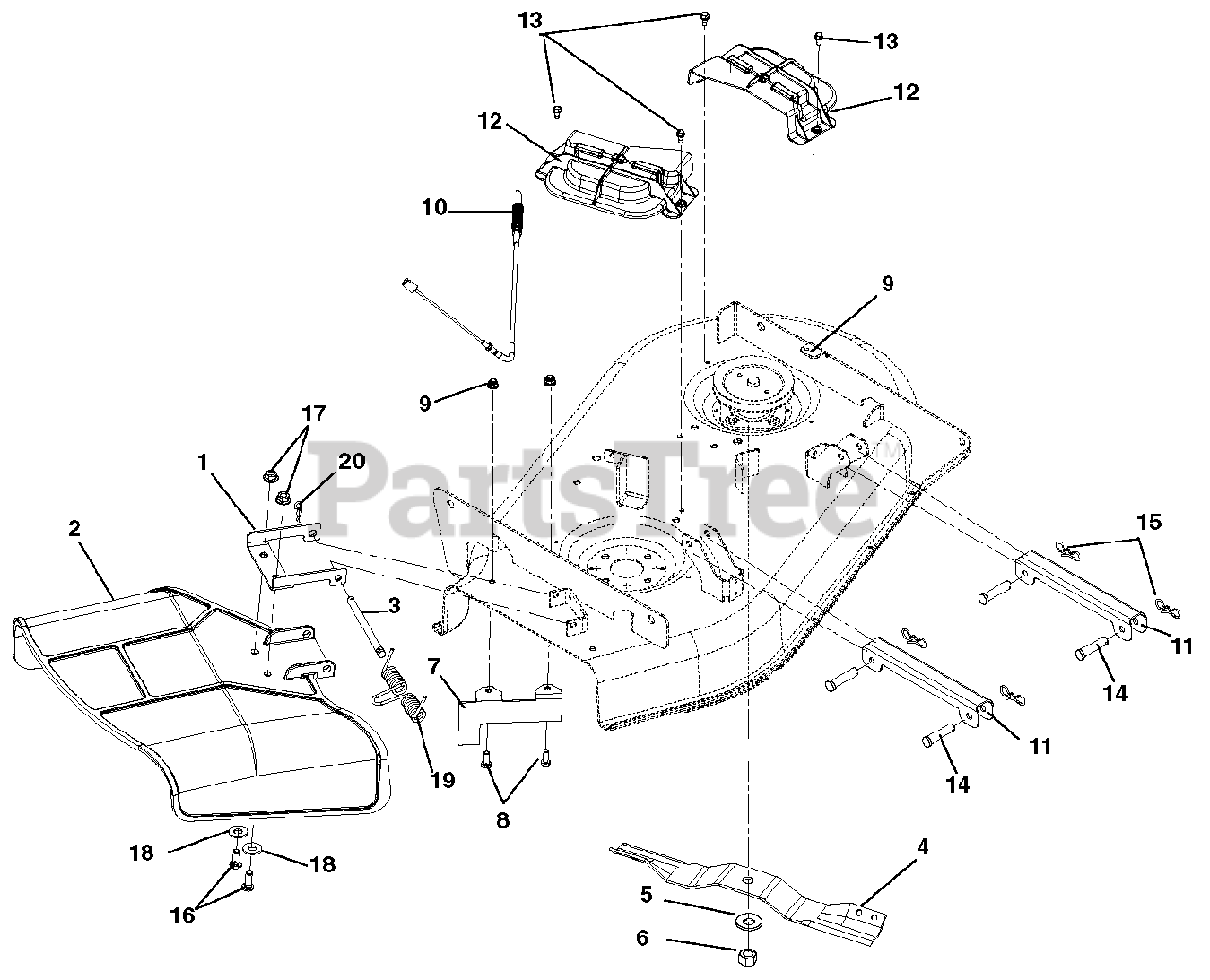

Belt Covers And Blades Parts Diagram

  • Title

1

Gravely 00662653

Chute Reinforcement

$

$

Not available

2

Gravely 03994300

Molded Chute

$54.99

$

In Stock, only 1 left!

0

3

Gravely 06800002

Pin, 5/16 x 3.88"

$9.49

$

Usually ships in 4-12 days

0

4

Gravely 03746500

Blade, 17.2" x .156 (SN - 000101 thru 011621)
(Superseded to 03971900)

Note: (SN - 000101 thru 011621)

$23.99

$

In Stock, Qty 20+

0

Gravely 03971900

Blade, Mower 17.35 (SN - 011622 and up)

Note: (SN - 011622 and up)

$23.99

$

In Stock, Qty 20+

0

5

Gravely 06445700

Washer, Beveled .63 x 1.625 x .14

$4.99

$

In Stock, Qty 20+

0

6

Gravely 06500630

Nut, Hex .62-18
(Superseded to 06500920)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 03779253

Bracket, Baffle Discharge 34"

$21.99

$

Usually ships in 4-12 days

0

8

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06900338

Cable, PTO

$62.99

$

In Stock, only 1 left!

0

11

Gravely 03764053

Bracket, Stabilizer Link

$45.99

$

Usually ships in 4-12 days

0

12

Gravely 03796000

Cover, Belt Molded

$62.99

$

In Stock, only 1 left!

0

13

Gravely 07400034

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06800102

Pin, Clevis .375 x 2.00

$3.99

$

In Stock, Qty 14

0

15

Gravely 06700206

Pin , Bow Tie Locking
(Superseded to 06700225)

$3.99

$

In Stock, only 4 left!

0

16

Gravely 05920900

Screw, .31-18 x .75

$3.99

$

In Stock, only 2 left!

0

17

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06435700

Washer, Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 01258100

Spring, Torsion

$9.49

$

In Stock, Qty 8

0

20

Gravely 06713500

Pin, Hair .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0
