915139 (2548) - Ariens Zoom XL 48" Zero-Turn Mower, 25hp Kohler (SN: 000101 - 005999) Anti-Scalp Wheels Parts Diagram

Zoom XL 48" Zero-Turn Mower, 25hp Kohler

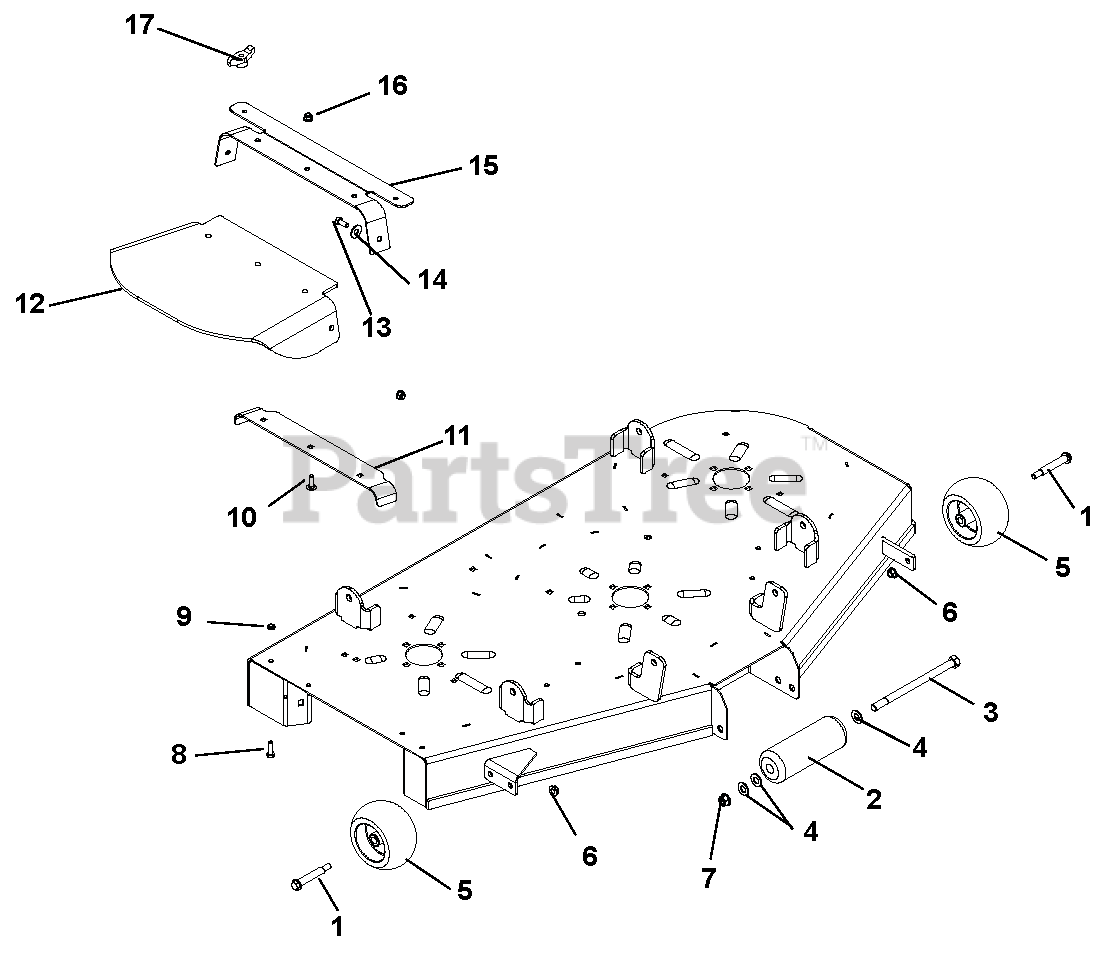

Anti-Scalp Wheels Parts Diagram

  • Title

1

Ariens 07056800

BLT-SHLDR .38-16X2.50 HWH G5

$6.99

$

In Stock, Qty 20+

0

2

Ariens 03114100

ROLLER

$22.99

$

In Stock, Qty 20+

0

3

Ariens 05968400

@BLT-HEX .50-13X8.00 GR5 YWZC

$7.99

$

In Stock, only 1 left!

0

4

Ariens 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 20+

0

5

Ariens 03471700

WHEEL 5 X 3
(Superseded to 03905600)

$15.99

$

In Stock, Qty 20+

0

6

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06540600

@NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

8

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06500011

@NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$0.99

$

In Stock, only 3 left!

0

10

Ariens 06200007

@BLT-RHDSSQNK .31-18X1.00 G5YZ
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

11

Ariens 03262359

BRKT-CHUTE BRACE, INNER
(Superseded to 03262300)

$30.99

$

Usually ships in 4-12 days

0

12

Ariens 02973600

CHUTE-DISCHARGE, RUBBER

$45.99

$

In Stock, only 3 left!

0

13

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 02975859

BRKT-CHUTE

$68.99

$

Usually ships in 4-12 days

0

16

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0
