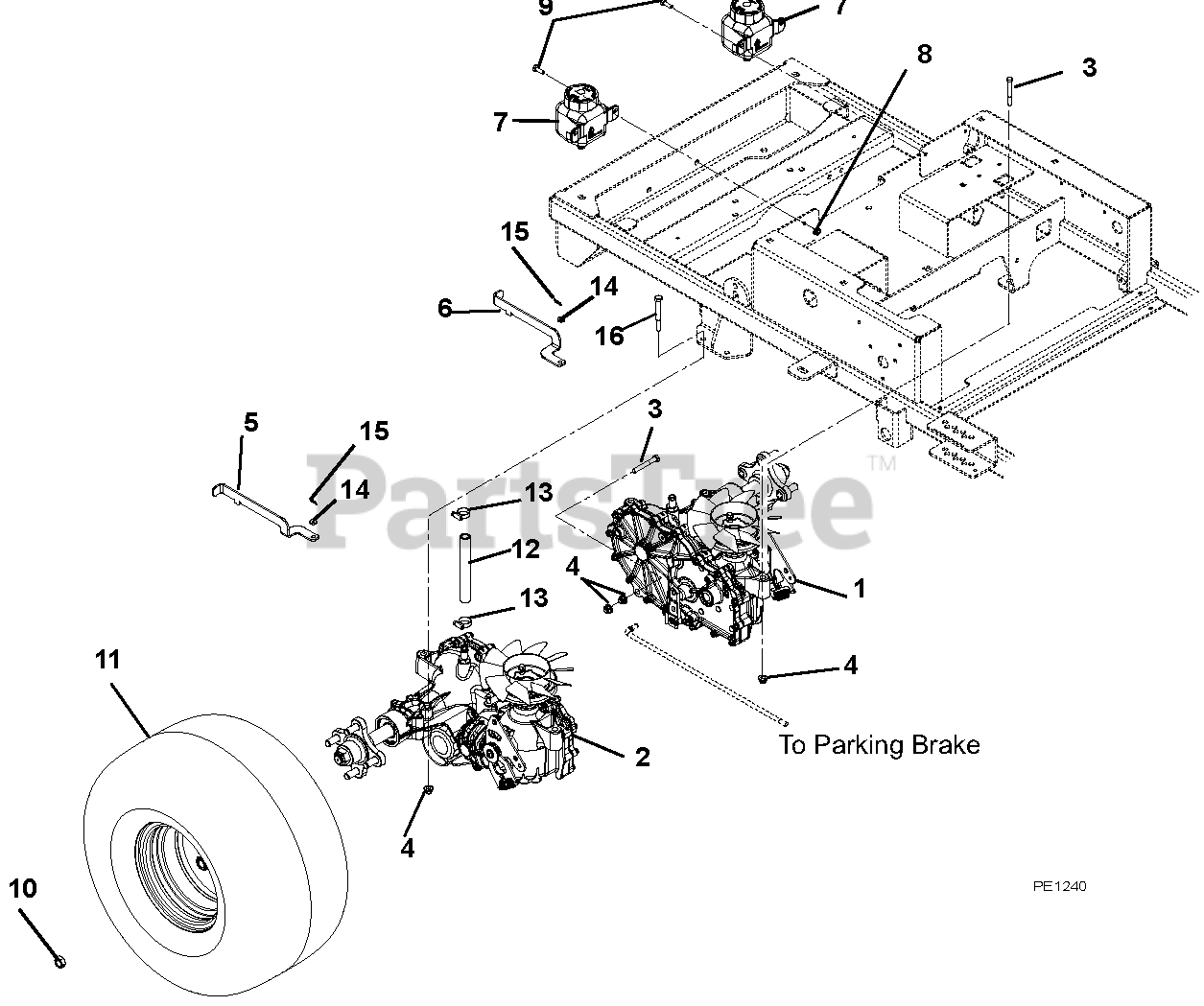

915136 (ZT XL 2548) - Gravely 48" Zero-Turn Mower, 25hp Kohler (SN: 006000 & Above) Transaxles, Dump Valves, Rear Wheels Parts Diagram

48" Zero-Turn Mower, 25hp Kohler

Transaxles, Dump Valves, Rear Wheels Parts Diagram

  • Title

1

Gravely 03265700

Transaxle, ZT2800 Left Hand
(Superseded to 04828600)

$1293.99

$

Usually ships in 4-12 days

0

2

Gravely 03265800

Transaxle, ZT2800 Right Hand
(Superseded to 04828500)

$1293.99

$

Usually ships in 4-12 days

0

3

Gravely 05963700

Bolt, Hex .31-18 x 2.25 Grade 5
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06545400

Nut 5/16-18 Flange Nyloc
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 02996351

Dump Valve, Right Hand

$19.99

$

Usually ships in 4-12 days

0

6

Gravely 02992151

Dump Valve, Left Hand

$21.99

$

Usually ships in 4-12 days

0

7

Gravely 02970200

Tank, Expansion ZT2800

$34.99

$

In Stock, only 2 left!

0

8

Gravely 06543500

Nut, Locking-Top-Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06517600

Nut, Wheel .50-20 13/16
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07100513

Tire/Wheel Assembly, 20 x 10.0-8 Center (915136, 138)

Note: (915136, 138)

$182.99

$

Usually ships in 4-12 days

0

Gravely 07100737

Tire/Wheel Assembly, 20 x 8.0-8 (915110, 134)

Note: (915110, 134)

$136.99

$

Usually ships in 4-12 days

0

12

Gravely 07500039

Hose, Oil Reservior

$6.99

$

Usually ships in 4-12 days

0

13

Gravely 06923500

Clamp, .88 Diameter Hose

$1.99

$

In Stock, Qty 6

0

14

Gravely 06439500

Washer-Flat-Steel .265 x .50 x .087
(Superseded to 06401120)

$1.49

$

Usually ships in 4-12 days

0

15

Gravely 06701900

Pin-Hair-Internal .06 x .18 x .77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 13

0

16

Gravely 05960600

Bolt, Hex .31-18 x 2.75
(Superseded to 05901807)

$2.49

$

In Stock, only 2 left!

0
