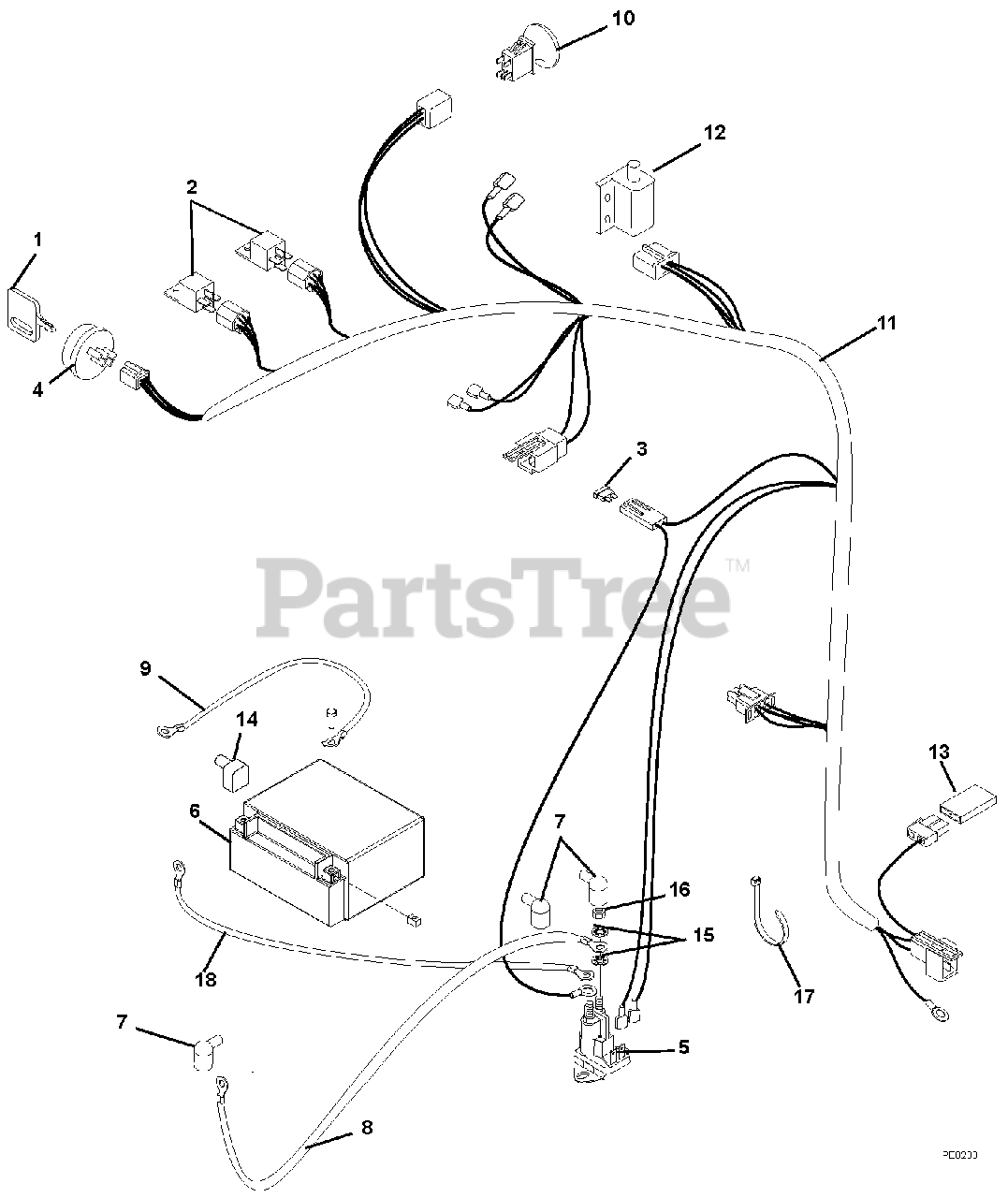

915134 (ZT XL 2042) - Gravely 42" Zero-Turn Mower, 20hp Kohler (SN: 000101 - 005999) Electrical System Parts Diagram

42" Zero-Turn Mower, 20hp Kohler

Electrical System Parts Diagram

  • Title

1

Gravely 02460700

Key with Cap

$7.99

$

In Stock, Qty 20+

0

2

Gravely 03042800

Relay
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

3

Gravely 09351100

Fuse, 30 AMP
(Superseded to 08961800)

$3.99

$

In Stock, only 4 left!

0

4

Gravely 01588300

Key Switch

$30.99

$

In Stock, only 1 left!

0

5

Gravely 00696900

Solenoid
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

6

Gravely 02970100

Battery (includes mounting hardware)

Note: (includes mounting hardware)

$

$

Not available

Gravely 05975900

Replacement bolt for battery
(Superseded to 05902026)

$0.99

$

In Stock, only 2 left!

0

7

Gravely 07533200

Boot, Eyelet Terminal

$3.49

$

In Stock, only 2 left!

0

8

Gravely 02974700

Starter Cable

$21.99

$

Usually ships in 4-12 days

0

9

Gravely 02974600

Ground Cable

$21.99

$

Usually ships in 4-12 days

0

10

Gravely 01545600

Switch, Clutch With Retainer

$25.99

$

In Stock, Qty 20+

0

11

Gravely 02974500

Harness, ZTXL/ZoomXL

$214.99

$

Usually ships in 4-12 days

0

12

Gravely 03606600

Switch, Double Pole N.O. / N.O.

$17.99

$

In Stock, only 1 left!

0

13

Gravely 09293500

Diode, Connector Shell
(Superseded to 09293501)

$11.99

$

In Stock, only 2 left!

0

14

Gravely 07505700

Insulator

$9.49

$

Usually ships in 4-12 days

0

15

Gravely 06310500

Washer, Locking .31

$0.99

$

In Stock, only 3 left!

0

16

Gravely 06536700

Nut, Jam .31-24
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

17

Gravely 07517300

Cable Tie

$

$

Not available

18

Gravely 02974800

Starter Cable

$17.99

$

In Stock, only 2 left!

0
