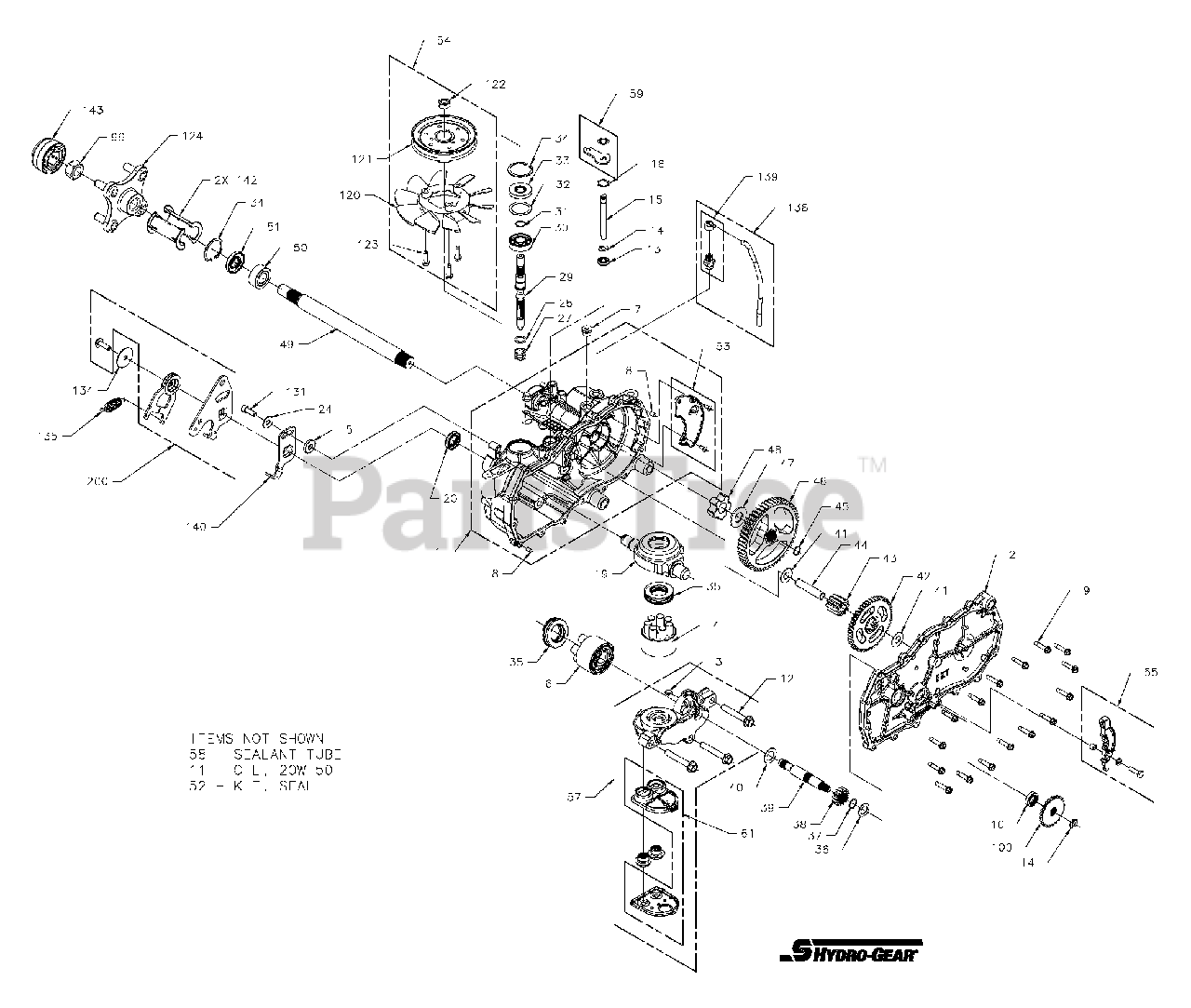

915133 (2040) - Ariens Zoom 40" Zero-Turn Mower, 20hp Kohler (SN: 000101 & Above) Transaxle-Right Parts Diagram

Zoom 40" Zero-Turn Mower, 20hp Kohler

Transaxle-Right Parts Diagram

  • Title

1

ASSEMBLY, MAIN HOUSING-RH

Note: HydroGear p/n: 70862R

$

$

Not available

2

ASSEMBLY, SIDE-RH

Note: HydroGear p/n: 70863R

$

$

Not available

3

PLATE, BYPASS

Note: HydroGear p/n: 51448

$

$

Not available

4

Ariens 21543921

ASSY, BLOCK 7 PISTON

Note: HydroGear p/n: 70723

$142.99

$

Usually ships in 4-12 days

0

5

SPACER, .320 X 1.005

Note: HydroGear p/n: 52527

$

$

Not available

6

Ariens 21543889

KIT, 10 CC BLOCK

Note: HydroGear p/n: 70331

$101.99

$

Usually ships in 4-12 days

0

7

PLUG, SAE #6

Note: HydroGear p/n: 9005110-5600

$

$

Not available

8

PIN, STAINLESS, HEADLESS

Note: HydroGear p/n: 9004800-2506

$

$

Not available

9

HFHCS 1/4-20 X 1.25 (SELF-TAPPING)

Note: HydroGear p/n: 53246

$

$

Not available

10

Ariens 21543920

KIT, SEAL

Note: HydroGear p/n: 70719

$

$

Not available

11

OIL, 20W-50

Note: HydroGear p/n: N/A

$

$

Not available

12

BOLT, HEX FLANGE 3/8-24 X 2.5

Note: HydroGear p/n: 50016

$

$

Not available

13

Ariens 21543845

SEAL, LIP .375X.75X.25

Note: HydroGear p/n: 51626

$9.49

$

Usually ships in 4-12 days

0

14

Ariens 21543845

SEAL, LIP .375X.75X.25

Note: HydroGear p/n: 51628

$9.49

$

Usually ships in 4-12 days

0

15

ROD, BYPASS

Note: HydroGear p/n: 51625

$

$

Not available

16

RING, RETAINING .750 INT

Note: HydroGear p/n: 51627

$

$

Not available

19

Ariens 21543783

TRUNNION, SWASHPLATE

Note: HydroGear p/n: 51048

$70.99

$

Usually ships in 4-12 days

0

20

Ariens 21543809

SEAL, LIP 18X32X7

Note: HydroGear p/n: 51140

$9.49

$

Usually ships in 4-12 days

0

24

WASHER, FLAT 11/32 ID X 7/8 OD X 1/16

Note: HydroGear p/n: 44130

$

$

Not available

27

SPRING-HELICAL COMPRESSION

Note: HydroGear p/n: 2003014

$

$

Not available

28

Ariens 08609400

WASHER. THRUST .59 X .79 X .04

Note: HydroGear p/n: 2003017

$1.99

$

In Stock, only 1 left!

0

29

Ariens 21543785

SHAFT, INPUT

Note: HydroGear p/n: 51062

$96.99

$

Usually ships in 4-12 days

0

30

Ariens 21543738

BRG, BALL 17X40X12

Note: HydroGear p/n: 50315

$19.99

$

Usually ships in 4-12 days

0

31

RING, RETAINING WIRE .561 ID

Note: HydroGear p/n: 2000022

$

$

Not available

32

SPACER

Note: HydroGear p/n: 50951

$

$

Not available

33

Ariens 21543816

SEAL, LIP 17X40X7

Note: HydroGear p/n: 51161

$14.99

$

Usually ships in 4-12 days

0

34

Ariens 21543741

RING, RET 1.56 INT

Note: HydroGear p/n: 50329

$6.99

$

Usually ships in 4-12 days

0

35

Ariens 08609100

BEARING. THRUST 30 X 52 X 13

Note: HydroGear p/n: 50551

$17.99

$

Usually ships in 4-12 days

0

36

WASHER, FLAT 5/8 ID X 1.0 OD X .05

Note: HydroGear p/n: 44371

$

$

Not available

37

RING, RETAINING

Note: HydroGear p/n: 44145

$

$

Not available

38

GEAR, PINION, 13T

Note: HydroGear p/n: 51130

$

$

Not available

39

SHAFT, MOTOR

Note: HydroGear p/n: 51632

$

$

Not available

40

WASHER, MOTOR SHAFT .71 ID X 1.16 OD X .04

Note: HydroGear p/n: 51069

$

$

Not available

41

WASHER, HT .5 ID X 1.0 OD X.032

Note: HydroGear p/n: 50132

$

$

Not available

42

GEAR, 10T/48T

Note: HydroGear p/n: 51129

$

$

Not available

43

GEAR, 10T JACKSHAFT

Note: HydroGear p/n: 51043

$

$

Not available

44

PIN, JACKSHAFT

Note: HydroGear p/n: 51083

$

$

Not available

45

Ariens 21543710

RING, RET - SPIRAL

Note: HydroGear p/n: 44871

$2.49

$

Usually ships in 4-12 days

0

46

GEAR, 52T BULL

Note: HydroGear p/n: 51633

$

$

Not available

47

WASHER, 3/4 ID X 1-1/2 OD X .13

Note: HydroGear p/n: 44875

$

$

Not available

48

BEARING, SLEEVE (INBOARD)

Note: HydroGear p/n: 51088

$

$

Not available

49

SHAFT, AXLE

Note: HydroGear p/n: 52528

$

$

Not available

50

Ariens 21543795

BUSHING, SLEEVE

Note: HydroGear p/n: 51089

$

$

Not available

51

Ariens 21543787

SEAL, LIP .750 X 1.577 X

Note: HydroGear p/n: 51066

$4.99

$

Usually ships in 4-12 days

0

52

Ariens 21543935

KIT, SEALS AND RETAINING

Note: HydroGear p/n: 70853

$80.99

$

In Stock, only 1 left!

0

53

KIT, EXPANSION PLATE, RH

Note: HydroGear p/n: 70868R

$

$

Not available

54

KIT, FAN-PULLEY

Note: HydroGear p/n: 71699

$

$

Not available

55

Ariens 00951000

BRAKE ARM, EZT #70865
(Superseded to 51517600)

Note: HydroGear p/n: 70865

$28.99

$

In Stock, only 3 left!

0

57

KIT, CENTER SECTION-FILTER RH, 7P

Note: HydroGear p/n: 71530

$

$

Not available

58

Ariens 21543771

SEALANT TUBE 10.1OZ.

Note: HydroGear p/n: 50928

$116.99

$

In Stock, only 1 left!

0

59

KIT, BYPASS ARM

Note: HydroGear p/n: 70891

$

$

Not available

61

KIT, FILTER

Note: HydroGear p/n: 71497

$

$

Not available

99

Ariens 08621100

NUT, HEX, LOCK 3/4-16

Note: HydroGear p/n: 50863

$7.49

$

Usually ships in 4-12 days

0

100

Ariens 21543851

DISC, COG BRAKE

Note: HydroGear p/n: 51635

$21.99

$

In Stock, only 1 left!

0

120

FAN, 7", 10 BLADE

Note: HydroGear p/n: 52735

$

$

Not available

121

Ariens 21543736

FAN PULLEY KIT 4.5X1.625

Note: HydroGear p/n: 50302

$80.99

$

Usually ships in 4-12 days

0

122

HEX LOCK NUT, 1/2-20

Note: HydroGear p/n: 44133

$

$

Not available

123

HFHCS 1/4-20 X .875

Note: HydroGear p/n: 51076

$

$

Not available

124

Ariens 21543888

KIT, HUB 1/2-20

Note: HydroGear p/n: 70314

$163.99

$

Usually ships in 4-12 days

0

131

SHCS, 5/16-24 X 1.00 (PATCH)

Note: HydroGear p/n: 51616

$

$

Not available

134

Ariens 21543871

WASHER

Note: HydroGear p/n: 51950

$6.49

$

Usually ships in 4-12 days

0

135

Ariens 21543876

SPRING, EXTENSION

Note: HydroGear p/n: 52401

$4.99

$

In Stock, only 2 left!

0

138

KIT, BREATHER ASSEMBLY

Note: HydroGear p/n: 71510

$

$

Not available

139

KIT, BREATHER

Note: HydroGear p/n: 71524

$

$

Not available

140

ARM, NEUTRAL

Note: HydroGear p/n: 51945

$

$

Not available

142

TUBE, AXLE, 2.86, SPLIT

Note: HydroGear p/n: 53093

$

$

Not available

143

CAP, AXLE

Note: HydroGear p/n: 53088

$

$

Not available

200

KIT, RTN ASSEMBLY, RH

Note: HydroGear p/n: 71588

$

$

Not available
