915133 (2040) - Ariens Zoom 40" Zero-Turn Mower, 20hp Kohler (SN: 000101 & Above) Electrical System Parts Diagram

Zoom 40" Zero-Turn Mower, 20hp Kohler

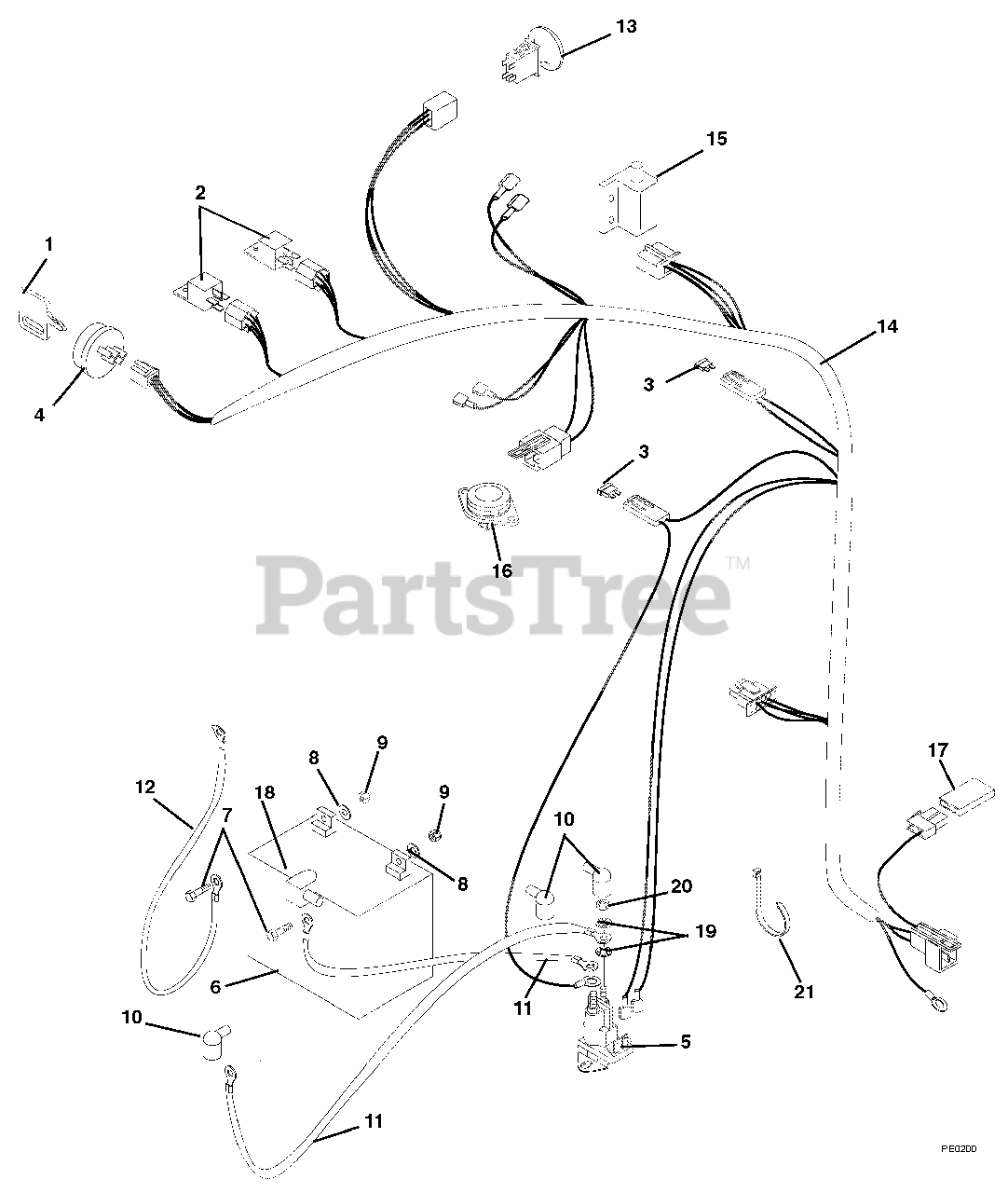

Electrical System Parts Diagram

  • Title
1

Ariens 02460700

KEY -W/CAP

$7.99

$

In Stock, Qty 20+

0

2

Ariens 03042800

RELAY
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

3

Ariens 09351100

FUSE-25 AMP ATC TYPE
(Superseded to 08961800)

$3.99

$

In Stock, only 4 left!

0

4

Ariens 01588300

KEY SWITCH

$30.99

$

In Stock, only 1 left!

0

5

Ariens 00696900

SOLENOID, HP RTV
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

6

Battery, Exide Sealed Maintenance Free U1-250 (Purchase replacement locally)

Note: (Purchase replacement locally)

$

$

Not available

7

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06509200

NUT-KEPS .250-20
(Superseded to 06500921)

$1.49

$

In Stock, only 1 left!

0

10

Ariens 07533200

BOOT, EYELET TERMINAL

$3.49

$

In Stock, only 3 left!

0

11

Ariens 02727200

STARTER CABLE 13"
(Superseded to 02727201)

$20.99

$

In Stock, Qty 9

0

12

Ariens 03111100

GROUND CABLE .31X22.00X.31
(Superseded to 03111101)

$20.99

$

In Stock, only 1 left!

0

13

Ariens 01545600

SWITCH, CLUTCH

$25.99

$

In Stock, Qty 20+

0

14

Ariens 00347900

WIRE HARNESS
(Superseded to 00347901)

$125.99

$

In Stock, only 4 left!

0

15

Ariens 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

16

Ariens 02754100

SWITCH- SNAP MTG N.O.

Note: (N.O.)

$9.49

$

In Stock, Qty 20+

0

17

Ariens 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$11.99

$

In Stock, only 3 left!

0

18

Ariens 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

19

Ariens 06310500

WSHR-LOCK INT .31 YWZC

$0.99

$

In Stock, only 3 left!

0

20

Ariens 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

21

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available
