915131 - Ariens Zoom 34" Zero-Turn Mower, 13hp Briggs & Stratton (SN: 000101 - 009999) Transaxle, Dump Valves And Rear Wheels Parts Diagram

Zoom 34" Zero-Turn Mower, 13hp Briggs & Stratton

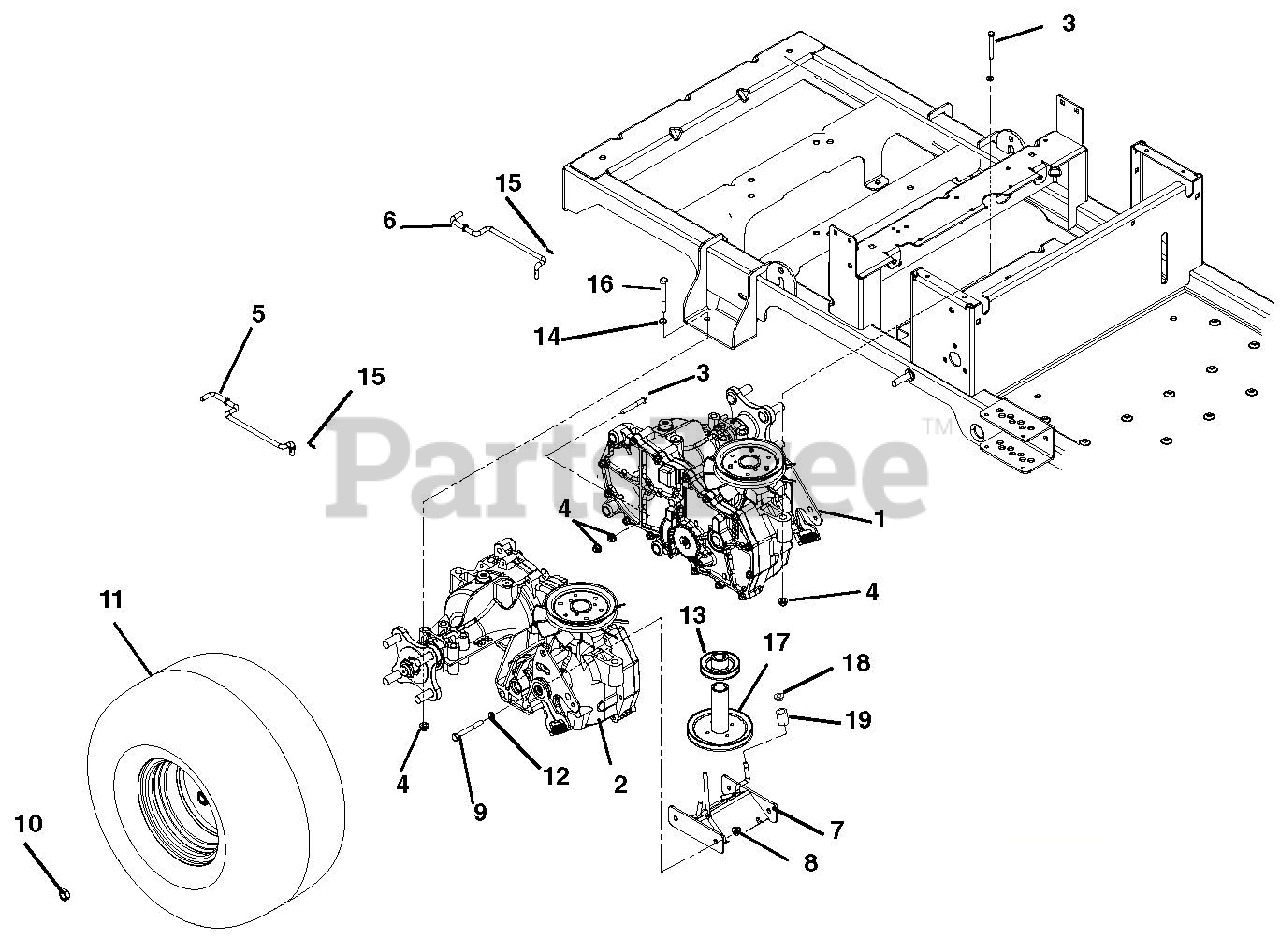

Transaxle, Dump Valves And Rear Wheels Parts Diagram

  • Title

1

Ariens 03762200

TRANSAXLE, LH EZT SHORT

$903.99

$

Usually ships in 4-12 days

0

2

Ariens 03762300

TRANSAXLE, RH EZT SHORT

$

$

Not available

3

Ariens 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 03762700

DUMPVALVE, RH LCZ

$21.99

$

Usually ships in 4-12 days

0

6

Ariens 03762800

DUMPVALVE, LH LCZ

$28.99

$

Usually ships in 4-12 days

0

7

Ariens 03819551

WMT, TRANSAXLE BRACE

$92.99

$

Usually ships in 4-12 days

0

8

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

10

Ariens 06517600

WHEEL NUT .500-20 YZ
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 07100738

TIRE-ASM 18X6.5-8 2 PLY OFFSET

$

$

Not available

12

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

13

Ariens 03770800

WMT-SHEAVE, GROUND DRIVE
(Superseded to 07332700)

$83.99

$

Usually ships in 4-12 days

0

14

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 13

0

16

Ariens 05960600

@BLT-HEX .31-18X2.75 GR5 YWZC
(Superseded to 05901807)

$2.49

$

In Stock, only 2 left!

0

17

Ariens 03766700

WMT-SHEAVE, PTO DRIVE

$

$

Not available

18

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

19

Ariens 03877000

SPACER-.75X.335X.75

$21.99

$

Usually ships in 4-12 days

0
