915131 - Ariens Zoom 34" Zero-Turn Mower, 13hp Briggs & Stratton (SN: 000101 - 009999) Steering Controls Parts Diagram

Zoom 34" Zero-Turn Mower, 13hp Briggs & Stratton

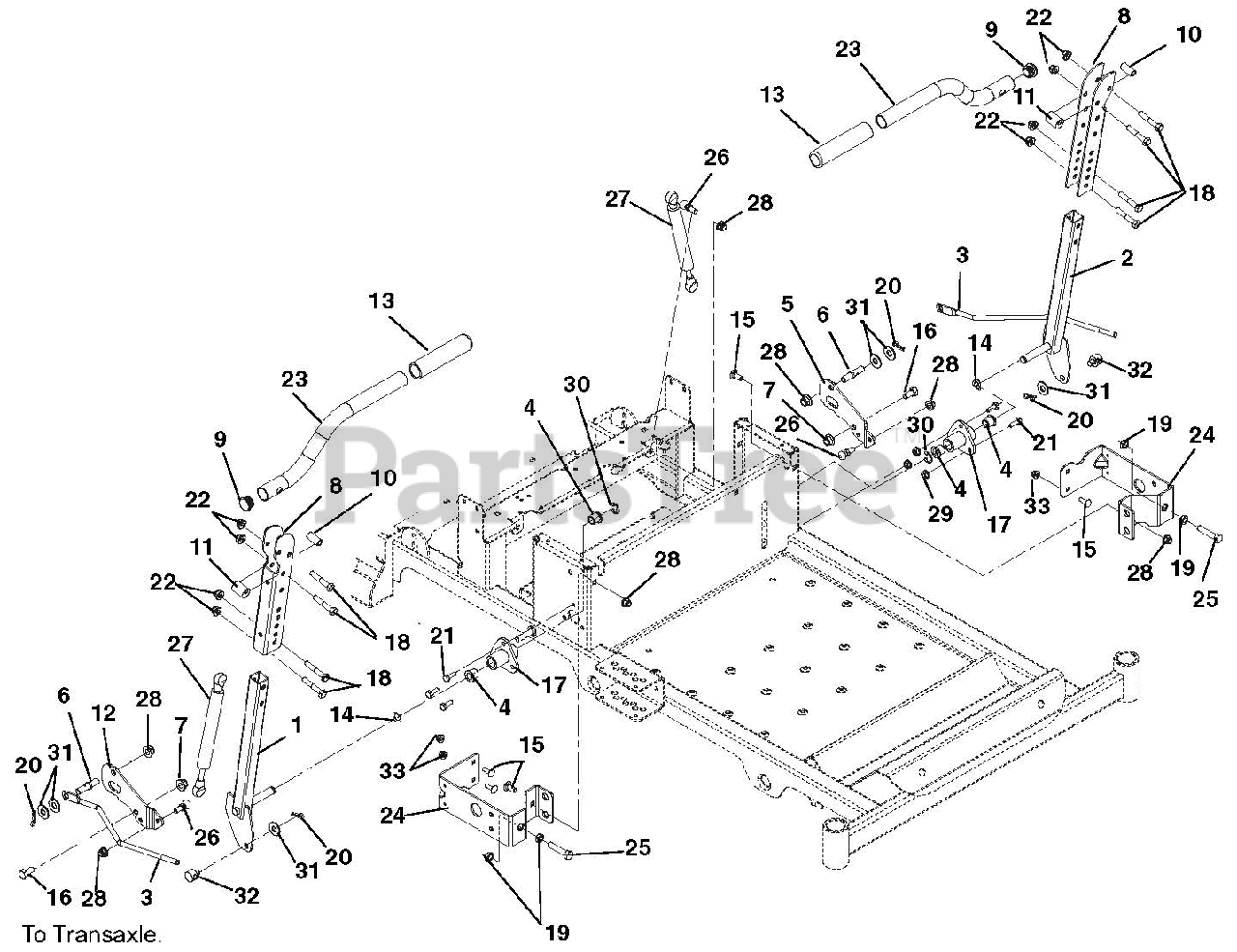

Steering Controls Parts Diagram

  • Title

1

Ariens 03735051

WMT, RH CONTROL ARM

$65.99

$

Usually ships in 4-12 days

0

2

Ariens 03734951

WMT, LH CONTROL ARM

$55.99

$

Usually ships in 4-12 days

0

3

Ariens 03765600

LINK, STEERING

$37.99

$

In Stock, Qty 12

0

4

Ariens 05500908

BSHG, FLG .500X.625.620X.857

$3.49

$

Usually ships in 4-12 days

0

5

Ariens 03766051

PLATE, DAMPER (LH)

$10.99

$

Usually ships in 4-12 days

0

6

Ariens 03767000

PIN, TRANS

$16.99

$

Usually ships in 4-12 days

0

7

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 00481751

CHANNEL, UPPER HANDLEBAR

$44.99

$

Usually ships in 4-12 days

0

9

Ariens 07533300

CAPLUG, HANDLEBAR

$2.49

$

In Stock, only 3 left!

0

10

Ariens 00364900

BSHG, SPCR .330X.500X1.01 PM

$6.49

$

In Stock, only 2 left!

0

11

Ariens 00372300

BSHG,ECCEN .328X.750X1.01 PM

$11.99

$

In Stock, only 4 left!

0

12

Ariens 03759351

PLATE, DAMPER RH

$13.99

$

Usually ships in 4-12 days

0

13

Ariens 01570000

GRIP - HANDLEBAR

$17.99

$

In Stock, only 2 left!

0

14

Ariens 06400005

WSHR-WAVE .50X.75X.015 .13FRHT

$2.99

$

In Stock, only 3 left!

0

15

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

16

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 03732900

BUSHING, FLANGED

$25.99

$

Usually ships in 4-12 days

0

18

Ariens 05901328

BLT-HEX .31-18X1.75 GR5 PDB

$

$

Not available

19

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06500634

NUT, .31-18 NYLOC FLANGE PDB

$

$

Not available

23

Ariens 03735151

HANDLE, STEERING

$

$

Not available

24

Ariens 03778151

BRKT, SPEED ADJ/SEAT PIVOT

$

$

Not available

25

Ariens 05974000

BLT-HEX .375-16X1.750 FTD YWZC
(Superseded to 05901612)

$2.99

$

In Stock, only 1 left!

0

26

Ariens 03652200

STUD- BALL

$3.49

$

In Stock, only 3 left!

0

27

Ariens 03769800

DAMPER
(Superseded to 09689700)

$39.99

$

In Stock, Qty 20+

0

28

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 01596400

TRUNNION, BRAKE .31-18 UNC

$51.99

$

Usually ships in 4-12 days

0

33

Ariens 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0
