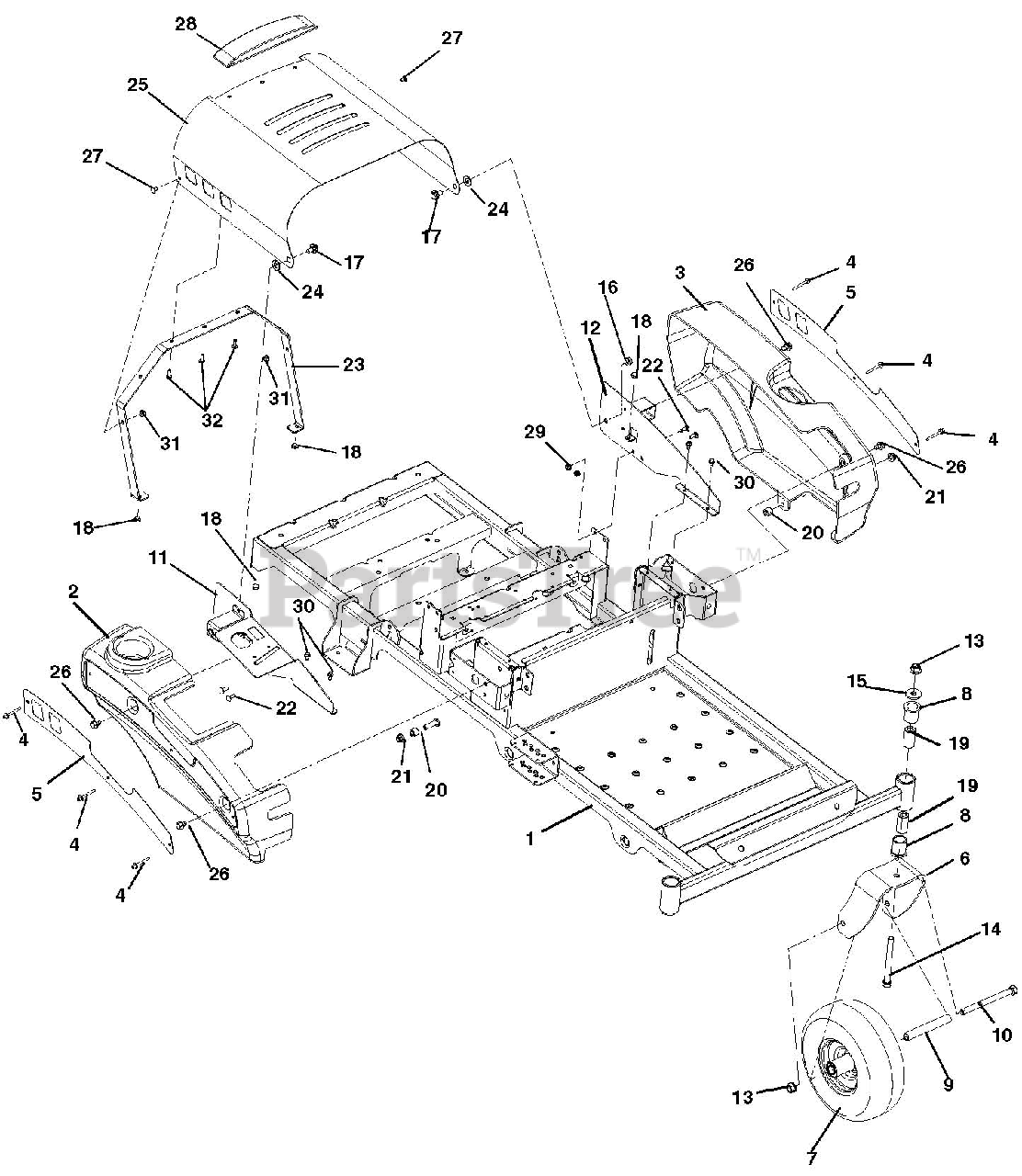

915131 - Ariens Zoom 34" Zero-Turn Mower, 13hp Briggs & Stratton (SN: 000101 - 009999) Frame, Hood, Fenders, Casters And Tires Parts Diagram

Zoom 34" Zero-Turn Mower, 13hp Briggs & Stratton

Frame, Hood, Fenders, Casters And Tires Parts Diagram

  • Title

1

Ariens 03752551

WMT, FRAME BBZ
(Superseded to 51525800)

$

$

Not available

2

Ariens 03768600

FENDER, RH

$79.99

$

In Stock, only 1 left!

0

3

Ariens 03768700

FENDER, LH
(Superseded to 51534400)

$96.99

$

Usually ships in 4-12 days

0

4

Ariens 06800106

RIVET, NYLON (.219 HOLE .25TH)
(Superseded to 07500125)

$1.49

$

In Stock, Qty 16

0

5

Ariens 03769000

PLATE, FENDER RH

$

$

Not available

6

Ariens 03368551

CASTER FORK WELDMENT

$72.99

$

In Stock, Qty 11

0

7

Ariens 07100801

TIRE/WHL ASM, FRONT

$68.99

$

In Stock, Qty 5

0

8

Ariens 05533600

BSHG-FLG 1.00X1.25X1.50X1.50EP
(Superseded to 05500934)

$6.99

$

In Stock, Qty 20+

0

9

Ariens 00278500

SPACER, ROLLED WHEEL

$13.99

$

In Stock, Qty 20+

0

10

Ariens 05964400

@BLT-HEX .50-13X6.50 GR5 YWZC
(Superseded to 05901907)

$7.99

$

In Stock, only 3 left!

0

11

Ariens 03768851

WMT, FENDER MOUNT RH

$

$

Not available

12

Ariens 03768951

WMT, FENDER MOUNT LH

$

$

Not available

13

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 05962200

@BLT-HEX .50-13X5.00 GR5 YWZC
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

15

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

16

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 07056700

BOLT-SHLDR .375-16X.150

$3.99

$

In Stock, only 2 left!

0

18

Ariens 07503100

BUMPER GROMMET

$3.49

$

In Stock, only 3 left!

0

19

Ariens 00363100

SPACER, CASTER .50X1.00X1.84

$6.99

$

In Stock, Qty 11

0

20

Ariens 08553700

BSHG-SLV .391X.688X.52 PM

$5.99

$

In Stock, only 1 left!

0

21

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 13

0

23

Ariens 03766559

BRACE, BBZ HOOD
(Superseded to 51520300)

$

$

Not available

24

Ariens 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 20+

0

25

Ariens 03766459

HOOD, BBZ
(Superseded to 51520300)

$

$

Not available

26

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 03755000

TRIM-HOOD, ARIENS SMALL

$

$

Not available

29

Ariens 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

30

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 07400035

SCREW,PHLPS PAN HEAD 12-11X5/8

$

$

Not available
