915131 - Ariens Zoom 34" Zero-Turn Mower, 13hp Briggs & Stratton (SN: 000101 - 009999) Belt Covers And Blades Parts Diagram

Zoom 34" Zero-Turn Mower, 13hp Briggs & Stratton

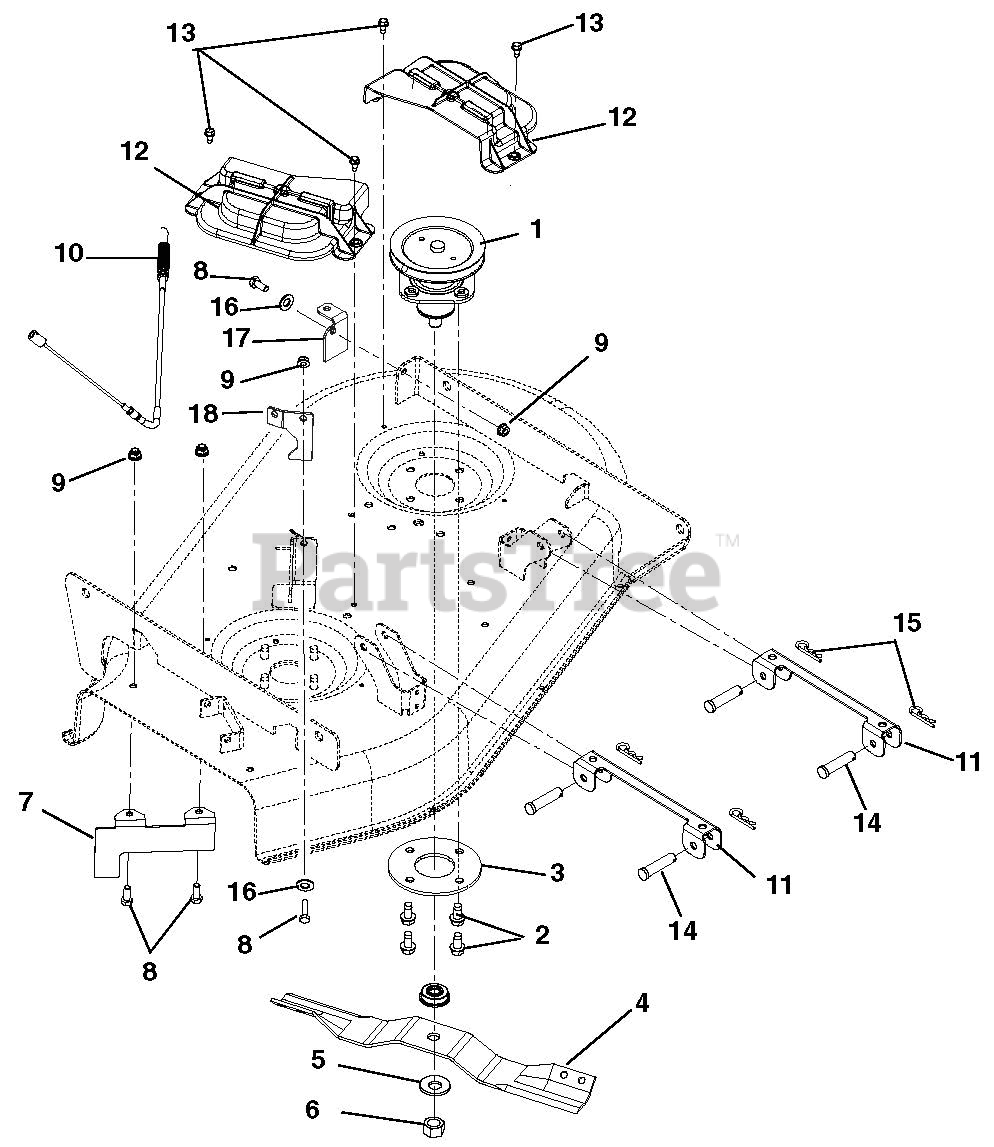

Belt Covers And Blades Parts Diagram

  • Title

1

Ariens 61559900

ASSY-SPINDLE
(Superseded to 51519500)

$156.99

$

In Stock, Qty 7

0

2

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 03839051

PLATE-REINF, SPINDLE

$27.99

$

Usually ships in 4-12 days

0

4

Ariens 03746500

BLADE-17.2" X .156
(Superseded to 03971900)

$23.99

$

In Stock, Qty 20+

0

5

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, only 3 left!

0

6

Ariens 06500630

NUT-HEX .62-18 YWZC
(Superseded to 06500920)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 03779251

BRKT-BAFFLE, DISCHARGE 34"

$17.99

$

Usually ships in 4-12 days

0

8

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06900338

CABLE-PTO

$62.99

$

In Stock, only 1 left!

0

11

Ariens 03764059

BRKT-STABILIZER LINK

$51.99

$

Usually ships in 4-12 days

0

12

Ariens 03796000

COVER-BELT, MOLDED

$62.99

$

In Stock, only 1 left!

0

13

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06800102

PIN-CLEV .375 X 2.00 YWZC

$3.99

$

In Stock, Qty 13

0

15

Ariens 06700201

PIN,BOW TIE LOCKING .091X1.875
(Superseded to 06700220)

$1.99

$

In Stock, Qty 20+

0

16

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 03878800

BRKT-SPRING ANCHOR

$

$

Not available

18

Ariens 03876900

BRKT-CABLE MOUNT ADAPTER

$

$

Not available
