915130 (ZT 1334) - Gravely 34" Zero-Turn Mower, 13hp Briggs & Stratton (SN: 000101 & Above) Mower Deck, Belt, And Idlers Parts Diagram

34" Zero-Turn Mower, 13hp Briggs & Stratton

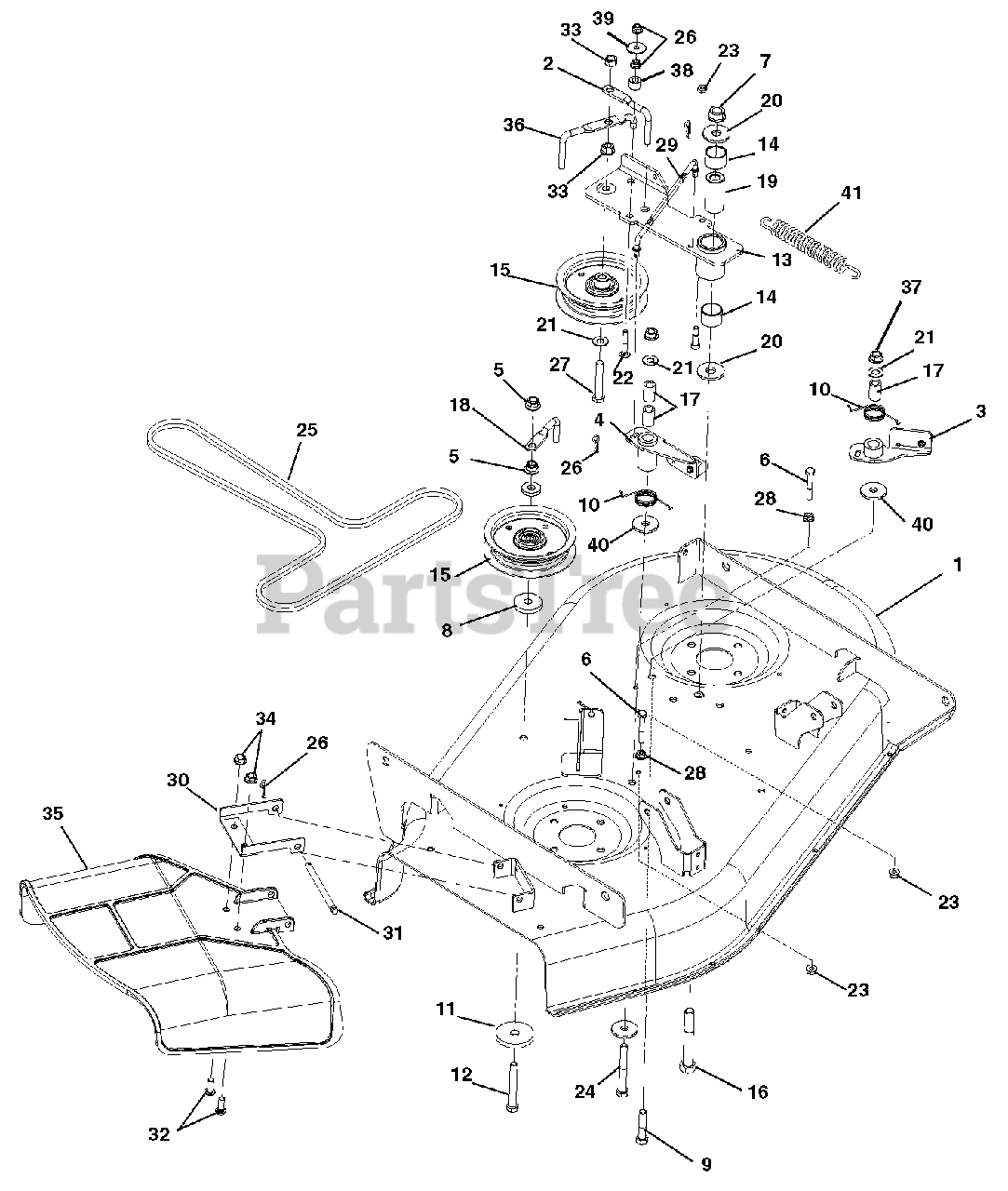

Mower Deck, Belt, And Idlers Parts Diagram

  • Title

1

Gravely 03734453

Weldment, 34in Deck

$

$

Not available

2

Gravely 03828800

Belt Finger

$9.49

$

In Stock, only 1 left!

0

3

Gravely 51519900

Assembly, Brake Arm LH

$59.99

$

In Stock, only 1 left!

0

4

Gravely 51519800

Assembly, Brake Arm RH

$68.99

$

In Stock, only 1 left!

0

5

Gravely 06545500

Nut .38-16 Flange Nyloc
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 05964700

Bolt, Hex .25-20 x 1.75 Grade 5
(Superseded to 05901935)

$2.49

$

In Stock, only 1 left!

0

7

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

9

Gravely 05958500

Bolt, Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 08300502

Spring, Torsion

$9.49

$

In Stock, only 2 left!

0

11

Gravely 06443600

Washer, Flat Steel .469 x 2.00 x .25
(Superseded to 06401111)

$6.99

$

In Stock, only 2 left!

0

12

Gravely 05961400

Bolt, Hex .38-16 x 2.75 Grade 5
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

13

Gravely 03875600

Idler Arm

$66.99

$

Usually ships in 4-12 days

0

14

Gravely 05435800

Bearing, 1.00 x 1.12 x .75

$9.49

$

In Stock, Qty 6

0

15

Gravely 07300039

Assembly, Idler 4"
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

16

Gravely 05965800

Bolt, Hex Head .50-13 x 3.50 Grade 5
(Superseded to 05901937)

$4.99

$

In Stock, only 2 left!

0

17

Gravely 08833400

Bushing, Sleeve .391 x .622 x .950

$5.99

$

In Stock, only 1 left!

0

18

Gravely 03828900

Finger, Belt

$

$

Not available

19

Gravely 01581700

Spacer, Powdered Metal

$5.99

$

In Stock, Qty 20+

0

20

Gravely 06436400

Washer, Flat Steel .511 x 1.44 x 125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

21

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 05947700

Bolt, Hex Head .25-20 x 1.00 Grade 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

23

Gravely 06500012

Nut, .25-20 Nyloc Flange
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

24

Gravely 05957800

Bolt, Hex .38-16 x 3.00 Grade 5
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

25

Gravely 07200116

Belt, HA 98.75 Wrapped

$63.99

$

In Stock, only 3 left!

0

26

Gravely 06713500

Pin, Hair .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 05962900

Bolt, Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

28

Gravely 06530100

Nut, Locking Flange .250-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 03771700

Link, Brake

$

$

Not available

30

Gravely 00662653

Chute Reinforcement

$

$

Not available

31

Gravely 06800002

Pin, 5/16 x 3.88"

$9.49

$

Usually ships in 4-12 days

0

32

Gravely 05920900

Screw, .31-18 x .75

$3.99

$

In Stock, only 2 left!

0

33

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 00499900

Molded Chute
(Superseded to 03994300)

$54.99

$

In Stock, only 1 left!

0

36

Gravely 03856800

Wireform, Belt Finger

$6.99

$

In Stock, only 1 left!

0

37

Gravely 06537200

Nut, Locking Jam .375-16
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 03242100

Spacer, .325 x .625 x .455

$3.99

$

Usually ships in 4-12 days

0

39

Gravely 06426600

Washer, Flat-Steel .281 x 1.000 x .063
(Superseded to 06401020)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 06442400

Washer, Flat-Steel .406 x 1.375 x .135
(Superseded to 06401121)

$5.99

$

In Stock, only 1 left!

0

41

Gravely 08311000

Spring, Tension .080 x .687 x 5.16

$14.99

$

In Stock, only 1 left!
