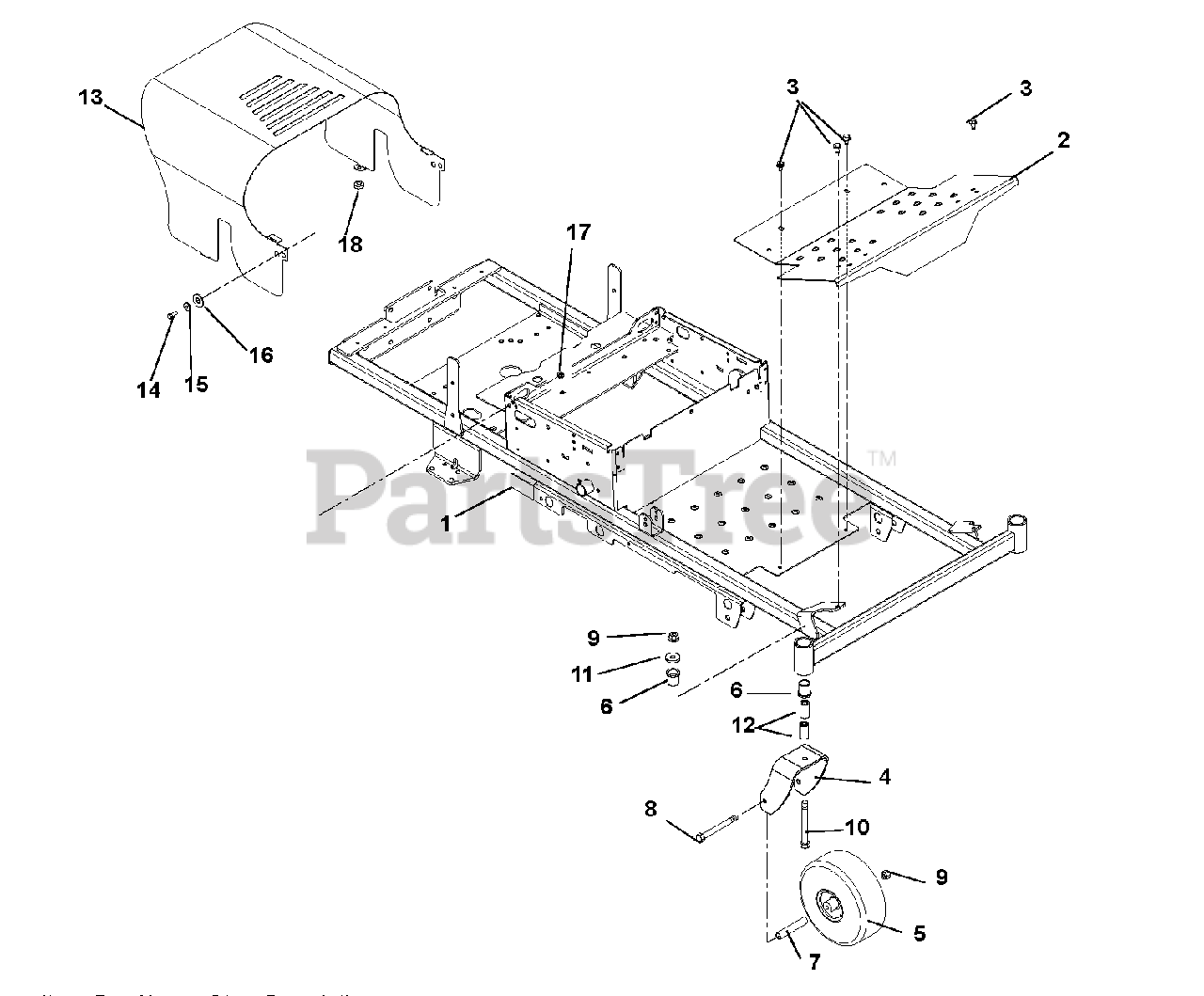

915122 (ZT XL 1734) - Gravely 34" Zero-Turn Mower, 17hp Kohler, CARB (SN: 000101 & Above) Frame, Footrest, Casters and Tires Parts Diagram

34" Zero-Turn Mower, 17hp Kohler, CARB

Frame, Footrest, Casters and Tires Parts Diagram

  • Title

1

Gravely 02987951

Weldment, Frame

$

$

Not available

2

Gravely 00460553

Footrest, MZ

$

$

Not available

3

Gravely 07411500

Screw, Tapping .31-18 x .50
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 03368551

Fork, Caster

$72.99

$

In Stock, Qty 11

0

5

Gravely 07100124

Wheel/Tire Assembly, 11.0 x 4.0 x 5.0, Monitor

$74.99

$

In Stock, Qty 20+

0

6

Gravely 05500119

Bushing, Flange 1.00 x 1.25 x 1.50 x 1.50

$9.99

$

Usually ships in 4-12 days

0

7

Gravely 00278500

Spacer, Wheel

$13.99

$

In Stock, Qty 20+

0

8

Gravely 05964400

Bolt, Hex .50-13 x 6.50 Grade 5
(Superseded to 05901907)

$7.99

$

In Stock, Qty 5

0

9

Gravely 06500010

Nut, .50-13 Nyloc Flange
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05962200

Bolt, Hex .50-13 x 5.00 Grade 5
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

11

Gravely 06436400

Washer, Flat Steel .511 x 1.441 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 00363100

Spacer, Caster

$6.99

$

Usually ships in 4-12 days

0

13

Gravely 01972953

Hood, 1734 ZTXL

$

$

Not available

14

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 05513400

Bushing, Flange .265 x .437 x .250 x .750

$2.49

$

In Stock, only 3 left!

0

16

Gravely 06441000

Washer, Flat Steel .50 x 1.25 x .083
(Superseded to 06401202)

$2.99

$

In Stock, Qty 6

0

17

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 07516000

Button Bumper

$0.99

$

In Stock, Qty 14

0
