915113 (2448) - Ariens Zoom 48" Zero-Turn Mower, 24hp Briggs & Stratton (SN: 000101 & Above) Electrical System Parts Diagram

Zoom 48" Zero-Turn Mower, 24hp Briggs & Stratton

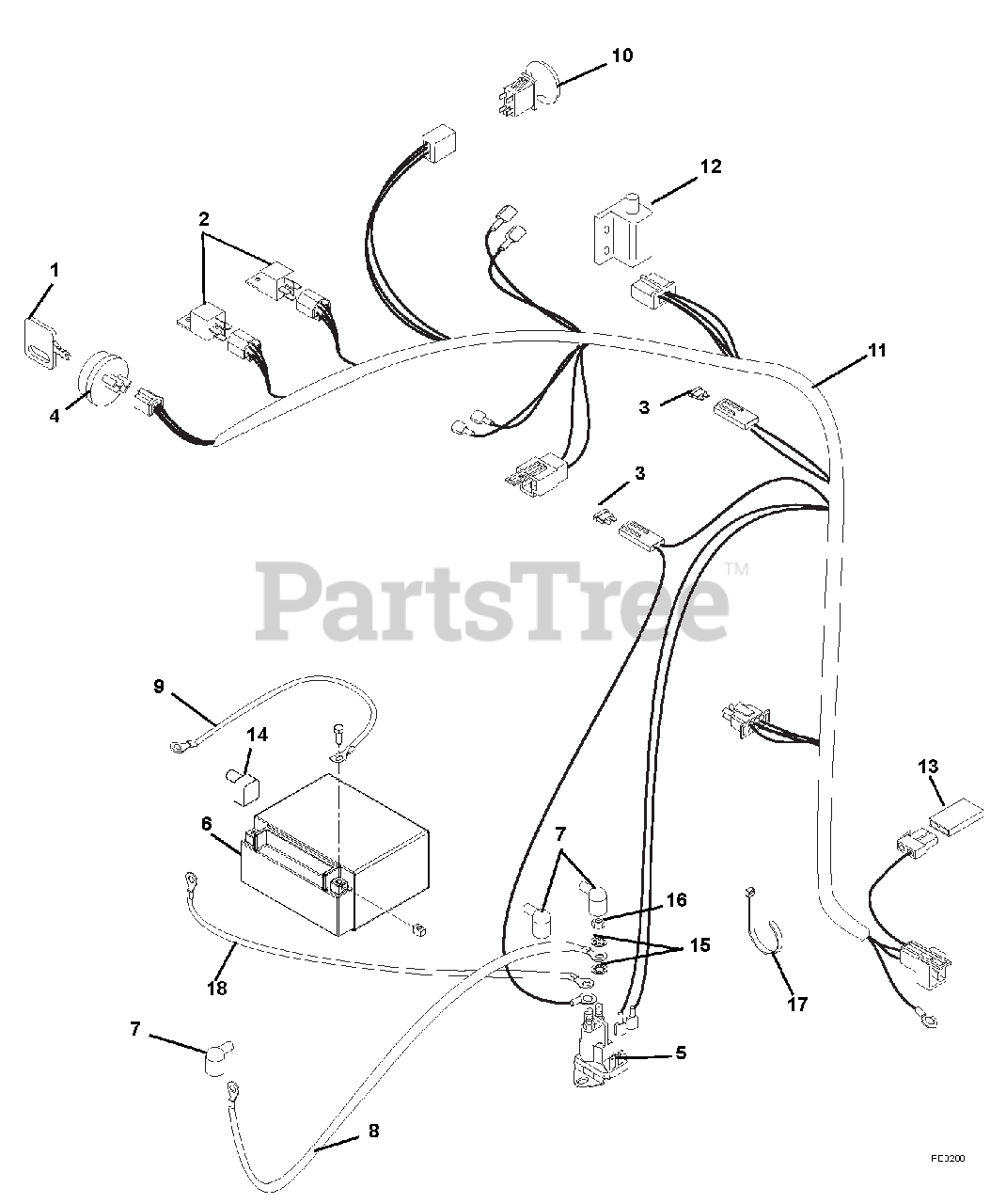

Electrical System Parts Diagram

  • Title

1

Ariens 02460700

KEY -W/CAP

$7.99

$

In Stock, Qty 20+

0

2

Ariens 03042800

RELAY
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

3

Ariens 09351100

FUSE-25 AMP ATC TYPE
(Superseded to 08961800)

$3.99

$

In Stock, only 4 left!

0

4

Ariens 01588300

KEY SWITCH

$30.99

$

In Stock, only 1 left!

0

5

Ariens 00696900

SOLENOID, HP RTV
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

6

Ariens 02970100

BATTERY, 12 VOLT SEALED AGM

Note: (includes mounting hardware)

$

$

Not available

Ariens 05975900

@BLT-HEX M6-1X16 YWZC
(Superseded to 05902026)

$0.99

$

In Stock, only 2 left!

0

7

Ariens 07533200

BOOT, EYELET TERMINAL

$3.49

$

In Stock, only 3 left!

0

8

Ariens 02974700

STARTER CABLE

$21.99

$

Usually ships in 4-12 days

0

9

Ariens 02974600

GROUND CABLE

$21.99

$

Usually ships in 4-12 days

0

10

Ariens 01545600

SWITCH, CLUTCH

$25.99

$

In Stock, Qty 20+

0

11

Ariens 02974500

HARNESS, ZTXL/ZOOMXL

$214.99

$

Usually ships in 4-12 days

0

12

Ariens 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

13

Ariens 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$11.99

$

In Stock, only 3 left!

0

14

Ariens 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

15

Ariens 06310500

WSHR-LOCK INT .31 YWZC

$0.99

$

In Stock, only 3 left!

0

16

Ariens 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

17

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

18

Ariens 02974800

POSITIVE CABLE

$17.99

$

In Stock, only 2 left!

0

19

Ariens 00379201

HARNESS,MINI-Z HEADLIGHT

Note: (915321)

$39.99

$

In Stock, only 1 left!

0
