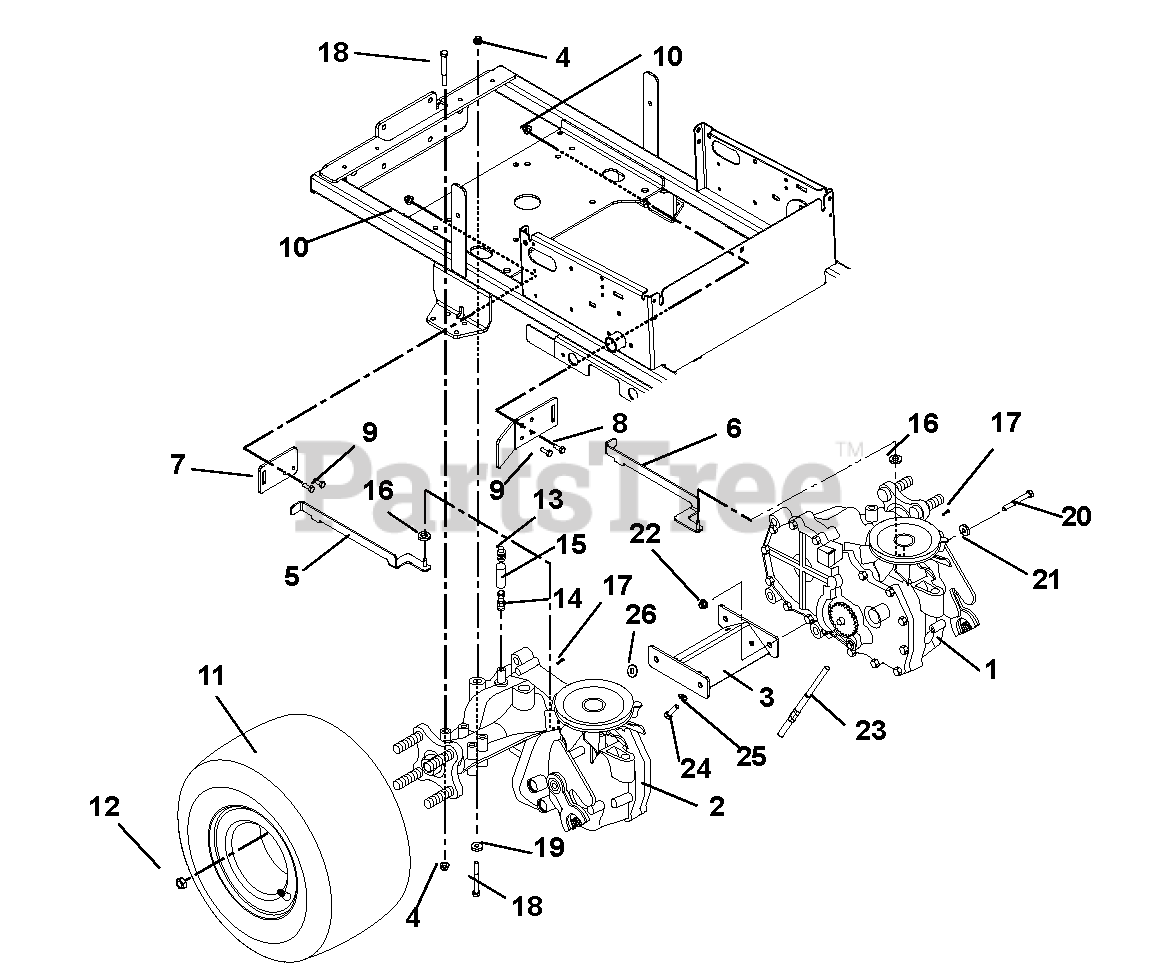

915108 (ZT XL 1734) - Gravely 34" Zero-Turn Mower, 17hp Kohler (SN: 000101 & Above) Transaxle, Dumb Valves and Rear Wheels Parts Diagram

34" Zero-Turn Mower, 17hp Kohler

Transaxle, Dumb Valves and Rear Wheels Parts Diagram

  • Title

1

Gravely 00689100

EZT, Left Hand Transaxle-Hydrogear (For service please contact Hydro-Gear)

Note: (For service please contact Hydro-Gear)

$1002.99

$

Usually ships in 4-12 days

0

2

Gravely 00689200

EZT, Right Hand Transaxle-Hydrogear (For service please contact Hydro-Gear)

Note: (For service please contact Hydro-Gear)

$1246.99

$

Usually ships in 4-12 days

0

3

Gravely 00604151

Weldment, Transaxle Support

$90.99

$

Usually ships in 4-12 days

0

4

Gravely 06545400

Nut 5/16-18 Flange Nyloc
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 00580700

Weldment, Dump Valve (Right Hand)

Note: (Right Hand)

$

$

Not available

6

Gravely 00580800

Weldment, Dump Valve (Left Hand)

Note: (Left Hand)

$

$

Not available

7

Gravely 00582051

Bracket, Dump Valve

$

$

Not available

8

Gravely 00617651

Clutch Stop

$

$

Not available

9

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06535000

Nut, Locking Nylon .250-20
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07100204

Assembly, Tire/Wheel 18 x 6.5-8 CTR
(Superseded to 07100310)

$113.99

$

Usually ships in 4-12 days

0

12

Gravely 06535000

Nut, Lug .50-20
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 07026400

Cap, Vent .50

$14.99

$

In Stock, only 2 left!

0

14

Gravely 07026300

Fitting, Straight .50

$23.99

$

In Stock, only 2 left!

0

15

Gravely 01543100

Hose, Vent

$9.49

$

In Stock, only 2 left!

0

16

Gravely 06439500

Washer, Flat Steel .265 x .50 x .087
(Superseded to 06401120)

$1.49

$

Usually ships in 4-12 days

0

17

Gravely 06701900

Pin, Hair, Internal .06 x .18 x .77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 13

0

18

Gravely 05960600

Bolt, Hex .31-18 x 2.75
(Superseded to 05901807)

$2.49

$

In Stock, only 2 left!

0

19

Gravely 06439100

Washer, Flat Steel .328 x .87 x .179
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

20

Gravely 05958400

Bolt, Hex .38-16 x 2.50 Grade 5
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

21

Gravely 06444000

Washer, Flat Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

22

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 00617900

Rear Belt Finger

$

$

Not available

24

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0
