915108 (ZT XL 1734) - Gravely 34" Zero-Turn Mower, 17hp Kohler (SN: 000101 & Above) Mower Deck, Belt, Idlers and Blades Parts Diagram

34" Zero-Turn Mower, 17hp Kohler

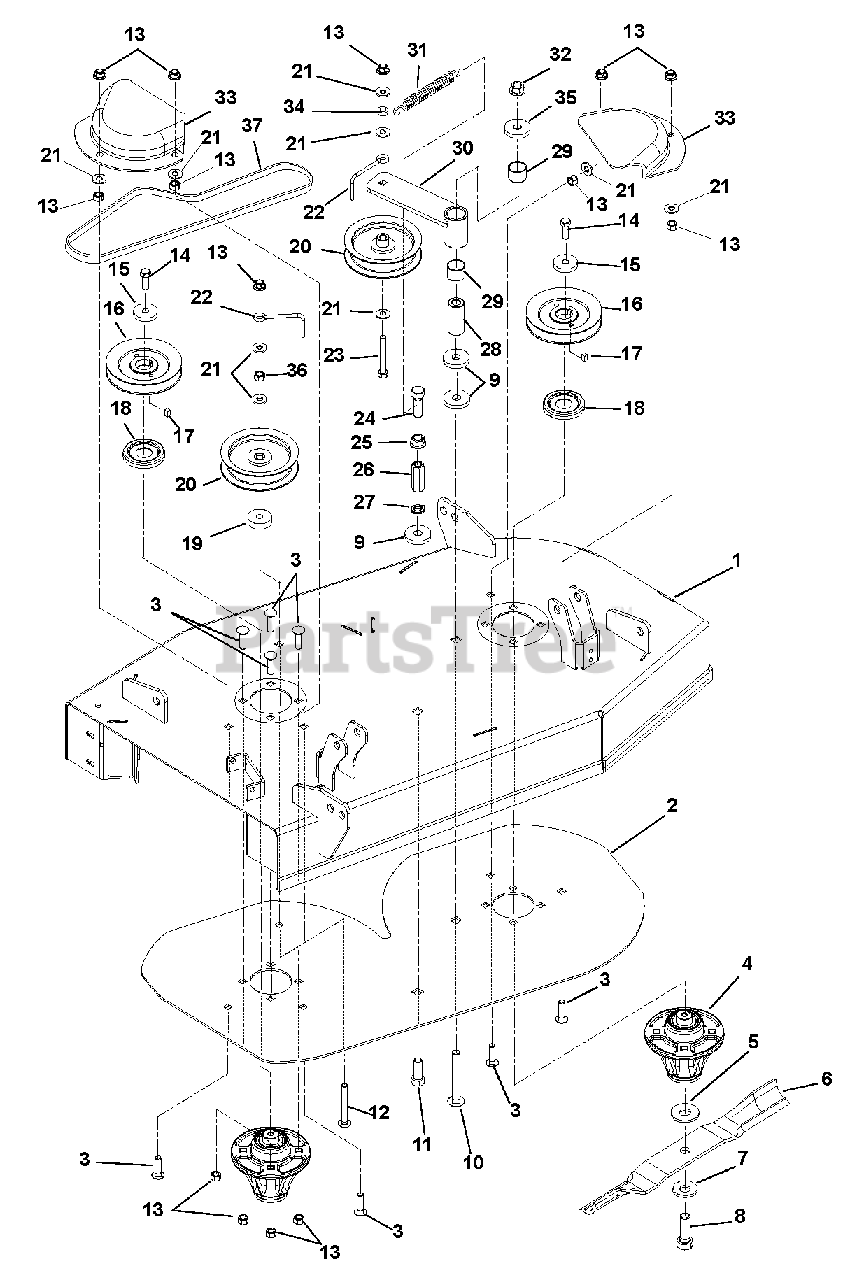

Mower Deck, Belt, Idlers and Blades Parts Diagram

  • Title

1

Gravely 00827653

Weldment 34" Fabricated Deck
(Superseded to 51529900)

$774.99

$

Usually ships in 4-12 days

0

2

Gravely 00865553

Plate, 34" Doubler

$

$

Not available

3

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25
(Superseded to 06200415)

$2.49

$

In Stock, only 4 left!

0

4

Gravely 61543800

Spindle Assembly
(Superseded to 51510000)

$216.99

$

In Stock, Qty 14

0

5

Gravely 06442900

Washer, Flat Steel .688 x 1.75 x .134
(Superseded to 06401032)

$1.49

$

In Stock, Qty 5

0

6

Gravely 08861600

Blade, Mower

$23.99

$

In Stock, Qty 20+

0

7

Gravely 06445700

Washer, Beveled .63 x 1.625 x .140

$4.99

$

In Stock, Qty 18

0

8

Gravely 05978900

Bolt, Hex .62-18 x 1.75 Grade 8
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

9

Gravely 06445000

Washer, Flat Steel .515 x 1.625 x .25

$5.99

$

In Stock, only 4 left!

0

10

Gravely 06225000

Bolt, Round Head Square Neck .50-13 x 3.50 Grade 5
(Superseded to 06200317)

$5.99

$

In Stock, Qty 20+

0

11

Gravely 06224700

Bolt, Round Head Square Neck .50-13 x 1.25 Grade 5
(Superseded to 06200325)

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 06225400

Bolt, Round Head Square Neck .38-16 x 2.75 Grade 5 Full-Length Thread
(Superseded to 06200316)

$3.99

$

In Stock, only 1 left!

0

13

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05900013

Bolt, Hex .38-16 x 1.00 EP30 Grade 8
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

16

Gravely 01610300

Sheave, Spindle 4.75 Dia.
(Superseded to 07330267)

$52.99

$

In Stock, only 1 left!

0

17

Gravely 06611100

Key, Square .25 x .38

$1.49

$

In Stock, Qty 20+

0

18

Gravely 00587400

Dust Cap

$7.99

$

In Stock, only 3 left!

0

19

Gravely 01594000

Spacer, .39 x 1.50 x .380

$3.99

$

In Stock, only 1 left!

0

20

Gravely 07300039

Assembly, Idler 4"
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

21

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 00391900

Belt Finger

$20.99

$

In Stock, only 2 left!

0

23

Gravely 05962900

Bolt, Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

24

Gravely 05962000

Bolt, Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

25

Gravely 06543300

Nut, Spin Lock Flange .50-13
(Superseded to 06500928)

$3.99

$

Usually ships in 4-12 days

0

26

Gravely 06500013

Nut, Coupling .50-13 x 1.75

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 06307300

Washer, Lock 1/2
(Superseded to 06300115)

$1.49

$

In Stock, Qty 17

0

28

Gravely 01581700

Bushing, Spacer .505/.500 x .999/.996 x 2.05/2.03

$5.99

$

In Stock, Qty 20+

0

29

Gravely 05435800

Bearing, 1.00 x 1.12 x .75

$9.49

$

In Stock, only 4 left!

0

30

Gravely 00652600

Idler, Arm

$46.99

$

In Stock, only 1 left!

0

31

Gravely 08300020

Spring

$26.99

$

In Stock, only 2 left!

0

32

Gravely 06543600

Nut, Locking Top Flange .50 - 13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 00387800

Belt Cover

$43.99

$

Usually ships in 4-12 days

0

34

Gravely 05508900

Bushing, Sleeve .377 x .624 x .235

$9.49

$

In Stock, only 1 left!

0

35

Gravely 06442000

Washer, Flat Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 2 left!

0

36

Gravely 06529600

Nut, Locking Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 07200015

Belt, HA 97.00 Wrapped

$71.99

$

In Stock, only 1 left!

0
