915106 (ZT 2350) - Gravely 50" Zero-Turn Mower, 23hp Kohler (SN: 000101 & Above) Mower Deck, Belt, Idlers And Blades Parts Diagram

50" Zero-Turn Mower, 23hp Kohler

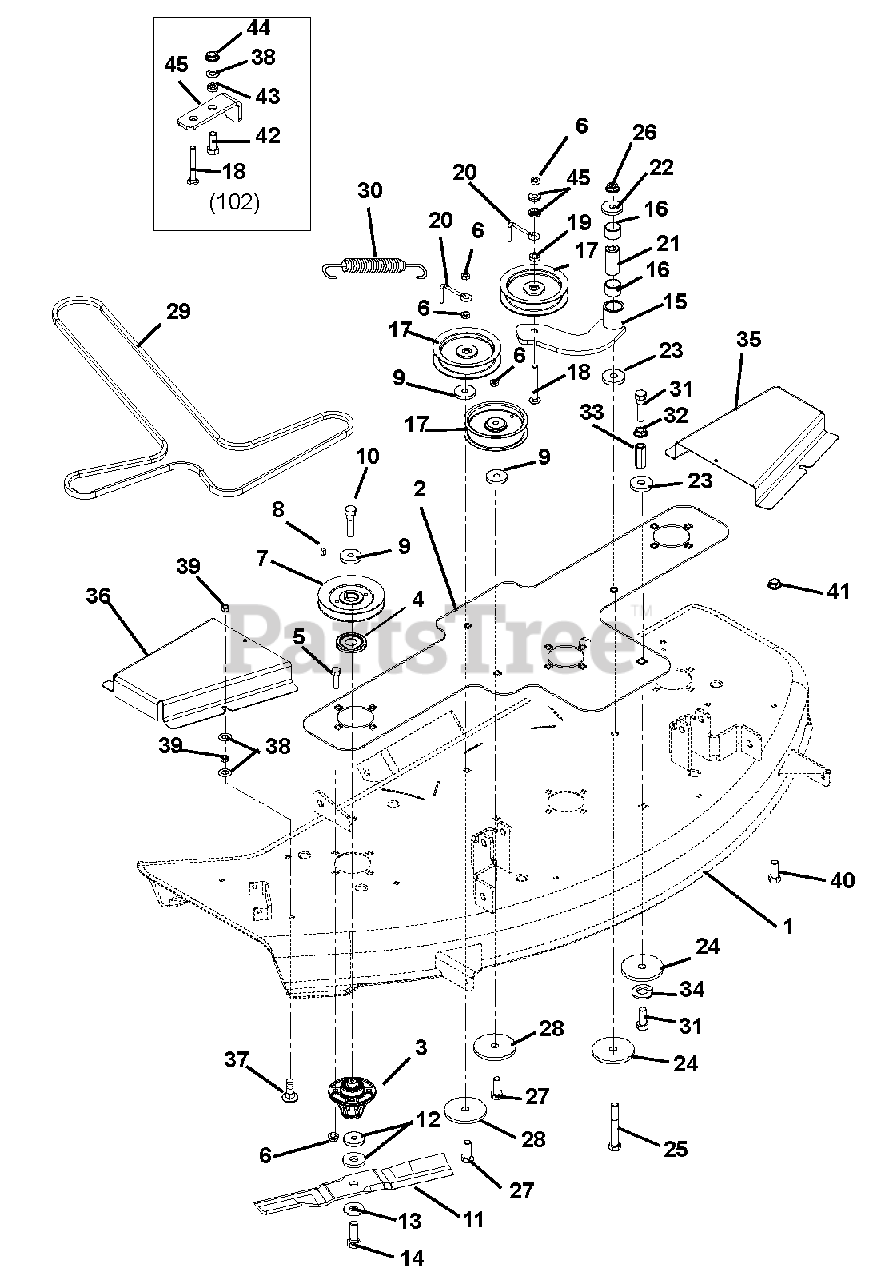

Mower Deck, Belt, Idlers And Blades Parts Diagram

  • Title

1

Gravely 00476853

Weldment 50" Deck (104, 106, 116)
(Superseded to 51529200)

Note: (104, 106, 116)

$805.99

$

Usually ships in 4-12 days

0

Gravely 00585353

Weldment, 40" Stamped Deck (102)

Note: (102)

$

$

Not available

2

Gravely 00616053

Deck Doubler, (104, 106, 116)

Note: (104, 106, 116)

$184.99

$

Usually ships in 4-12 days

0

Gravely 00616553

Doubler Plate, 40-Inch Deck (102)

Note: (102)

$

$

Not available

3

Gravely 61543800

Spindle Assembly
(Superseded to 51510000)

$216.99

$

In Stock, Qty 12

0

4

Gravely 00587400

Dust Cap

$7.99

$

In Stock, only 3 left!

0

5

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

6

Gravely 06545500

Nut .38-16 Flange Nyloc (104, 106, 116)
(Superseded to 06500726)

Note: (104, 106, 116)

$1.49

$

In Stock, Qty 20+

0

Gravely 06545500

Nut .38-16 Flange Nyloc (102)
(Superseded to 06500726)

Note: (102)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 01610300

Sheave, Spindle 4.75 Dia. (104, 106, 116)
(Superseded to 07330267)

Note: (104, 106, 116)

$52.99

$

In Stock, only 1 left!

0

Gravely 01610400

Sheave, 4.25 Diameter A-Section (102)

Note: (102)

$45.99

$

In Stock, only 1 left!

0

8

Gravely 06611100

Key, Square .25 x .38 x .25

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

10

Gravely 05900013

Bolt, Hex .38-16 x 1.00 EP30 Grade 8
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 08861600

Blade, Mower (104, 106, 116)

Note: (104, 106, 116)

$23.99

$

In Stock, Qty 20+

0

Gravely 03498400

Blade, Mower (102)

Note: (102)

$19.99

$

In Stock, Qty 20+

0

12

Gravely 06435200

Washer, Flat .640 x 1.81 x .250
(Superseded to 06400829)

$3.99

$

In Stock, only 2 left!

0

13

Gravely 06445700

Washer, Beveled .63 x 1.625 x .140

$4.99

$

In Stock, only 3 left!

0

14

Gravely 05978900

Bolt, Hex .62-18 x 1.75 Grade 8
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

15

Gravely 00429900

Weldment, Idler Arm

$82.99

$

Usually ships in 4-12 days

0

16

Gravely 05435800

Bearing, 1.00 x 1.12 x .75

$9.49

$

In Stock, Qty 6

0

17

Gravely 07300006

Idler, Flat .38 x 4.00 x 1.06
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

18

Gravely 06222400

Bolt, Round Head Square Neck .38-16 x 3.50 Grade 5 (104, 106, 116)
(Superseded to 06200302)

Note: (104, 106, 116)

$9.49

$

In Stock, only 1 left!

0

Gravely 06224400

Bolt, Round Head Square Neck .38-16 x 2.50 Grade 5 (102)
(Superseded to 06200234)

Note: (102)

$3.99

$

In Stock, Qty 18

0

19

Gravely 08553700

Bushing

$5.99

$

In Stock, only 1 left!

0

20

Gravely 00391900

Finger, Belt (104, 106, 116)

Note: (104, 106, 116)

$20.99

$

In Stock, only 2 left!

0

Gravely 00391900

Finger, Belt (102)

Note: (102)

$20.99

$

In Stock, only 2 left!

0

21

Gravely 01581700

Spacer, Powdered Metal

$5.99

$

In Stock, Qty 20+

0

22

Gravely 06436400

Washer, Flat Steel .511 x 1.44 x 125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

23

Gravely 06445000

Washer, Flat Steel .515 x 1.625 x .25

$5.99

$

In Stock, only 3 left!

0

24

Gravely 06400011

Washer, Flat Steel .531 x 3.00 x .25

$17.99

$

Usually ships in 4-12 days

0

25

Gravely 05965800

Bolt, Hex .50-13 x 3.50 Grade 5
(Superseded to 05901937)

$4.99

$

In Stock, only 2 left!

0

26

Gravely 06543600

Nut, Locking-Top-Flange .50 - 13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 05961400

Bolt, Hex .38-16 x 2.75 Grade 5
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

28

Gravely 06443600

Washer, Flat Steel .469 x 2.00 x .25
(Superseded to 06401111)

$6.99

$

In Stock, only 2 left!

0

29

Gravely 07200107

V-Belt, HA x 140.2 EFF. (104, 106, 116)

Note: (104, 106, 116)

$94.99

$

In Stock, Qty 15

0

Gravely 07241800

V-Belt, 40" Zoom (102)

Note: (102)

$87.99

$

In Stock, only 1 left!

0

30

Gravely 08300020

Spring

$26.99

$

In Stock, only 2 left!

0

31

Gravely 05958900

Bolt, Hex .50-13 x 1.25 Grade 5
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

32

Gravely 06543300

Nut, Spin Lock Flange .50-13
(Superseded to 06500928)

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 06500013

Nut, Coupling .50-13 x 1.75

$3.99

$

Usually ships in 4-12 days

0

34

Gravely 06307300

Washer, Lock 1/2
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

35

Gravely 00486853

Belt Cover, Left (104, 106, 116)

Note: (104, 106, 116)

$38.99

$

Usually ships in 4-12 days

0

Gravely 00607553

Belt Cover, Left 40 (102)

Note: (102)

$40.99

$

Usually ships in 4-12 days

0

36

Gravely 00486953

Belt Cover, Right (104, 106, 116)

Note: (104, 106, 116)

$58.99

$

Usually ships in 4-12 days

0

Gravely 00607653

Belt Cover, Right 40 (102)

Note: (102)

$

$

Not available

37

Gravely 06200008

Bolt, Round Head Square Neck .31-18 x 1.25 Grade 5
(Superseded to 06200310)

$1.49

$

In Stock, Qty 5

0

38

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083 (104, 106, 116)
(Superseded to 06401023)

Note: (104, 106, 116)

$1.49

$

In Stock, Qty 20+

0

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083 (102)
(Superseded to 06401023)

Note: (102)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5 (104, 106, 116)
(Superseded to 05901704)

Note: (104, 106, 116)

$1.49

$

In Stock, Qty 20+

0

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5 (102)
(Superseded to 05901704)

Note: (102)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 06530400

Nut, Spin Lock-Flange .312-18 (104, 106, 116)
(Superseded to 06500815)

Note: (104, 106, 116)

$1.49

$

In Stock, Qty 20+

0

Gravely 06530400

Nut, Spin Lock-Flange .312-18 (102)
(Superseded to 06500815)

Note: (102)

$1.49

$

In Stock, Qty 20+

0

42

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5 (102)
(Superseded to 05901711)

Note: (102)

$1.49

$

In Stock, Qty 20+

0

43

Gravely 05508900

Bushing-Sleeve .377 x .624 x .235 (102)

Note: (102)

$9.49

$

In Stock, only 1 left!

0

44

Gravely 06542000

Nut, Locking-Top-Flange .38-16 (102)
(Superseded to 06500822)

Note: (102)

$1.49

$

In Stock, Qty 20+

0

45

Gravely 00617851

Belt Finger (102)

Note: (102)

$58.99

$

Usually ships in 4-12 days

0

Gravely 05515800

Bushing, Flange .406 x .88 x .270 x .140 (104, 106, 116)

Note: (104, 106, 116)

$9.49

$

In Stock, only 4 left!
