915105 (2150) - Ariens Zoom 50" Zero-Turn Mower, 21hp Briggs & Stratton (SN: 000101 & Above) Anti-Scalp Wheels Parts Diagram

Zoom 50" Zero-Turn Mower, 21hp Briggs & Stratton

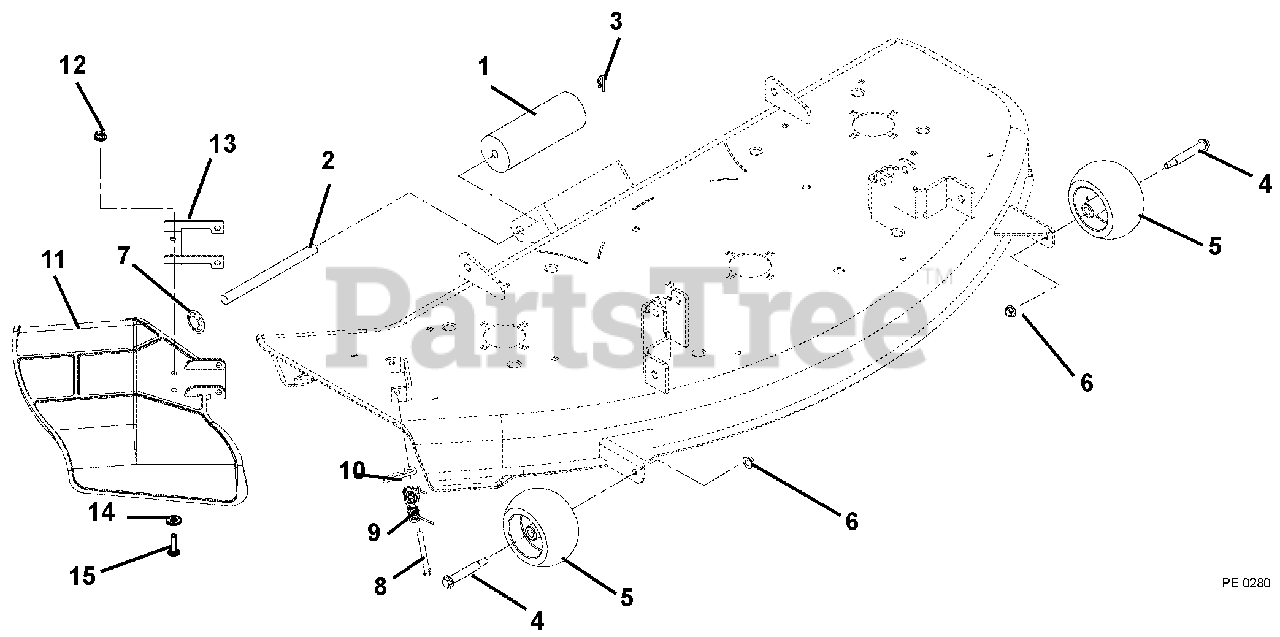

Anti-Scalp Wheels Parts Diagram

  • Title

1

Ariens 03114100

ROLLER

Note: (915105, 107)

$22.99

$

In Stock, Qty 20+

0

2

Ariens 00356500

PIN, ROLLER

Note: (915105, 107)

$34.99

$

In Stock, only 1 left!

0

3

Ariens 06714500

PIN, SPRING CLIP

Note: (915105, 107)

$2.49

$

In Stock, Qty 20+

0

4

Ariens 07056800

BLT-SHLDR .38-16X2.50 HWH G5

$6.99

$

In Stock, Qty 20+

0

5

Ariens 03471700

WHEEL 5 X 3
(Superseded to 03905600)

$15.99

$

In Stock, Qty 20+

0

6

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 07000035

PUSH NUT, .625 SHAFT

Note: (915105, 107)

$2.49

$

In Stock, only 3 left!

0

8

Ariens 06800002

PIN, 5/16 X 3.88"

$9.49

$

Usually ships in 4-12 days

0

9

Ariens 01258100

SPRING, TORSION

$9.49

$

In Stock, Qty 8

0

10

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 00499900

MOLDED CHUTE, ZOOM
(Superseded to 03994300)

$54.99

$

In Stock, only 1 left!

0

12

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 00662659

CHUTE REINFORCEMENT

$24.99

$

In Stock, only 2 left!

0

14

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 05920900

SCR-SKH .31-18X.75 BTNHD YWZC

$3.99

$

In Stock, only 2 left!

0
