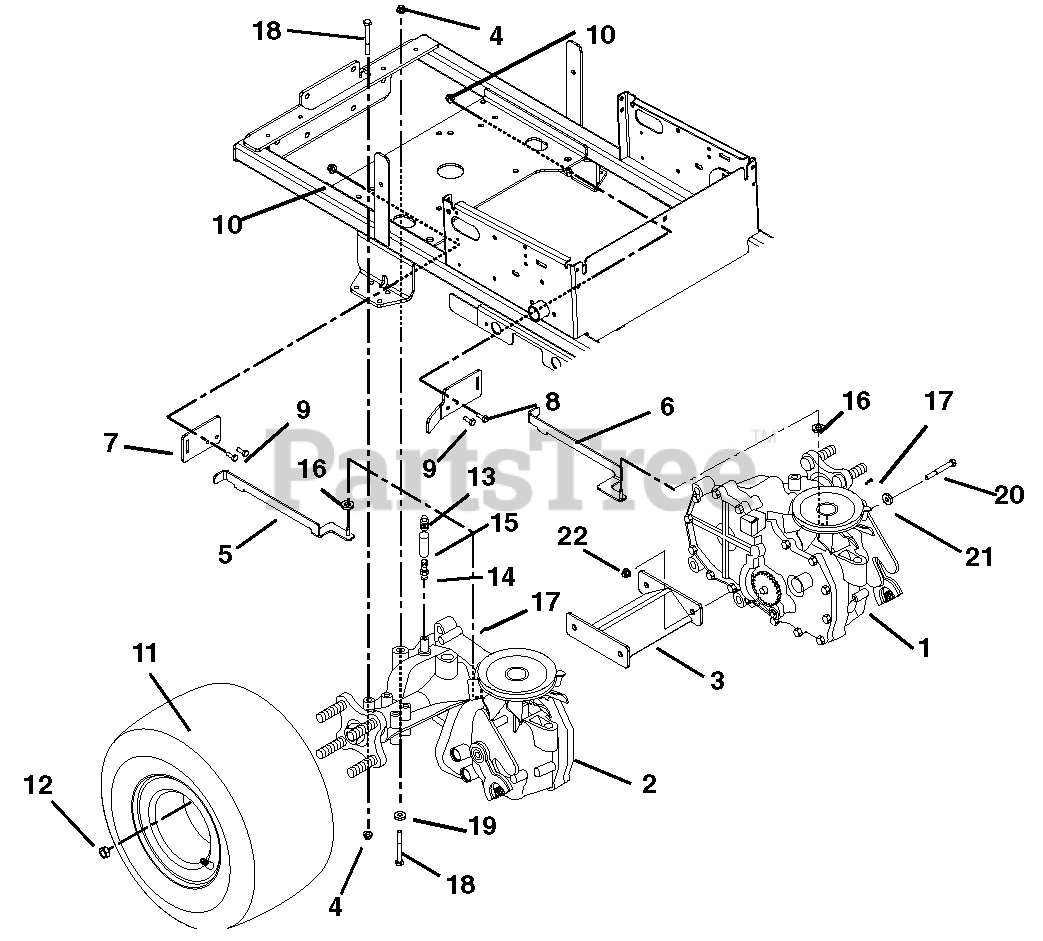

915102 (ZT 2040) - Gravely 40" Zero-Turn Mower, 20hp Kohler (SN: 000102 & Above) Transaxle, Dump Valves And Rear Wheels Parts Diagram

40" Zero-Turn Mower, 20hp Kohler

Transaxle, Dump Valves And Rear Wheels Parts Diagram

  • Title

1

Gravely 00498100

EZT, Left Hand Transaxle-Hydrogear (102, 104, 132)

Note: (102, 104, 132)

$943.99

$

Usually ships in 4-12 days

0

Gravely 00689100

EZT, Left Hand Transaxle-Hydrogear (100)

Note: (100)

$1002.99

$

Usually ships in 4-12 days

0

2

Gravely 00498200

EZT, Right Hand Transaxle-Hydrogear (102, 104, 132)

Note: (102, 104, 132)

$943.99

$

Usually ships in 4-12 days

0

Gravely 00689200

EZT, Right Hand Transaxle-Hydrogear (100)

Note: (100)

$1246.99

$

Usually ships in 4-12 days

0

3

Gravely 00604151

Weldment, Transaxle Support

$90.99

$

Usually ships in 4-12 days

0

4

Gravely 06545400

Nut 5/16-18 Flange Nyloc
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 00580700

Weldment, Dump Valve (RH)

Note: (RH)

$

$

Not available

6

Gravely 00580800

Weldment, Dump Valve (LH)

Note: (LH)

$

$

Not available

7

Gravely 00582051

Bracket, Dump Valve

$

$

Not available

8

Gravely 00581951

Bracket, Dump Valve/Clutch Stop (104, 132)

Note: (104, 132)

$41.99

$

Usually ships in 4-12 days

0

Gravely 00617651

Clutch Stop (100, 102)

Note: (100, 102)

$

$

Not available

9

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06535000

Nut, Locking Nylon .250-20
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07100123

Assembly, Tire Wheel 18 x 8.5-8 CTR (102, 104, 132)

Note: (102, 104, 132)

$125.99

$

Usually ships in 4-12 days

0

Gravely 07100310

Assembly, Tire/Wheel 18 x 6.5-8 CTR (100)

Note: (100)

$113.99

$

Usually ships in 4-12 days

0

12

Gravely 06535000

Nut, Lug .50-20
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 07026400

Cap, Vent .50

$14.99

$

In Stock, only 2 left!

0

14

Gravely 07026300

Fitting, Straight .50

$23.99

$

In Stock, only 2 left!

0

15

Gravely 01543100

Hose, Vent

$9.49

$

In Stock, only 2 left!

0

16

Gravely 06439500

Washer-Flat-Steel .265 x .50 x .087
(Superseded to 06401120)

$1.49

$

Usually ships in 4-12 days

0

17

Gravely 06701900

Pin-Hair-Internal .06 x .18 x .77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 8

0

18

Gravely 05960600

Bolt, Hex .31-18 x 2.75
(Superseded to 05901807)

$2.49

$

In Stock, only 2 left!

0

19

Gravely 06439100

Washer, Flat Steel .328 x .87 x .179
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

20

Gravely 05958400

Bolt, Hex .38-16 x 2.50 Grade 5
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

21

Gravely 06444000

Washer, Flat Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

22

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0
