915100 (ZT 1734) - Gravely 34" Zero-Turn Mower, 17hp Kohler (SN: 000102 & Above) Transaxle - Left Hand Parts Diagram

34" Zero-Turn Mower, 17hp Kohler

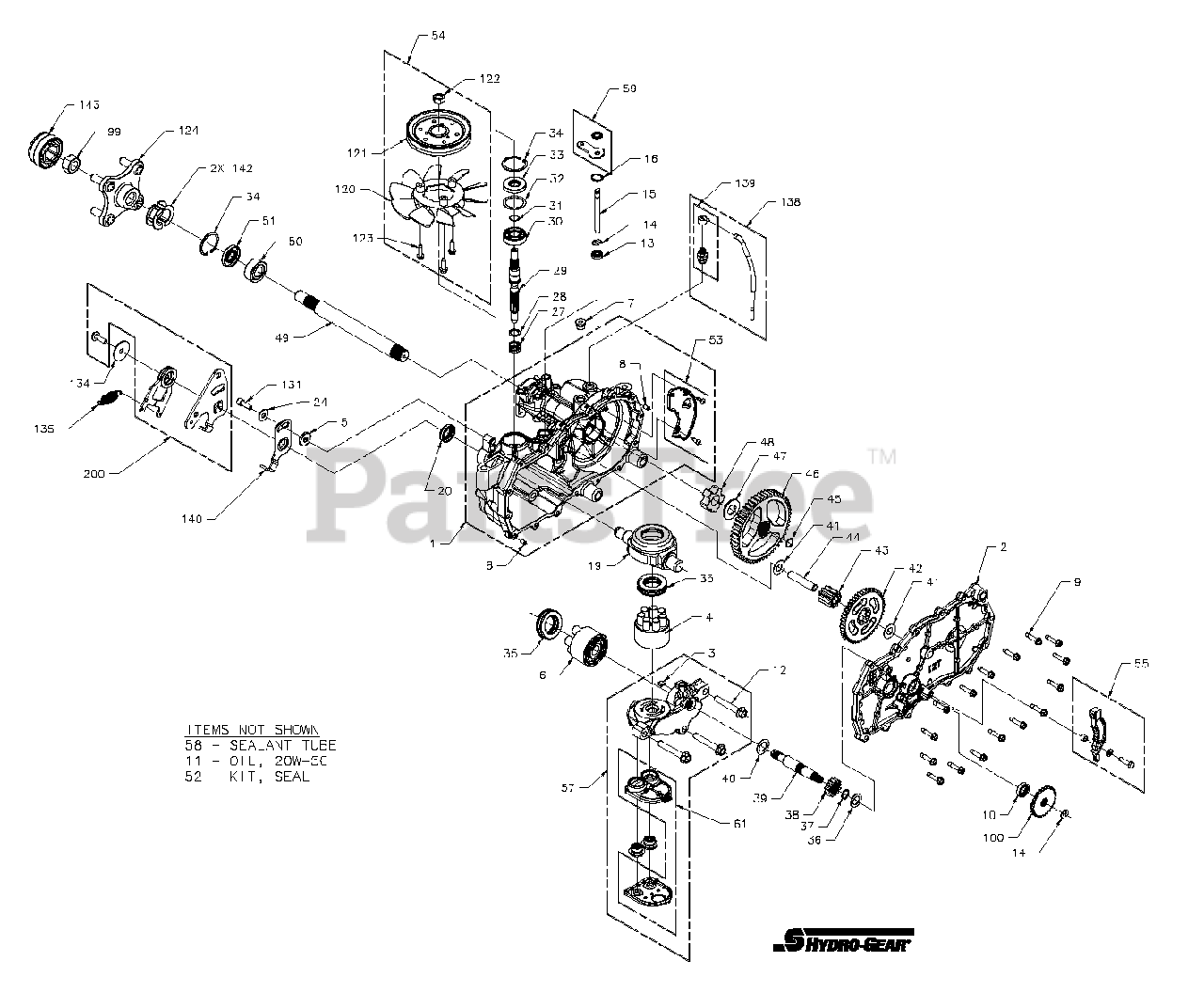

Transaxle - Left Hand Parts Diagram

  • Title

1

Gravely 21543985

ASSEMBLY, MAIN HOUSING - LH

$271.99

$

Usually ships in 4-12 days

0

2

ASSEMBLY, SIDE - LH

ASSEMBLY, SIDE - LH

$

$

Not available

3

PLATE, BYPASS

PLATE, BYPASS

$

$

Not available

4

Gravely 21543921

ASSEMBLY, PUMP BLOCK (7P-10CC)

Note: (7P-10CC)

$142.99

$

Usually ships in 4-12 days

0

5

SPACER, .320 X 1.005

SPACER, .320 X 1.005

$

$

Not available

6

Gravely 21543889

ASSEMBLY, MOTOR BLOCK (5P-10CC)

Note: (5P-10CC)

$101.99

$

Usually ships in 4-12 days

0

7

PLUG, SAE #6

PLUG, SAE #6

$

$

Not available

8

PIN, STAINLESS, HEADLESS

PIN, STAINLESS, HEADLESS

$

$

Not available

9

HFHCS 1/4-20 X 1.25 (SELF-TAPPING)

HFHCS 1/4-20 X 1.25 (SELF-TAPPING)

Note: (SELF-TAPPING)

$

$

Not available

10

Gravely 21543920

KIT, BRAKE SEAL

$

$

Not available

11

OIL, 20W-50

OIL, 20W-50

$

$

Not available

12

BOLT, HEX FLANGE 3/8-24 X 2.5

BOLT, HEX FLANGE 3/8-24 X 2.5

$

$

Not available

13

Gravely 21543845

SEAL, LIP .375 X .75 X .25

$9.49

$

Usually ships in 4-12 days

0

14

Gravely 21543845

RING, RETAINING .375 EXT

$9.49

$

Usually ships in 4-12 days

0

15

ROD, BYPASS

ROD, BYPASS

$

$

Not available

16

RING, RETAINING .750 INT

RING, RETAINING .750 INT

$

$

Not available

19

Gravely 21543783

SWASHPLATE, TRUNNION, MACHINED

$70.99

$

Usually ships in 4-12 days

0

20

Gravely 21543809

SEAL, LIP 18 X 32 X 7

$9.49

$

Usually ships in 4-12 days

0

24

WASHER, FLAT 11/32 ID X 7/8 OD X 1/16

WASHER, FLAT 11/32 ID X 7/8 OD X 1/16

$

$

Not available

27

SPRING HELICAL COMPRESSION

SPRING HELICAL COMPRESSION

$

$

Not available

28

Gravely 08609400

WASHER .591 X .787 X .040

$1.99

$

In Stock, only 1 left!

0

29

Gravely 21543785

SHAFT, INPUT

$96.99

$

Usually ships in 4-12 days

0

30

Gravely 21543738

BEARING, BALL 17MM ID X 40 MM OD X 12 MM

$19.99

$

Usually ships in 4-12 days

0

31

RING, RETAINING WIRE .561 ID

RING, RETAINING WIRE .561 ID

$

$

Not available

32

SPACER

SPACER

$

$

Not available

33

Gravely 21543816

SEDAL, LIP 17 X 40 X 7

$14.99

$

Usually ships in 4-12 days

0

34

Gravely 21543741

RING, RETAINING

$6.99

$

Usually ships in 4-12 days

0

35

Gravely 08609100

BEARING, THRUST 30 X 52 X 13

$17.99

$

Usually ships in 4-12 days

0

36

WASHER, FLAT 5/8 ID X 1.0 OD X .05

WASHER, FLAT 5/8 ID X 1.0 OD X .05

$

$

Not available

37

RING, RETAINING

RING, RETAINING

$

$

Not available

38

GEAR, PINION, 13 T

GEAR, PINION, 13 T

$

$

Not available

39

SHAFT, MOTOR

SHAFT, MOTOR

$

$

Not available

40

WAHSER, MOTOR SHAFT .71 ID X 1.16 OD X .04

WAHSER, MOTOR SHAFT .71 ID X 1.16 OD X .04

$

$

Not available

41

Gravely 21543724

WASHER HT .5 ID X 1.0 OD X .032

$

$

Not available

42

GEAR, 10T/48T

GEAR, 10T/48T

$

$

Not available

43

GEAR, 10T JACKSHAFT

GEAR, 10T JACKSHAFT

$

$

Not available

44

PIN, JACKSHAFT

PIN, JACKSHAFT

$

$

Not available

45

Gravely 21543710

RING, SPIRAL RETAINING

$2.49

$

Usually ships in 4-12 days

0

46

GEAR, 52T BULL

GEAR, 52T BULL

$

$

Not available

47

WASHER 3/4 ID X 1 1/2 OD X .13

WASHER 3/4 ID X 1 1/2 OD X .13

$

$

Not available

48

BEARING, SLEEVE (INBOARD)

BEARING, SLEEVE (INBOARD)

Note: (INBOARD)

$

$

Not available

49

SHAFT, AXLE

SHAFT, AXLE

$

$

Not available

50

Gravely 21543795

BUSHING, AXLE

$

$

Not available

51

Gravely 21543787

SEAL, LIP .75 X 1.5

$4.99

$

Usually ships in 4-12 days

0

52

Gravely 21543935

KIT, SEAL

$80.99

$

In Stock, only 1 left!

0

53

KIT, EXPANSION PLATE, LH

KIT, EXPANSION PLATE, LH

$

$

Not available

54

KIT, FAN PULLEY

KIT, FAN PULLEY

$

$

Not available

55

Gravely 00951000

KIT, BRAKE ARM
(Superseded to 51517600)

$28.99

$

In Stock, only 3 left!

0

57

KIT CENTER SECTION - FILTER LH 7P

KIT CENTER SECTION - FILTER LH 7P

$

$

Not available

58

Gravely 21543771

SEALANT TUBE, 10.3 OZ

$116.99

$

In Stock, only 1 left!

0

59

KIT, BYPASS ARM

KIT, BYPASS ARM

$

$

Not available

61

KIT, FILTER

KIT, FILTER

$

$

Not available

99

Gravely 08621100

NUT, HEX 3/4-16

$7.49

$

Usually ships in 4-12 days

0

100

Gravely 21543851

DISC, COG BRAKE

$21.99

$

In Stock, only 1 left!

0

120

FAN, 7" 10 BLADE

FAN, 7" 10 BLADE

$

$

Not available

121

Gravely 21543736

PULLEY 4/5 X 1.625

$80.99

$

Usually ships in 4-12 days

0

122

HEX LOCK NUT, 1/2-20

HEX LOCK NUT, 1/2-20

$

$

Not available

123

HFHCS 1/4-20 X .875

HFHCS 1/4-20 X .875

$

$

Not available

124

Gravely 21543888

KIT, HUB 1/2-20

$163.99

$

Usually ships in 4-12 days

0

131

SHCS 5/16-24 X 1.00 (PATCH)

SHCS 5/16-24 X 1.00 (PATCH)

Note: (PATCH)

$

$

Not available

134

Gravely 21543871

WASHER 1.5 X .34 X .062

$6.49

$

Usually ships in 4-12 days

0

135

Gravely 21543876

SPRING, EXTENSION

$4.99

$

In Stock, only 2 left!

0

138

KIT, BREATHER ASSEMBLY

KIT, BREATHER ASSEMBLY

$

$

Not available

139

KIT, BREATHER

KIT, BREATHER

$

$

Not available

140

ARM, NEUTRAL - LH

ARM, NEUTRAL - LH

$

$

Not available

142

TUBE, AXLE .72, SPLIT

TUBE, AXLE .72, SPLIT

$

$

Not available

143

CAP, AXLE

CAP, AXLE

$

$

Not available

200

KIT, RTN ASSEMBLY, LH

KIT, RTN ASSEMBLY, LH

$

$

Not available
