915100 (ZT 1734) - Gravely 34" Zero-Turn Mower, 17hp Kohler (SN: 000102 & Above) Anti Scalp Wheels Parts Diagram

34" Zero-Turn Mower, 17hp Kohler

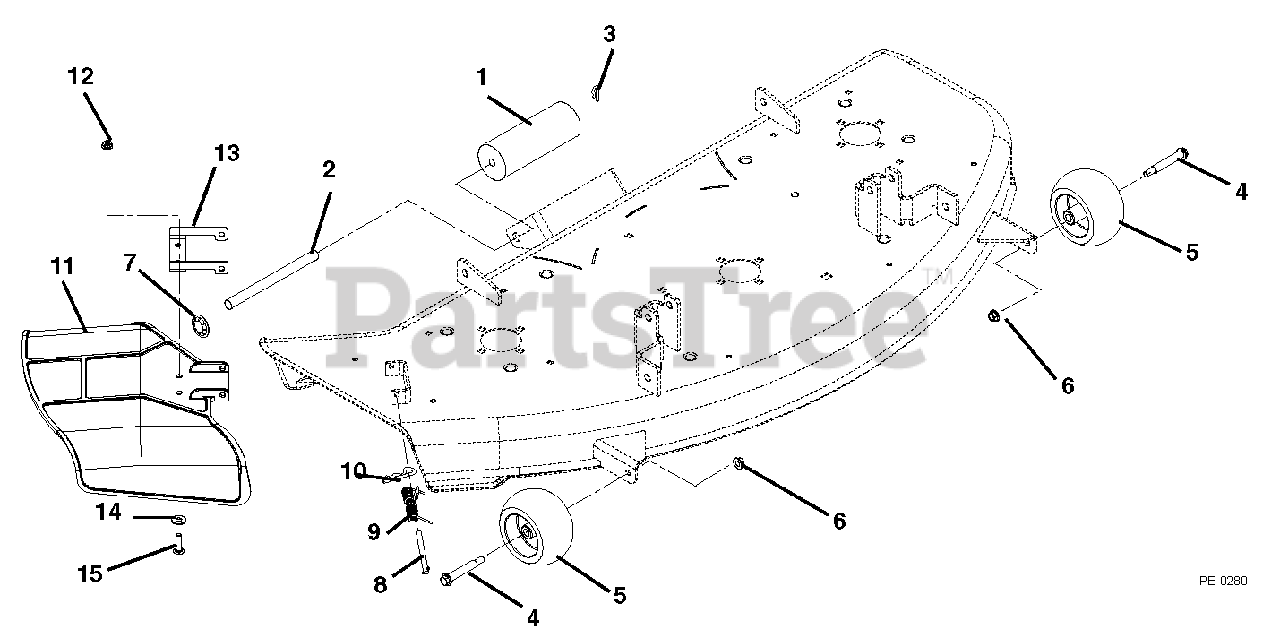

Anti Scalp Wheels Parts Diagram

  • Title

1

Gravely 03114100

Roller (104, 132)

Note: (104, 132)

$22.99

$

In Stock, Qty 20+

0

2

Gravely 00356500

Pin, Roller (104, 132)

Note: (104, 132)

$34.99

$

Usually ships in 4-12 days

0

3

Gravely 06714500

Pin, Spring Clip (104, 132)

Note: (104, 132)

$2.49

$

In Stock, Qty 20+

0

4

Gravely 07056800

Bolt, Shoulder .38-16 x 2.50 Hex Washer Head Grade 5

$6.99

$

In Stock, Qty 20+

0

5

Gravely 03471700

Wheel 5 x 3
(Superseded to 03905600)

$15.99

$

In Stock, Qty 20+

0

6

Gravely 06542000

Nut, Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07000035

Push Nut, .625 Shaft (104, 132)

Note: (104, 132)

$2.49

$

In Stock, only 3 left!

0

8

Gravely 06800002

Clevis Pin

$9.49

$

Usually ships in 4-12 days

0

9

Gravely 01259100

Spring, Torsion

$

$

Not available

10

Gravely 06713500

Pin, Hair .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 00499900

Plastic Chute
(Superseded to 03994300)

$54.99

$

In Stock, only 1 left!

0

12

Gravely 06543100

Nut, Locking, Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 00662653

Chute Reinforcement

$

$

Not available

14

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 05920900

Screw, Socket Head, Button Head .31-18 x .75

$3.99

$

In Stock, only 2 left!

0
