915099 (ZT 1634) - Gravely 34" Zero-Turn Mower, 16hp Kohler (SN: 000101 & Above) Frame, Footrest, Casters, Tires Parts Diagram

34" Zero-Turn Mower, 16hp Kohler

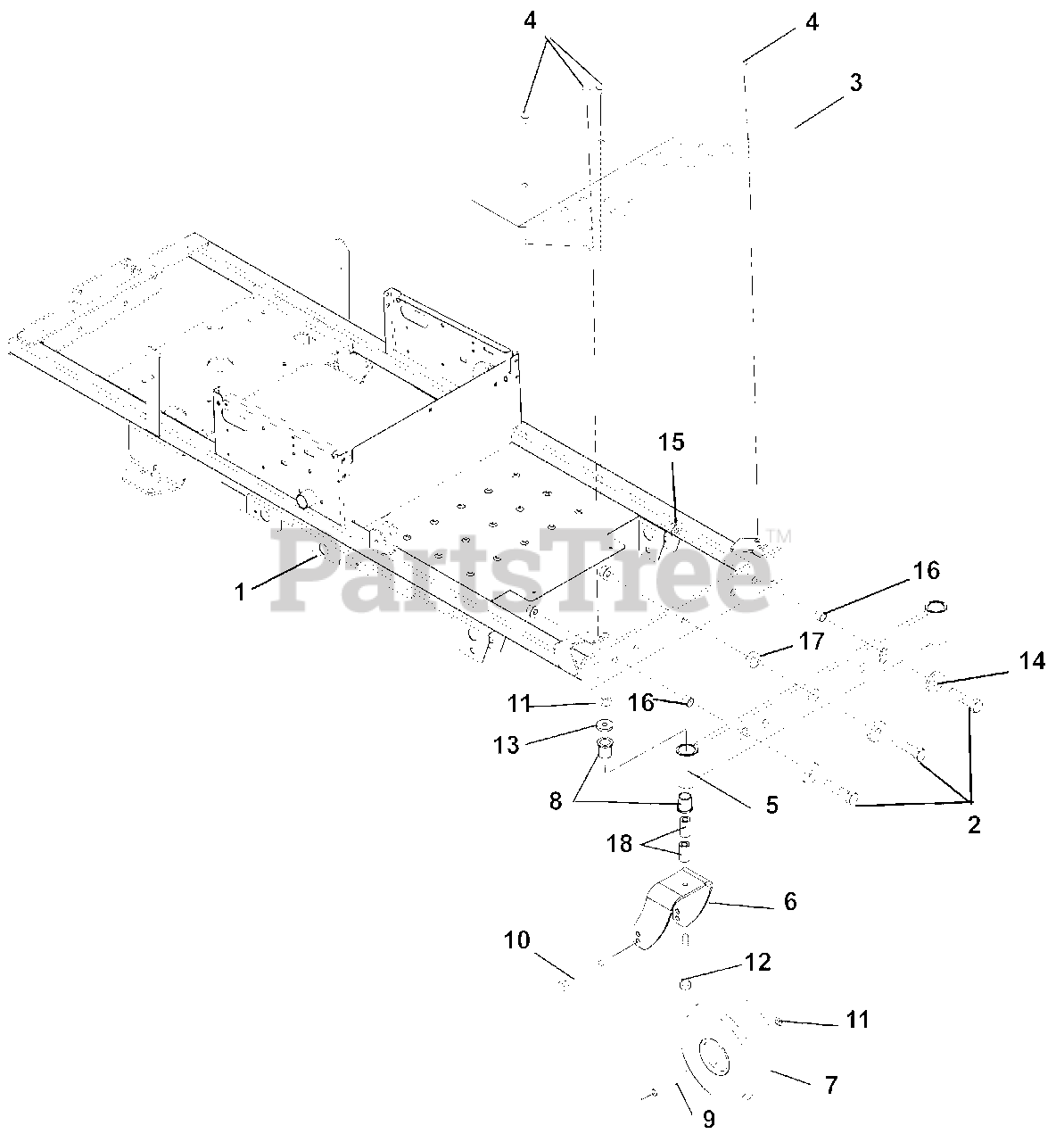

Frame, Footrest, Casters, Tires Parts Diagram

  • Title

1

Gravely 00600951

Weldment, Frame

$

$

Not available

2

Gravely 05930700

Bolt, Hex .62-11 x 2.25 Grade 8

$3.99

$

In Stock, only 1 left!

0

3

Gravely 00460553

Footrest, MZ

$

$

Not available

4

Gravely 07411500

Screw, Tapping .31-18 x .50
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 00475651

Weldment, Front Axle

$193.99

$

Usually ships in 4-12 days

0

6

Gravely 00469351

Fork, Caster
(Superseded to 03368551)

$72.99

$

In Stock, Qty 11

0

7

Gravely 07100124

Wheel/Tire Assembly, 11.0 x 4.0 x 5.0, Monitor

$75.99

$

In Stock, Qty 20+

0

8

Gravely 05533600

Bushing, Flange 1.00 x 1.25 x 1.50 x 1.50
(Superseded to 05500934)

$6.99

$

In Stock, Qty 20+

0

9

Gravely 00278500

Spacer, Wheel

$14.99

$

In Stock, Qty 20+

0

10

Gravely 05964400

Bolt, Hex .50-13 x 6.50 Grade 5
(Superseded to 05901907)

$7.99

$

In Stock, only 3 left!

0

11

Gravely 06500010

Nut, .50-13 Nyloc Flange
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05962200

Bolt, Hex .50-13 x 5.00 Grade 5
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

13

Gravely 06436400

Washer, Flat Steel .511 x 1.441 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

14

Gravely 06435200

Washer, Flat .640 x 1.81 x .250
(Superseded to 06400829)

$3.99

$

In Stock, only 2 left!

0

15

Gravely 06500019

Nut, Nyloc Flange .62-11
(Superseded to 06500833)

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 00271800

Spacer, .750 D x .558 Long

$17.99

$

In Stock, only 1 left!

0

17

Gravely 01600400

Bushing, Axle Pivot

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 00363100

Spacer, Caster Fork

$6.99

$

In Stock, Qty 11

0
