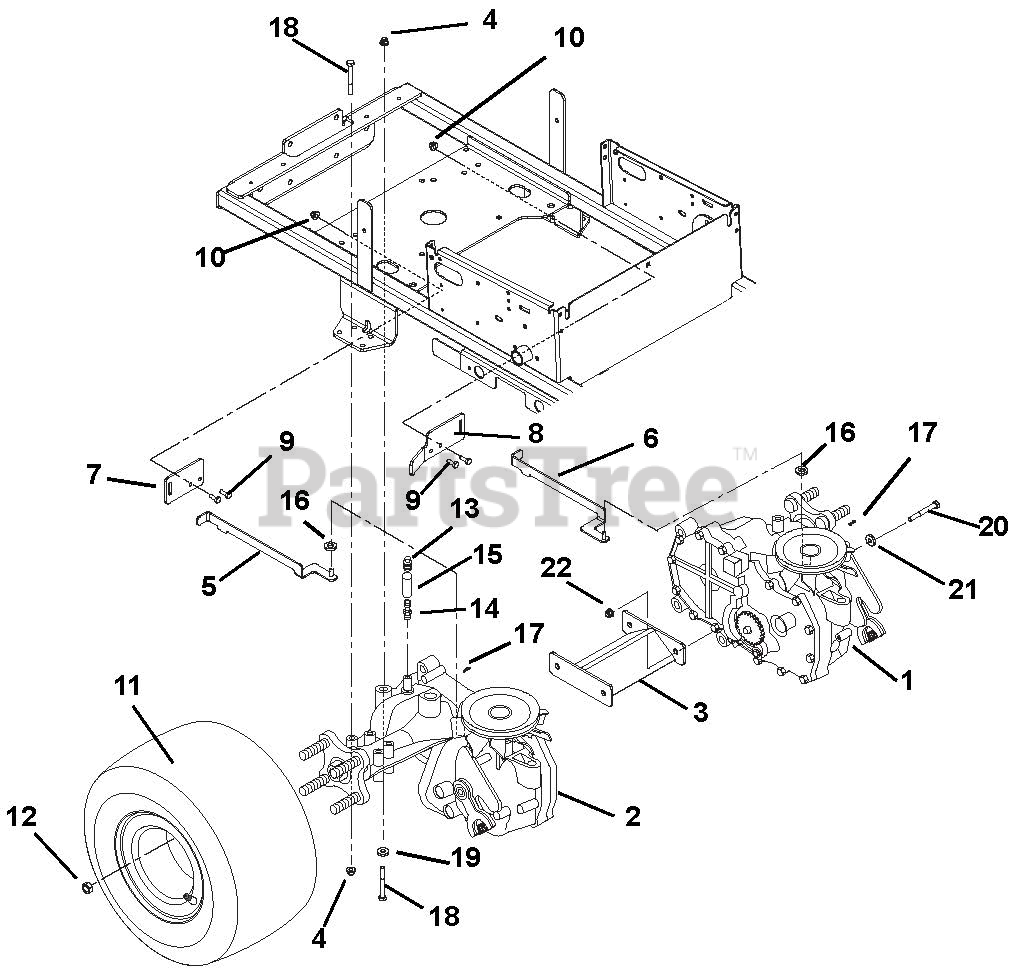

915095 (2250) - Ariens Zoom 50" Zero-Turn Mower, 22hp Kohler (SN: 000101 & Above) Transaxle, Dump Valves And Rear Wheels Parts Diagram

Zoom 50" Zero-Turn Mower, 22hp Kohler

Transaxle, Dump Valves And Rear Wheels Parts Diagram

  • Title
1

Ariens 00498100

EZT, LH TRANSAXLE (ZOOM)

Note: (For service please contact Hydro-Gear)

$943.99

$

Usually ships in 4-12 days

0

2

Ariens 00498200

EZT, RH TRANSAXLE (ZOOM)

Note: (For service please contact Hydro-Gear)

$943.99

$

Usually ships in 4-12 days

0

3

Ariens 00604151

WMT, TRANSAXLE SUPPORT

$90.99

$

Usually ships in 4-12 days

0

4

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 00580700

WMT, DUMP VALVE (ZOOM-RH)

$

$

Not available

6

Ariens 00580800

WMT, DUMP VALVE (ZOOM-LH)

$

$

Not available

7

Ariens 00582051

BRACKET, DUMP VALVE

$

$

Not available

8

Ariens 00581951

BRKT,DUMP VALVE/CLUTCH STOP

$41.99

$

Usually ships in 4-12 days

0

9

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06535000

NUT-LUG .50-20 YWZC
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 07100233

TIRE/WHEEL ASSY, 18X9.50-8 OFF

$170.99

$

In Stock, only 2 left!

0

12

Ariens 06535000

NUT-LUG .50-20 YWZC
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 07026400

CAP-VENT .50

$14.99

$

In Stock, only 2 left!

0

14

Ariens 07026300

FTG-STR .50 O-RING

$23.99

$

In Stock, only 2 left!

0

15

Ariens 01543100

HOSE - VENT

$9.49

$

In Stock, only 2 left!

0

16

Ariens 06439500

WSHR-FL-STL .265X.50X.087YWZC
(Superseded to 06401120)

$1.49

$

Usually ships in 4-12 days

0

17

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 13

0

18

Ariens 05960600

@BLT-HEX .31-18X2.75 GR5 YWZC
(Superseded to 05901807)

$2.49

$

In Stock, only 2 left!

0

19

Ariens 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

20

Ariens 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

21

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

22

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0
