915094 (ZT 2350) - Gravely 50" Zero-Turn Mower, 23hp Kohler (SN: 000101 & Above) Seat, Seat Support Parts Diagram

50" Zero-Turn Mower, 23hp Kohler

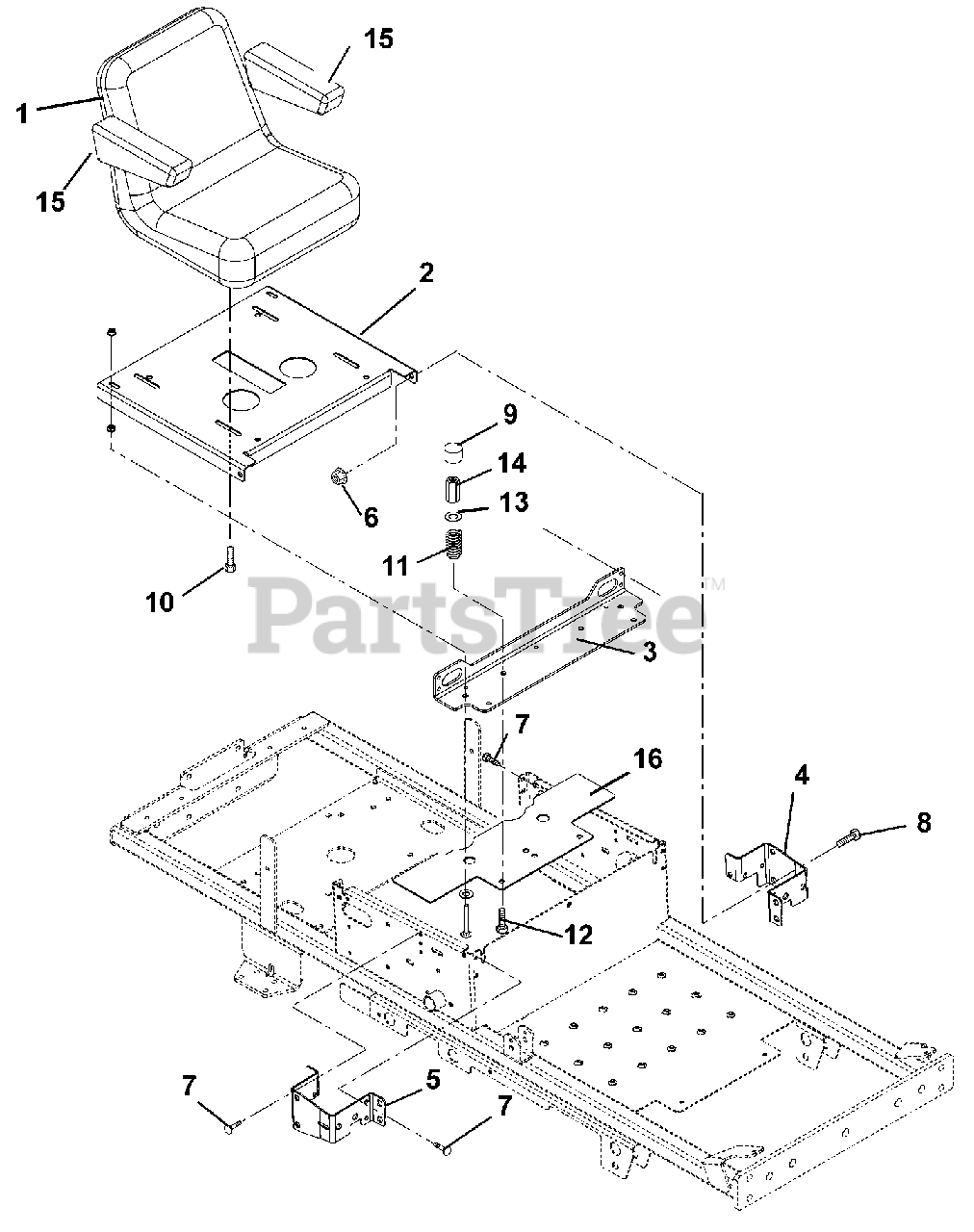

Seat, Seat Support Parts Diagram

  • Title

1

Gravely 00366300

Seat with Arm

$

$

Not available

2

Gravely 03369351

Seat Plate

$

$

Not available

3

Gravely 00478351

Bracket, Seat Spring

$

$

Not available

4

Gravely 00503300

Bracket, RH Steering Stop

$

$

Not available

5

Gravely 00503400

Bracket, LH Steering Stop

$

$

Not available

6

Gravely 06542000

Nut, Locking Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07411500

Screw, Tapping .31-18 x .50
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 07056700

Bolt, Shoulder .375-16 x 1.50

$3.99

$

In Stock, only 2 left!

0

9

Gravely 00337700

Hub Cap

$2.99

$

In Stock, Qty 20+

0

10

Gravely 05900033

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 07001820)

$

$

Not available

11

Gravely 08300021

Spring, Seat

$20.99

$

Usually ships in 4-12 days

0

12

Gravely 06212100

Bolt, Round Head Square Neck .31-18 x 1.50 Grade 5
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0

13

Gravely 06439100

Washer-Flat-Steel .328 x .87 x .179
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

14

Gravely 06500015

Nut, Coupling 5/16-18 x 1 .75
(Superseded to 06500927)

$3.99

$

In Stock, only 1 left!

0

15

Gravely 59204500

Arm Rest

$

$

Not available

16

Gravely 00676551

Guard, Finger

$

$

Not available
