915094 (ZT 2350) - Gravely 50" Zero-Turn Mower, 23hp Kohler (SN: 000101 & Above) Deck Lift Parts Diagram

50" Zero-Turn Mower, 23hp Kohler

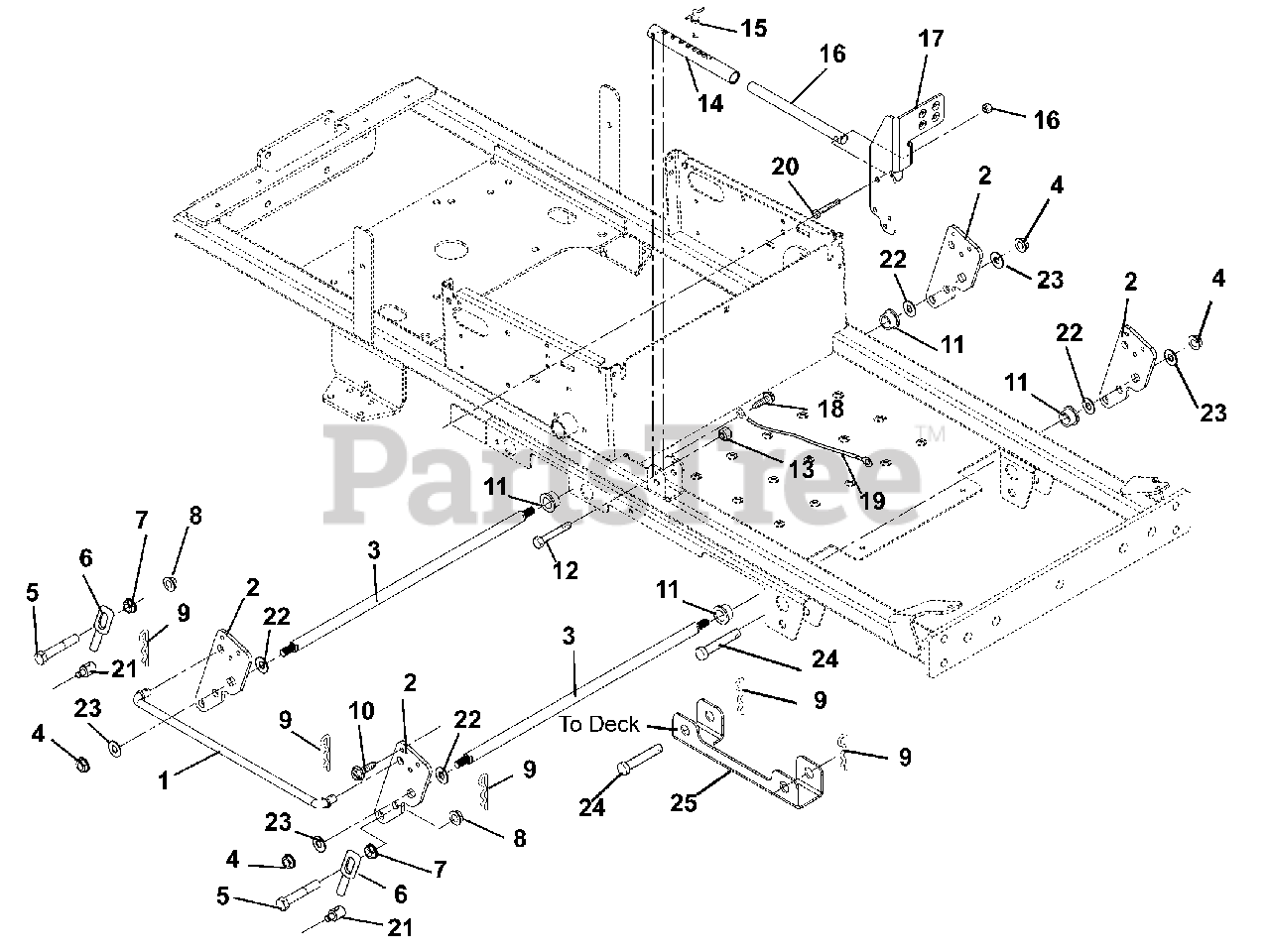

Deck Lift Parts Diagram

  • Title
1

Gravely 00279900

Rod, Lift

$

$

Not available

2

Gravely 00279800

Lift Arm

$38.99

$

Usually ships in 4-12 days

0

3

Gravely 00502600

Shaft, Lift

$

$

Not available

4

Gravely 06500400

Nut, Hex .250-28

$1.99

$

Usually ships in 4-12 days

0

5

Gravely 05953500

Bolt, Hex .50-13 x 2.75 Grade 8
(Superseded to 05901836)

$3.49

$

Usually ships in 4-12 days

0

6

Gravely 00160000

Deck Link
(Superseded to 03967600)

$34.99

$

In Stock, only 3 left!

0

7

Gravely 06543300

Nut, Spin Lock Flange .50-13
(Superseded to 06500928)

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 06500010

Nut .50-13 Nyloc Flange
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06714900

Pin, Hair #16

$0.99

$

In Stock, Qty 20+

0

10

Gravely 07411500

Screw, Tap .31-18 x .50
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05503900

Bushing, Flange .750 x 1.000 x .625 x 1.250

$12.99

$

In Stock, Qty 6

0

12

Gravely 05963300

Bolt, Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, Qty 6

0

13

Gravely 06545500

Nut, Flange Nyloc 3/8-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 00347800

Tube, Lift Stop

$

$

Not available

15

Gravely 01593500

Pin, Spring Ball .375OD x 1.50

$5.99

$

Usually ships in 4-12 days

0

16

Gravely 00347700

Rod, Lift

$45.99

$

Usually ships in 4-12 days

0

17

Gravely 00279551

Pedal, Foot Lift

$20.99

$

Usually ships in 4-12 days

0

18

Gravely 07412000

Screw, Tap .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06927100

Cable, Hood

$14.99

$

In Stock, only 1 left!

0

20

Gravely 05958400

Bolt, Hex .38-16 x 2.50 Grade 5
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

21

Gravely 01590400

Trunnion

$48.99

$

In Stock, only 4 left!

0

22

Gravely 06441500

Washer, Flat Steel .755 x 1.375 x .062
(Superseded to 06401016)

$3.99

$

In Stock, Qty 13

0

23

Gravely 06445000

Washer, Flat-Steel .515 x 1.625 x .250

$5.99

$

In Stock, only 3 left!

0

24

Gravely 06810700

Pin-Clevis .494 x 2.50

$3.99

$

In Stock, only 1 left!

0

25

Gravely 00484700

Channel, Deck Lift
(Superseded to 00484751)

$34.99

$

In Stock, only 1 left!

0
