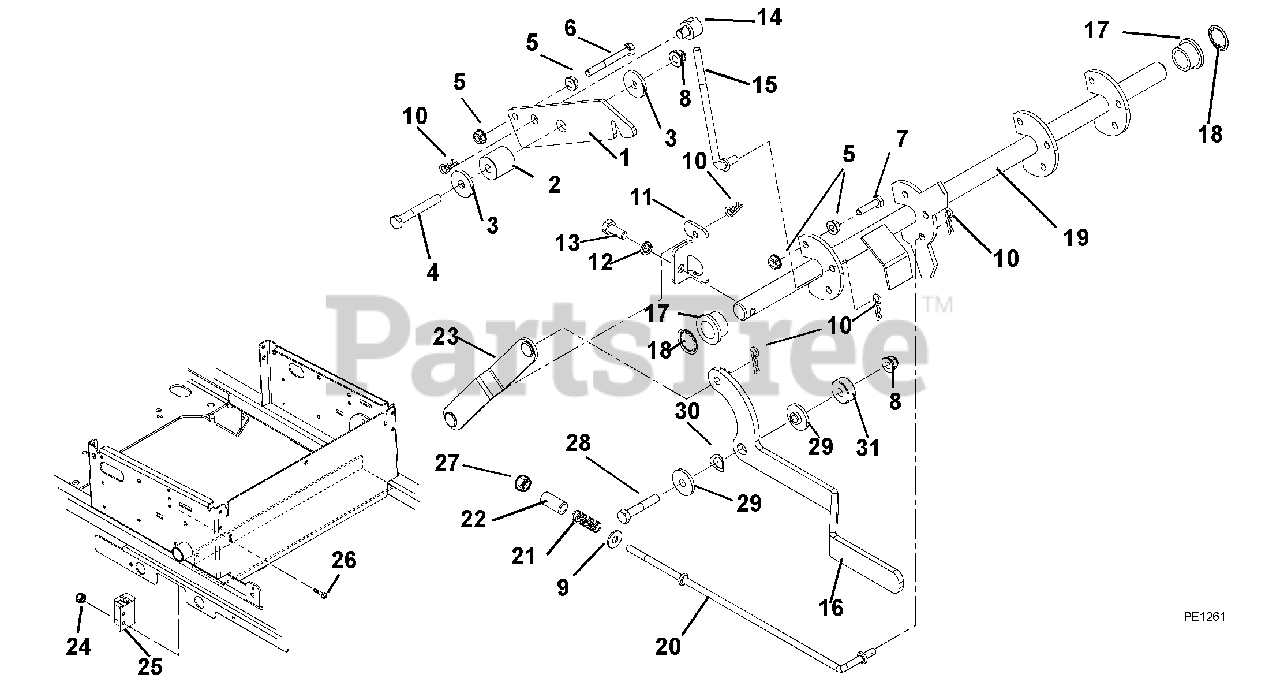

915092 (ZT XL 1634) - Gravely 34" Zero-Turn Mower, 16hp Kohler (SN: 000101 & Above) Parking Brake Parts Diagram

34" Zero-Turn Mower, 16hp Kohler

Parking Brake Parts Diagram

  • Title

1

Gravely 00476251

Latch, Neutral
(Superseded to 00476200)

$34.99

$

Usually ships in 4-12 days

0

2

Gravely 00476300

Spacer

$16.99

$

Usually ships in 4-12 days

0

3

Gravely 06446300

Washer, Flat Steel .344 x 1.125 x .135
(Superseded to 06401104)

$3.99

$

In Stock, only 3 left!

0

4

Gravely 05963700

Bolt, Hex .31-18 x 2.25 Grade 5
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06530100

Nut, Locking Flange .250-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 05956700

Bolt, Hex .25-20 x 2.25 Grade 5
(Superseded to 05901636)

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 05947700

Bolt, Hex .25-20 x 1.00 Grade 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

8

Gravely 06545400

Nut, Flange Nyloc .31-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06435800

Washer, Flat Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06713500

Pin, Hair Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 00872051

Crank, Parking Brake

$

$

Not available

12

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 01596400

Trunnion, Brake

$51.99

$

Usually ships in 4-12 days

0

15

Gravely 00349800

Brake, Link

$

$

Not available

16

Gravely 00672251

Handle, Parking Brake

$

$

Not available

17

Gravely 05503900

Bushing, Flanged .750 x 1.000 x .625 x 1.250

$12.99

$

In Stock, Qty 6

0

18

Gravely 07000036

Push Nut, .745 Shaft

$

$

Not available

19

Gravely 00951600

Weldment, Brake Shaft

$

$

Not available

20

Gravely 00349700

Link, Brake
(Superseded to 00667200)

$24.99

$

Usually ships in 4-12 days

0

21

Gravely 08300028

Spring, Compression

$4.99

$

In Stock, Qty 6

0

22

Gravely 00364900

Bushing

$6.49

$

In Stock, only 1 left!

0

23

Gravely 00478000

Link, Parking Brake

$58.99

$

Usually ships in 4-12 days

0

24

Gravely 06536000

Nut, Locking Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 03606600

Switch, Double Pole

$17.99

$

In Stock, only 1 left!

0

26

Gravely 06116900

Screw, Machine 10-24 x .75
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

27

Gravely 06531000

Nut, Locking-Nylon .250-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

28

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

29

Gravely 05515400

Bushing, Flange .325 x .501 x .250 x 1.120

$3.99

$

In Stock, only 1 left!

0

30

Gravely 06400005

Washer, Wave .50 x .75 x .015 .13

$2.99

$

In Stock, only 2 left!

0

31

Gravely 06439100

Washer, Flat-Steel .38 x .87 x .179
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!
