915092 (ZT XL 1634) - Gravely 34" Zero-Turn Mower, 16hp Kohler (SN: 000101 & Above) Mower Deck, Belt, Idlers And Blades Parts Diagram

34" Zero-Turn Mower, 16hp Kohler

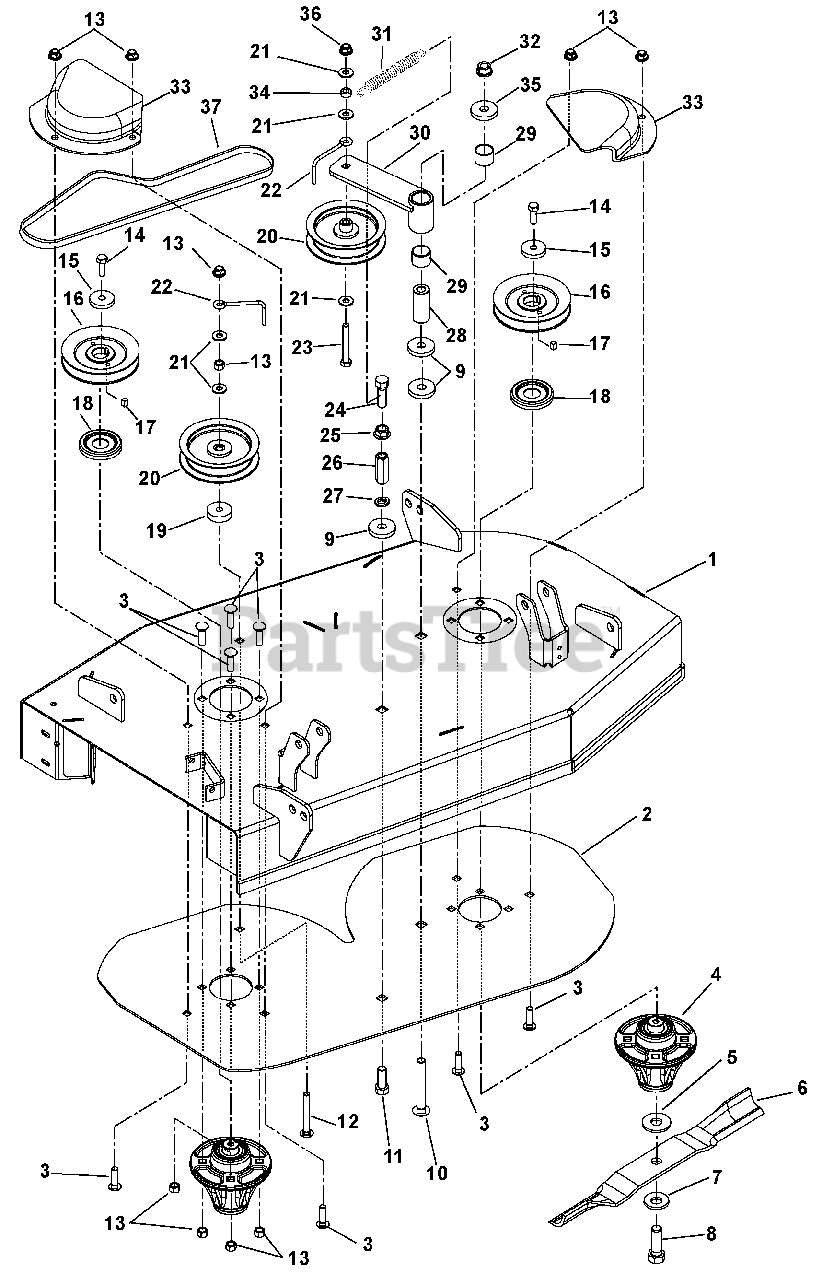

Mower Deck, Belt, Idlers And Blades Parts Diagram

  • Title

1

Gravely 00827651

Weldment, 34" Fabricated Deck

$

$

Not available

2

Gravely 00865551

Plate, 34" Doubler

$

$

Not available

3

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

4

Gravely 51510000

Spindle Assembly

$216.99

$

In Stock, Qty 12

0

5

Gravely 06442900

Washer, Flat - Steel .688 x 1.75 x .134
(Superseded to 06401032)

$1.49

$

In Stock, Qty 5

0

6

Gravely 08861600

Blade

$23.99

$

In Stock, Qty 20+

0

7

Gravely 06445700

Washer, Flat - Steel .63 x 1.625 x .14

$4.99

$

In Stock, only 3 left!

0

8

Gravely 05978900

Bolt, Hex .62-18 x 1.75 Grade 8
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

9

Gravely 06445000

Washer, Flat - Steel .515 x 1.625 x .250

$5.99

$

In Stock, only 3 left!

0

10

Gravely 06225000

Bolt, Round Head, Square Neck .50-13 x 3.50 Grade 5
(Superseded to 06200317)

$5.99

$

In Stock, Qty 20+

0

11

Gravely 06224700

Bolt, Round Head Square Neck .50-13 x 1.25 Grade 5
(Superseded to 06200325)

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 06225400

Bolt, Round Head Square Neck .38-16 x 2.75 Grade 5 Full-Length Thread
(Superseded to 06200316)

$3.99

$

In Stock, only 1 left!

0

13

Gravely 06545500

Nut, 038-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05900013

Bolt, Hex .38-16 x 1.00 EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06400006

Washer, Flat - Steel .406 x 1.50 x .245
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

16

Gravely 01610300

Sheave, 4.75 Diameter A-Section
(Superseded to 07330267)

$52.99

$

In Stock, only 1 left!

0

17

Gravely 06611100

Key, Square .25 x .38

$1.49

$

In Stock, Qty 20+

0

18

Gravely 00587400

Dust Cap

$7.99

$

In Stock, only 3 left!

0

19

Gravely 01594000

Spacer, .39 x 1.50 x .380

$3.99

$

In Stock, only 1 left!

0

20

Gravely 07300006

Idler, Flat .38 x 4.00 x 1.06
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

21

Gravely 06435700

Washer, Flat - Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 00391900

Belt Finger

$20.99

$

In Stock, only 2 left!

0

23

Gravely 05962900

Bolt, Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

24

Gravely 05962000

Bolt, Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

25

Gravely 06543300

Nut, Spin Lock, Flange .50-13
(Superseded to 06500928)

$3.99

$

Usually ships in 4-12 days

0

26

Gravely 06500013

Nut, Coupling .50 x 1.75

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 06307300

Washer, Locking .50 x .125 Regular
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

28

Gravely 01581700

Bushing, Spacer .505/.500 x .999/.996 x 2.05 x 2.03

$5.99

$

In Stock, Qty 20+

0

29

Gravely 05435800

Bearing, 1.00 x 1.12 x .75

$9.49

$

In Stock, Qty 6

0

30

Gravely 00652600

Idler Arm

$46.99

$

In Stock, only 1 left!

0

31

Gravely 08300020

Spring, Extension

$26.99

$

In Stock, only 2 left!

0

32

Gravely 06543600

Nut, Locking, Top - Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 00387800

Belt Cover

$43.99

$

Usually ships in 4-12 days

0

34

Gravely 05508900

Bushing, Sleeve .377 x .624 x .235

$9.49

$

In Stock, only 1 left!

0

35

Gravely 06442000

Washer, Flat-Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

36

Gravely 06529600

Nut, Locking Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 07200015

Belt, HA 97.00 Wrapped

$71.99

$

In Stock, only 1 left!

0
