915092 (ZT XL 1634) - Gravely 34" Zero-Turn Mower, 16hp Kohler (SN: 000101 & Above) Fuel Tank Parts Diagram

34" Zero-Turn Mower, 16hp Kohler

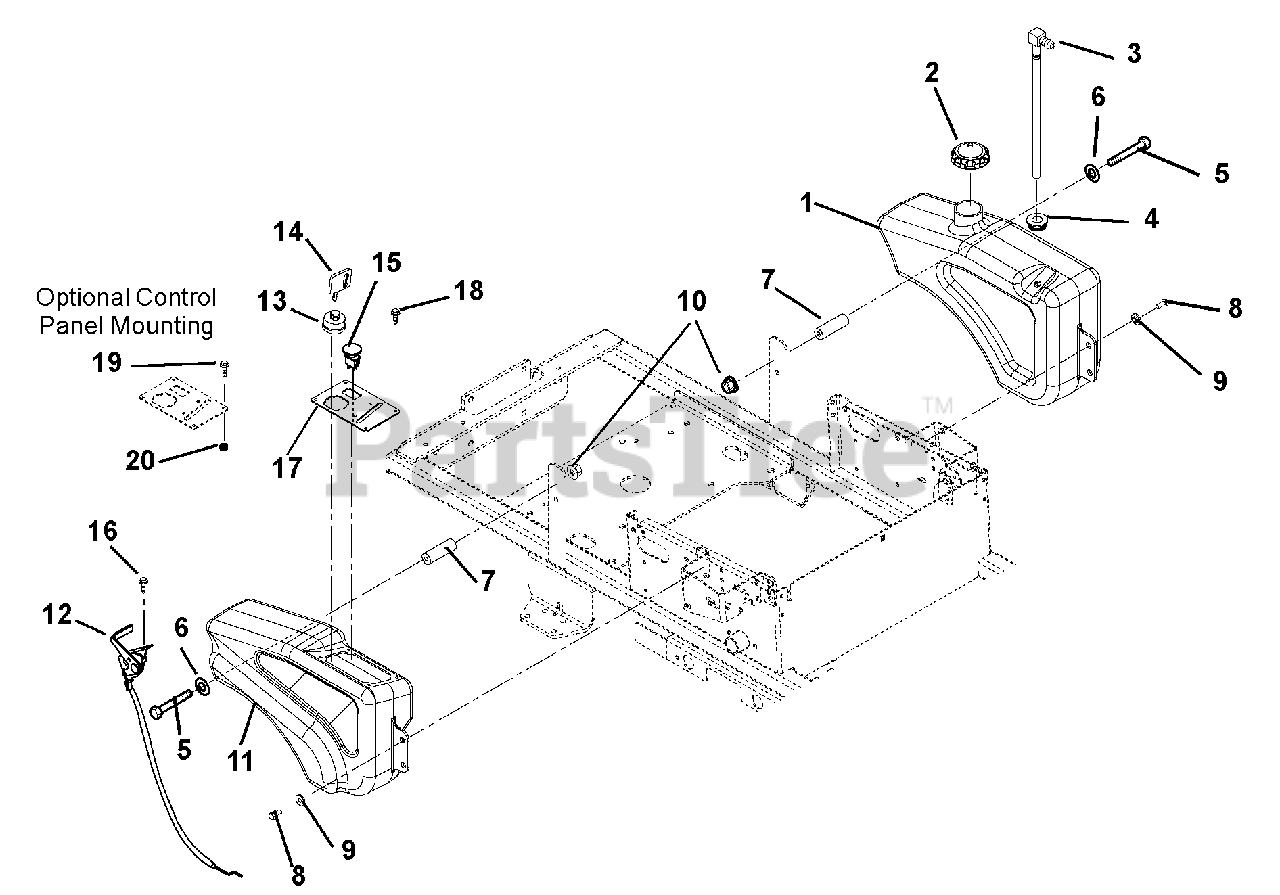

Fuel Tank Parts Diagram

  • Title

1

Gravely 00479500

Gas Tank

$

$

Not available

2

Gravely 01538400

Fuel Cap

$15.99

$

In Stock, only 1 left!

0

3

Gravely 09112300

Fitting, Tank
(Superseded to 03875300)

$14.99

$

In Stock, only 4 left!

0

4

Gravely 07511400

Bushing, Flange .375 x 1.062 x .625

$3.49

$

In Stock, Qty 20+

0

5

Gravely 05948000

Bolt, Hex .31-18 x 3.50 Grade 5

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 06435700

Washer, Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 00480900

Spacer, Tank Mount

$20.99

$

In Stock, only 1 left!

0

8

Gravely 07414400

Screw, Tapping .31-18 x .75 Hex Washer Head Rolling (Lubricated or Waxed)
(Superseded to 07400127)

Note: (Lubricated or Waxed)

$1.49

$

In Stock, Qty 8

0

9

Gravely 01305900

Shoulder Spacer

$2.49

$

In Stock, only 2 left!

0

10

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 00479600

Fender

$

$

Not available

12

Gravely 00619600

Throttle/Choke Cable, 40"

$62.99

$

In Stock, Qty 5

0

13

Gravely 01588300

Key Switch

$31.99

$

In Stock, only 1 left!

0

14

Gravely 02460700

Key, With Cap

$10.99

$

In Stock, Qty 20+

0

15

Gravely 01545600

Switch, Clutch

$26.99

$

In Stock, Qty 20+

0

16

Gravely 07415800

Screw, Tapping 10-24 x .50 Hex Washer Head Thread Rolling
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0

17

Gravely 00603651

Control Panel

$

$

Not available

18

Gravely 06830000

Rivet, Plastic .195 Diameter

$2.49

$

In Stock, Qty 20+

0

19

Gravely 06226900

Screw, Machine 10-24 x .75 Hex Washer Head (Optional)
(Superseded to 06224400)

Note: (Optional)

$3.99

$

In Stock, Qty 17

0

20

Gravely 06536000

Nut, Locking Nylon 10-24 With Insert (Optional)
(Superseded to 06500915)

Note: (Optional)

$0.99

$

In Stock, Qty 20+

0
